Onkyo TX-SV535 Instruction Manual

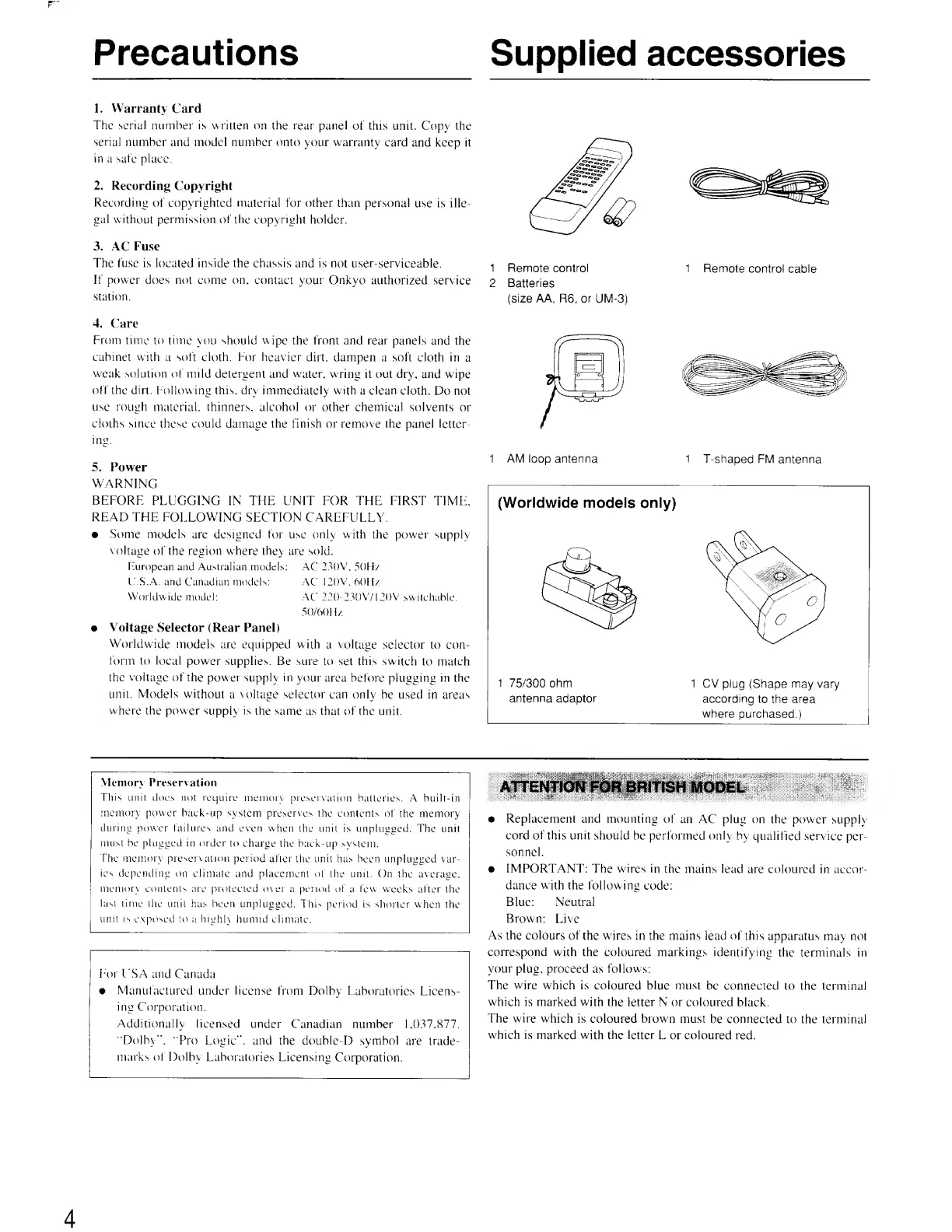

Precautions
Supplied accessories
1. Warranty Card
The serial number is written on the rear panel of this unit. Copy the
serial number and model number onto your warranty card and keep it
in a safe place.
2. Recording Copyright
Recording of copyrighted material for other than personal use is ille¬
gal without permission of the copyright holder.
3. AC Fuse
The fuse is located inside the chassis and is not user-serviceable.
If power does not come on. contact your Onkyo authorized service
station.
1 Remote control
2 Batteries
(size AA, R6, or UM-3)
1 Remote control cable
4. Care
From time to time you should wipe the front and rear panels and the
cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a
weak solution of mild detergent and water, wring it out dry, and wipe
off the dirt, hollowing this, dry immediately with a clean cloth. Do not
use rough material, thinners. alcohol or other chemical solvents or
cloths since those could damage the finish or remove the panel letter¬
ing.
5. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
• Some models are designed for use only with the power supply
voltage of the region where they are sold.
European and Australian models: AC 230V. 50H/
L'.S.A. and Canadian models: AC 120V. 6011/
Worldwide model: AC 220-230V/120V switchable.
50/6011/
• Voltage Selector (Rear Panel)
Worldwide models are equipped with a voltage selector to con¬
form to local power supplies. Be sure to set this switch to match
the voltage of the power supply in your area before plugging in the
unit. Models without a voltage selector can only be used in areas
where the power supply is the same as that of the unit.
1 T-shaped FM antenna
Memory Preservation
This unit does not require memory preservation batteries. A built-in
memory power back-up system preserves the contents of the memory
during power failures and even when the unit is unplugged. The unit
must be plugged in order to charge the back-up system.
The memory preservation period after the unit has been unplugged var¬
ies depending on climate and placement of the unit. On the average,
memory contents are protected o\er a period of a few weeks after the
last time the unit has been unplugged. This period is shorter when the
unit is exposed to a highly humid climate.
For USA and Canada
• Manufactured under license from Dolby Laboratories Licens¬
ing Corporation.
Additionally licensed under Canadian number 1,037.877.
"Dolby". "Pro Logic", and the doublc-D symbol are trade¬
marks of Dolby Laboratories Licensing Corporation.
• Replacement and mounting of an AC plug on the power supply
cord of this unit should be performed only by qualified service per¬
sonnel.
• IMPORTANT: The wires in the mains lead are coloured in accor¬
dance with the following code:
Blue: Neutral
Brown: Live
As the colours of the w'ires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follow s:
The ware which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured browm must be connected to the terminal
which is marked with the letter L or coloured red.

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
