Onkyo TX-SV535 Instruction Manual

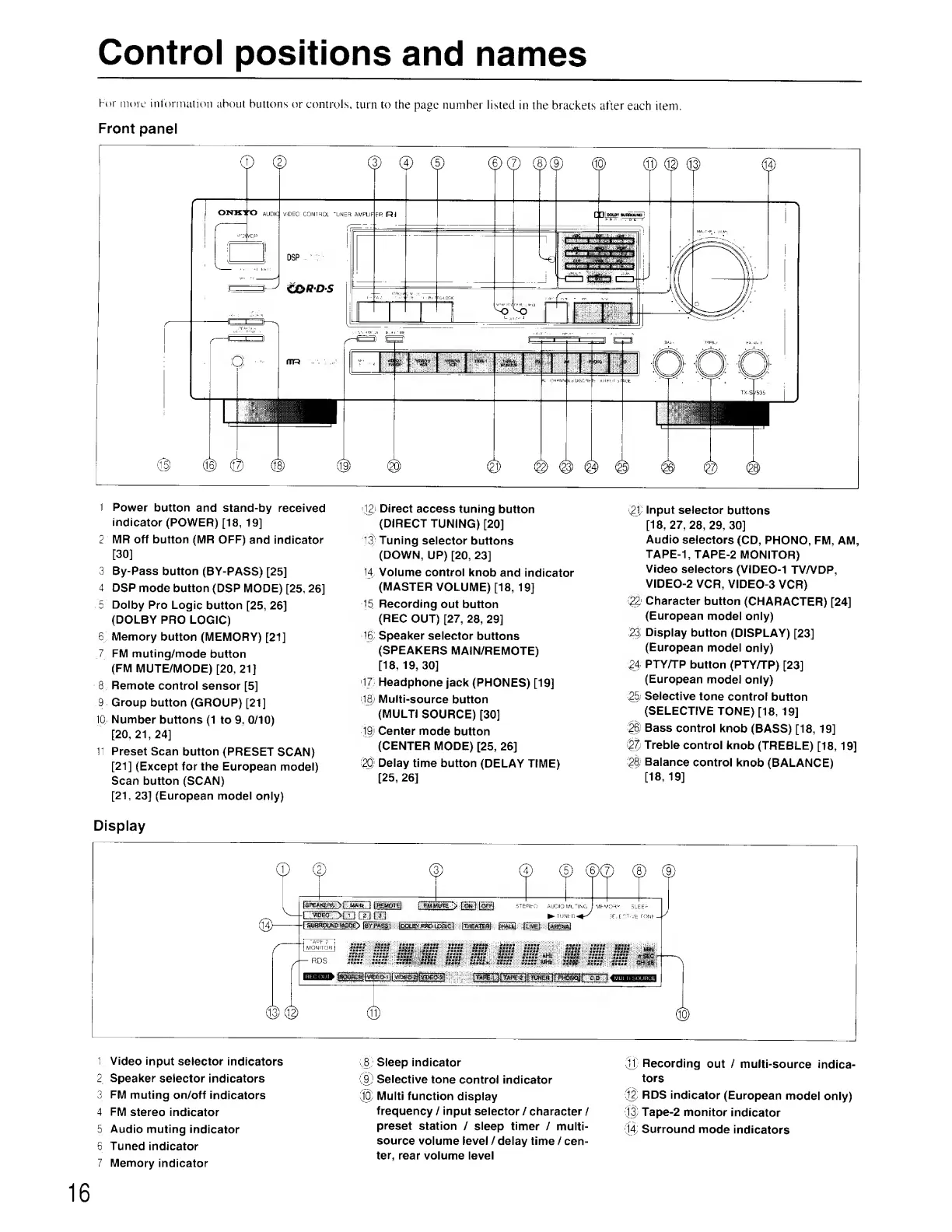

Control positions and names
For more information about buttons or controls, turn to the page number listed in the brackets after each item.
Front panel
1 Power button and stand-by received
indicator (POWER) [18, 19]
2 MR off button (MR OFF) and indicator
[30]
3 By-Pass button (BY-PASS) [25]
4 DSP mode button (DSP MODE) [25, 26]
5 Dolby Pro Logic button [25, 26]
(DOLBY PRO LOGIC)
6 Memory button (MEMORY) [21]
7 FM muting/mode button
(FM MUTE/MODE) [20, 21]
8 Remote control sensor [5]
9 Group button (GROUP) [21]
IQ/ Number buttons (1 to 9. 0/10)
[20,21,24]
11 Preset Scan button (PRESET SCAN)
[21] (Except for the European model)
Scan button (SCAN)
[21, 23] (European model only)
12 Direct access tuning button
(DIRECT TUNING) [20]
13) Tuning selector buttons
(DOWN, UP) [20, 23]
14 Volume control knob and indicator
(MASTER VOLUME) [18, 19]
15 Recording out button
(REC OUT) [27, 28, 29]
16; Speaker selector buttons
(SPEAKERS MAIN/REMOTE)
[18, 19, 30]
17 Headphone jack (PHONES) [19]
18; Multi-source button
(MULTI SOURCE) [30]
19, Center mode button
(CENTER MODE) [25, 26]
© Delay time button (DELAY TIME)
[25, 26]
.21 Input selector buttons
[18, 27, 28, 29, 30]
Audio selectors (CD, PHONO, FM, AM,
TAPE-1, TAPE-2 MONITOR)
Video selectors (VIDEO-1 TV/VDP,
VIDEO-2 VCR, VIDEO-3 VCR)
22 Character button (CHARACTER) [24]
(European model only)
23 Display button (DISPLAY) [23]
(European model only)
24 PTY/TP button (PTY/TP) [23]
(European model only)
2b. Selective tone control button
(SELECTIVE TONE) [18, 19]
|| Bass control knob (BASS) [18, 19]
27. Treble control knob (TREBLE) [18,19]
|| Balance control knob (BALANCE)
[18,19]
Display
1 Video input selector indicators
2 Speaker selector indicators
3 FM muting on/off indicators
4 FM stereo indicator
5 Audio muting indicator
6 Tuned indicator
7 Memory indicator
■ 8 Sleep indicator
(9) Selective tone control indicator
Multi function display
frequency / input selector / character /
preset station / sleep timer / multi¬
source volume level / delay time / cen¬
ter, rear volume level
|F Recording out / multi-source indica¬
tors
3| RDS indicator (European model only)
3 |) Tape-2 monitor indicator
14 Surround mode indicators
16

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
