Onkyo TX-SV535 Instruction Manual

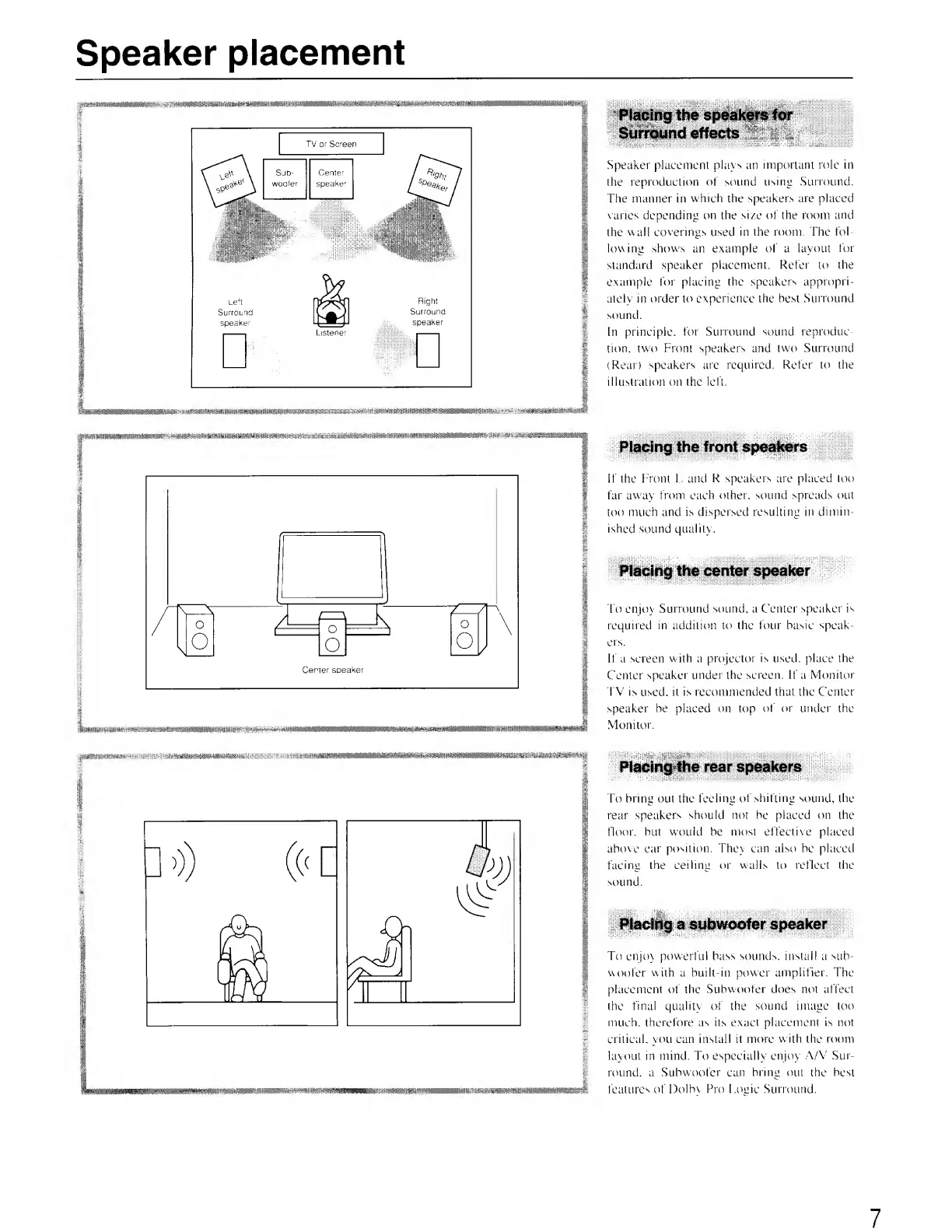

Speaker placement
Speaker placement plays an important role in
the reproduction of sound using Surround.
The manner in which the speakers are placed
vanes depending on the si/e of the room and
the wall coverings used in the room. The fol¬
lowing show's an example of a layout for
standard speaker placement. Refer to the
example for placing the speakers appropri¬
ately in order to experience the best Surround
sound.
In principle, for Surround sound reproduc¬
tion. two Front speakers and two Surround
(Rear) speakers are required. Refer to the
illustration on the left.
Placing the front
If the Front F and R speakers are plaeed loo
far away from each other, sound spreads out
too much and is dispersed resulting in dimin¬
ished sound quality.
Placing the center
To enjoy Surround sound, a Center speaker is
required in addition to the four basic speak¬
ers.
If a screen w ith a projector is used, place the
Center speaker under the screen. If a Monitor
TV is used, it is recommended that the Center
speaker be placed on top of or under the
Monitor.
To bring out the feeling of shifting sound, the
rear speakers should not be placed on the
floor, but would be most effective placed
above ear position. They can also be placed
facing the ceil inti or walls to reflect the
sound.
:|JiM^ia<aMliw<K>fer speaker
To enjoy powerful bass sounds, install a sub¬
woofer with a built-in power amplifier. The
placement of the Subwoofer does not affect
the final quality of the sound image too
much, therefore as its exact placement is not
critical, you can install it more with the room
layout in mind. To especially enjoy A/V Sur¬
round. a Subwoofer can bring out the best
features of Dolby Pro Logic Surround.

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
