2. Connecting the motor and driver
Connect the motor and driver using the connection cable (sold separately). The connection cables are provided up to 20 m (65.6 ft.).
For about the connection methods of the motor and connection cable, refer to the operating manual included with the motor.
There are three types of connection cables which cable outlet directions are dierent.
The following example explains using the connection cable of "cable outlet in output shaft direction."

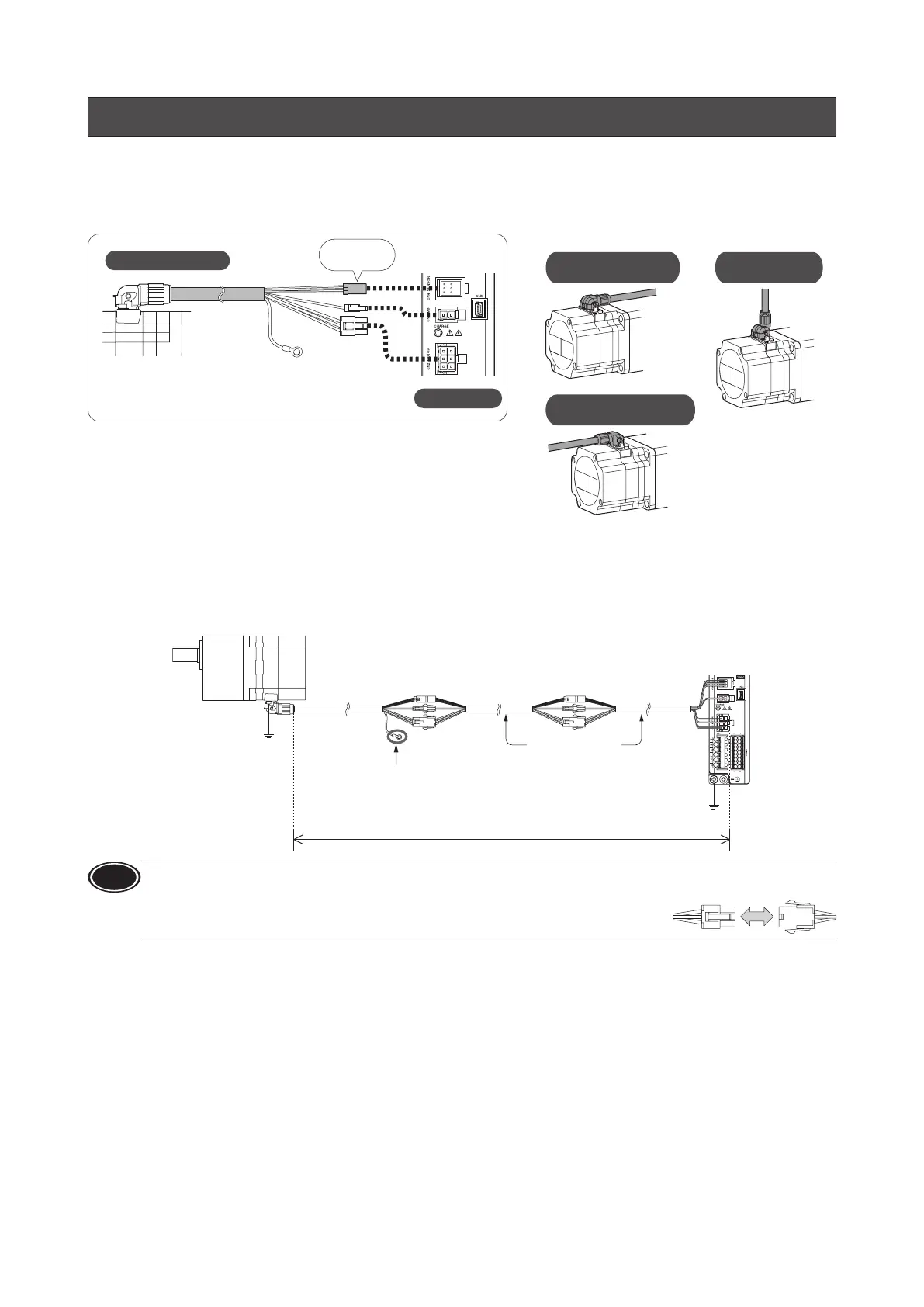

Driver
Insert into
the driver
CN4
CN3
CN2
Connection cable
Cable outlet in opposite
to output shaft direction
Cable outlet in output
shaft direction
Cable outlet in
vertical direction
［
Cable outlet direction
］
Extension between motor and driver
Use a connection cable for extension (sold separately) when extending the wiring distance between the motor and driver.
The connection cable for extension can be used by connecting up to two pieces. The wiring distance between the motor and
driver can be extended to a maximum of 20.5 m (67.2 ft.).
Example of use: Extension example when two connection cables are connected
Grounding
Grounding
Connection cable
CC005KHBLMB
Flexible connection cable
CC100BL2MR
Connection cable
CC100BL2M
Be sure to insulate the
terminal not in use.
Connecting for relay
20.5 m (67.2 ft.)
0.5 m (1.6 ft.) 10 m (32.8 ft.)
10 m (32.8 ft.)
Be sure to ground.
Be sure to ground.
Note
•
Secure each connector part not to apply stress on the connector part.
If not secured, the cables may damage due to stress.
•
Securely insert the connectors straight. Insecure connections may cause malfunction or
damage to the motor or driver.
