Operation panel
33
1-3 Function mode types
There are four operation modes in this product.
On the top screen of each mode, pressing the
key or turning the setting dial will switch the operation mode.

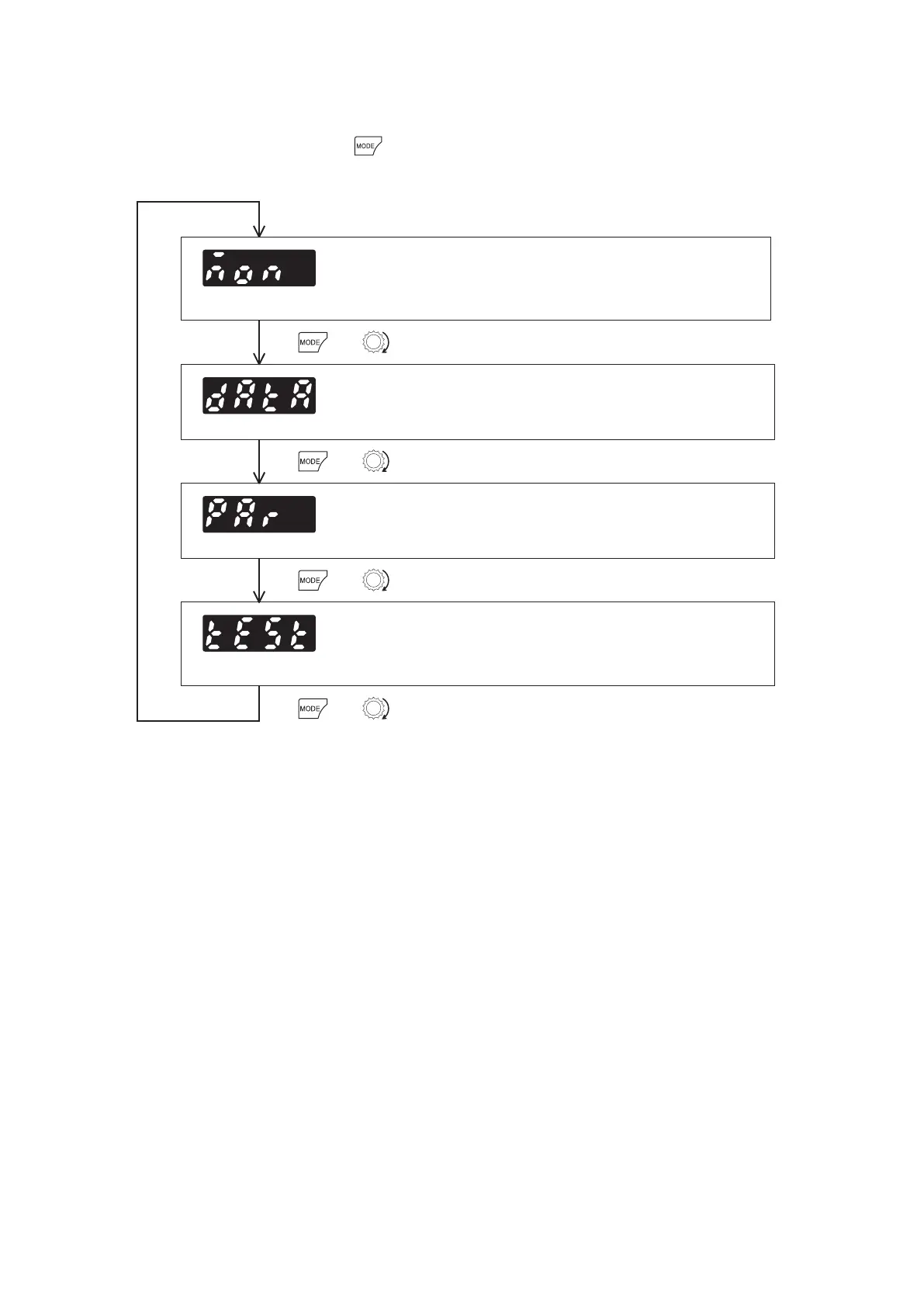

The top screens for each mode are shown below.
MON
DATA
PAR
TEST
Monitor mode
Data mode
Parameter mode
Test mode
This is a mode to be displayed when turning on the power.
The motor rotation speed is displayed at the factory setting.
Use the monitor mode when operating the motor.
Sets various parameters.
Sets the operation data of up to 16 speeds.
The connection status of each I/O signal can be checked.
With drivers for electromagnetic brake motor, you can test whether the
electromagnetic brake holds or releases.
Press or turn
Press
or turn
Press
or turn
Press
or turn
(p.34)
(p.37)
(p.36)
(p.38)
