Outback Power Systems FX2024ET User Manual

20

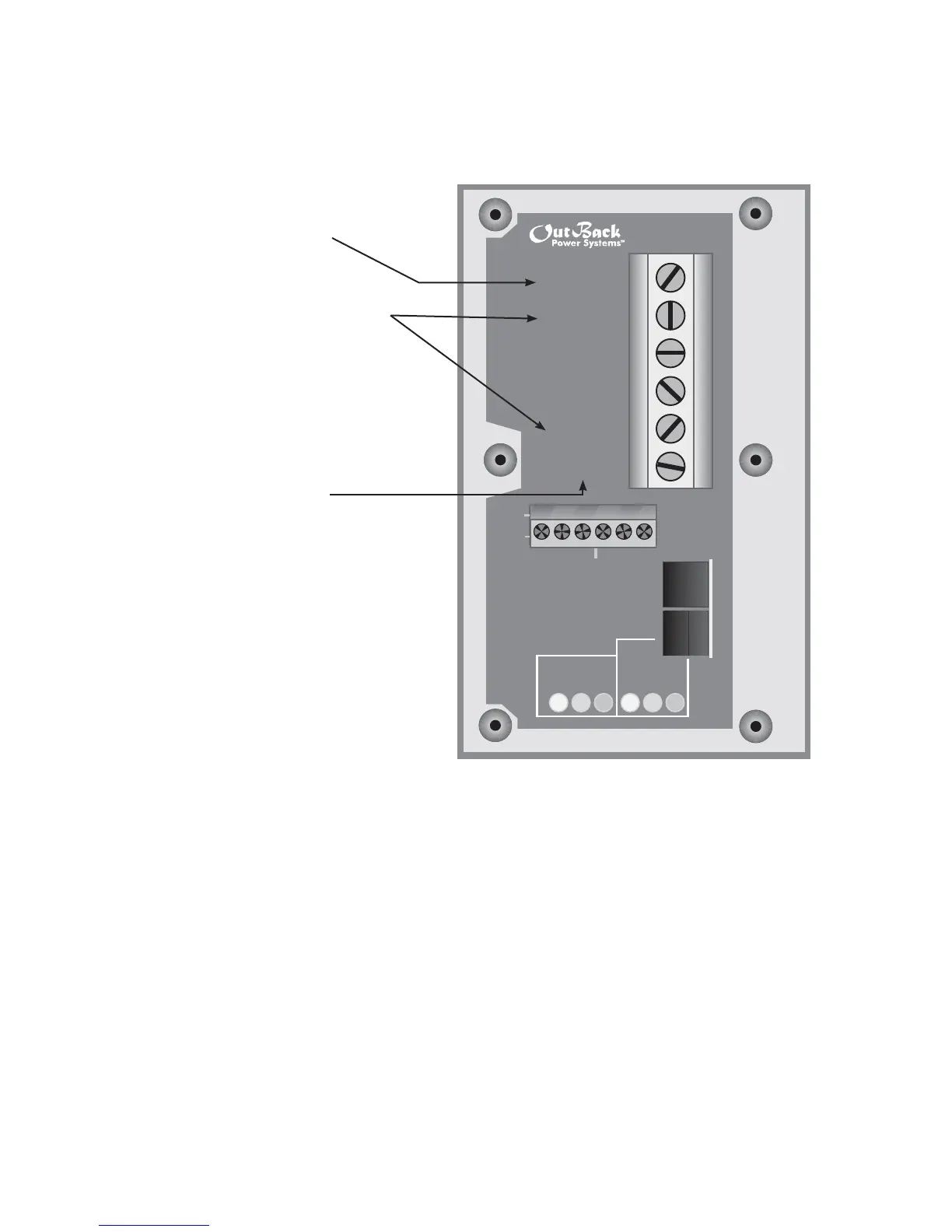

AC WIRING NOTES
AC HOT OUT
AC NEUTRAL OUT
CHASSIS GROUND/PE
CHASSIS GROUND/PE
AC NEUTRAL IN
AC HOT IN
BATTERY
FULL OK LOW
STATUS
INVERTER
AC IN ERROR
BATTERY TEMP
MATE/HUB
INVERTER ON/OFF
INVERTER
ON/OFF
AUX+
AUX-
XCT-
XCT+
AC HOT (PHASE) OUT
• Supplies the AC hot output conductors
through a 30 amp maximum AC branch
rated circuit breaker using 6 AWG (16.0 mm
2
)
wire and connect to the AC
AC NEUTRAL OUT/AC NEUTRAL IN
• Connects the AC neutral input conductor to
the AC NEUTRAL IN terminal.
• Connects the AC neutral output conductor
to the AC NEUTRAL OUT terminal.
AC HOT (PHASE) IN
• The AC hot input conductor (brown) must
be supplied through a 30 amp maximum AC
branch rated circuit breaker and connected
to the AC HOT IN.
• 6 AWG (16.0 mm
2
) wire is required for the
FX’s AC transfer relay.
