Outback Power Systems FX2024ET User Manual

24
SAMPLE INSTALLATIONS

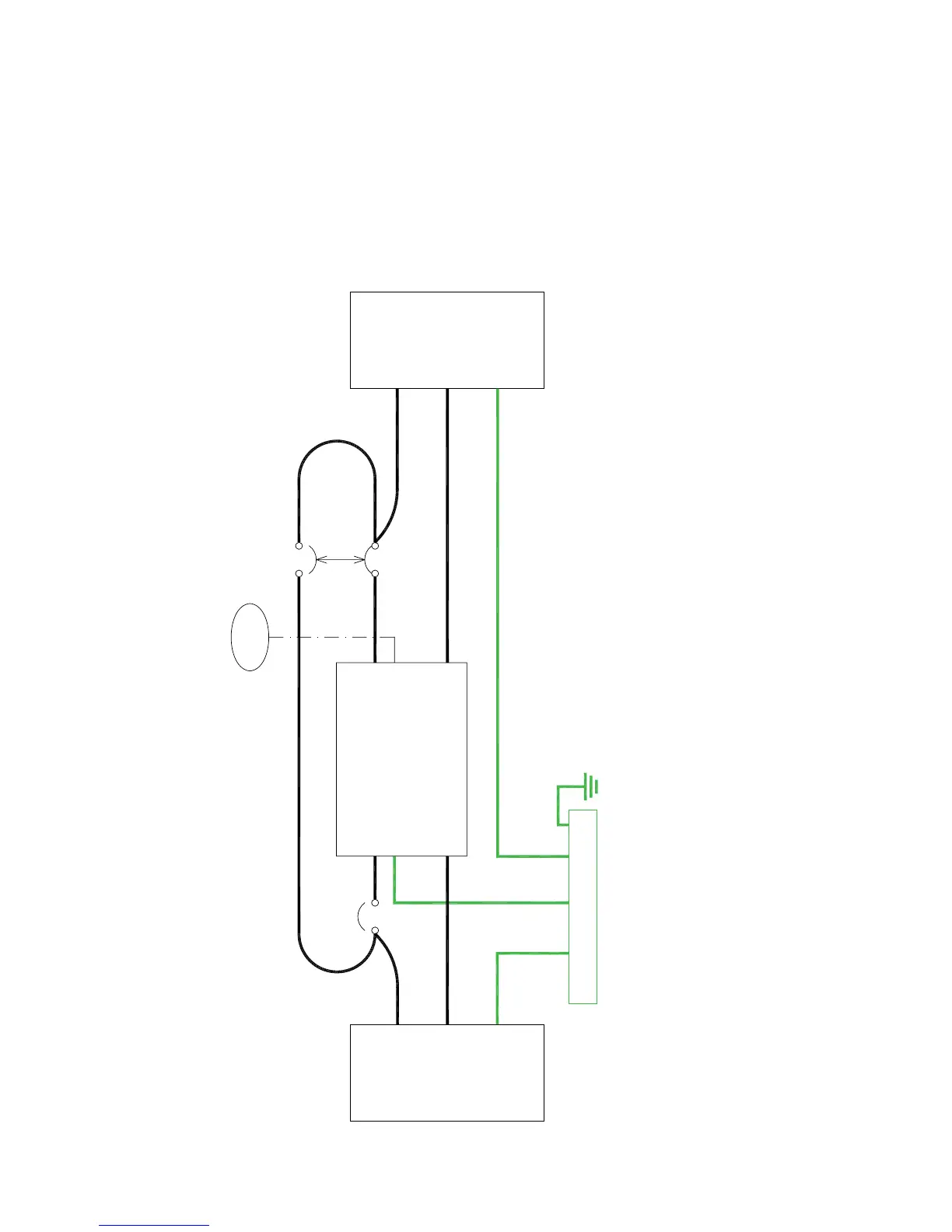

SINGLE FX SYSTEM
• All E Series FX AC wiring must handle 30 amps AC or more.
• A 30A input breaker (maximum) must be used.
• A single FX can continuously power two to three KW of loads depending on which model is used.
GROUND TBB
MECHANICAL
INTERLOCK
INVERTER/CHARGER
AC HOT IN AC HOT OUT
HUB/MATE
30 AMP
BYPASS
BREAKER
30 AMP
OUTPUT
BREAKER
AC NEUTRAL OUT
CHASSIS GROUND
DISPLAY
30 AMP
INPUT
BREAKER
BROWN BROWNBROWN
BROWN BROWN
BLUE
GREEN
NOTE:
1. All cables are to be
8AWG THHN or larger.
AC SOURCE
AC LOADS
BLUE
BLUE
AC NEUTRAL IN
BLUE
BROWN
BROWN
GREEN
GREEN
All cables must be
10 AWG (6.0 mm
2
)
or larger
