71
Vane Angle (°)
Operation Mode
1 2 3 4 5
Usual (Ventilation) 5 ~ 35
Auto
Control with dew 5 ~ 35
Usual (Ventilation) 5 12.5 20 27.5 35
Cooling
Manual
Control with dew 5 12.5 20 27.5 35
Usual 5 ~ 35
Auto
Control with dew 5 ~ 35
Usual 5 12.5 20 27.5 35
Dry
Manual
Control with dew 5 12.5 20 27.5 35
Heating Manual Usual 5 17.5 30 42.5 55
E18~21NK

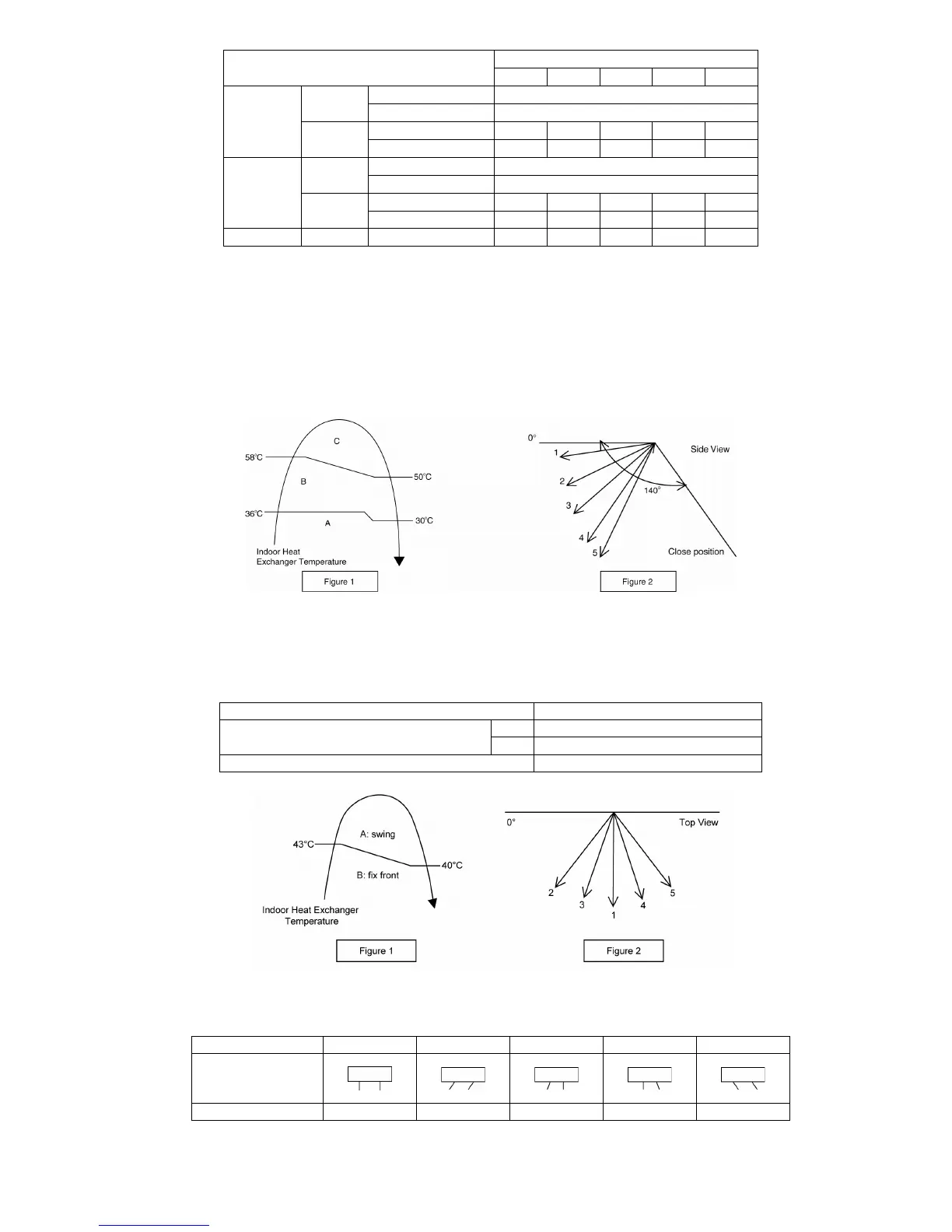

1 Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner
is stopped using remote control, the vane will shift to close position.
2 Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above
and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control,
the vane will shift to close position.
12.4.2 Horizontal Airflow
Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the
angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop.
Operation Mode Vane Angle (°)
A 65 ~115
Heating, with heat exchanger temperature
B 90
Cooling and soft dry 65 ~115
Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below
and the positions of the vane are as Figure 2 above.
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 65 77.5 102.5 115
CS-E7, 9, 12, 15NK CS-XE7, 9, 12, 15NK
