Panasonic CS-E7NKEW User Manual

82
12.13.3 Sunlight Sensor
 During ECONAVI operation, the sunlight sensor detects sunlight intensity coming through windows and
differentiates between sunny and cloudy or night to further optimize energy saving by adjusting the temperature.

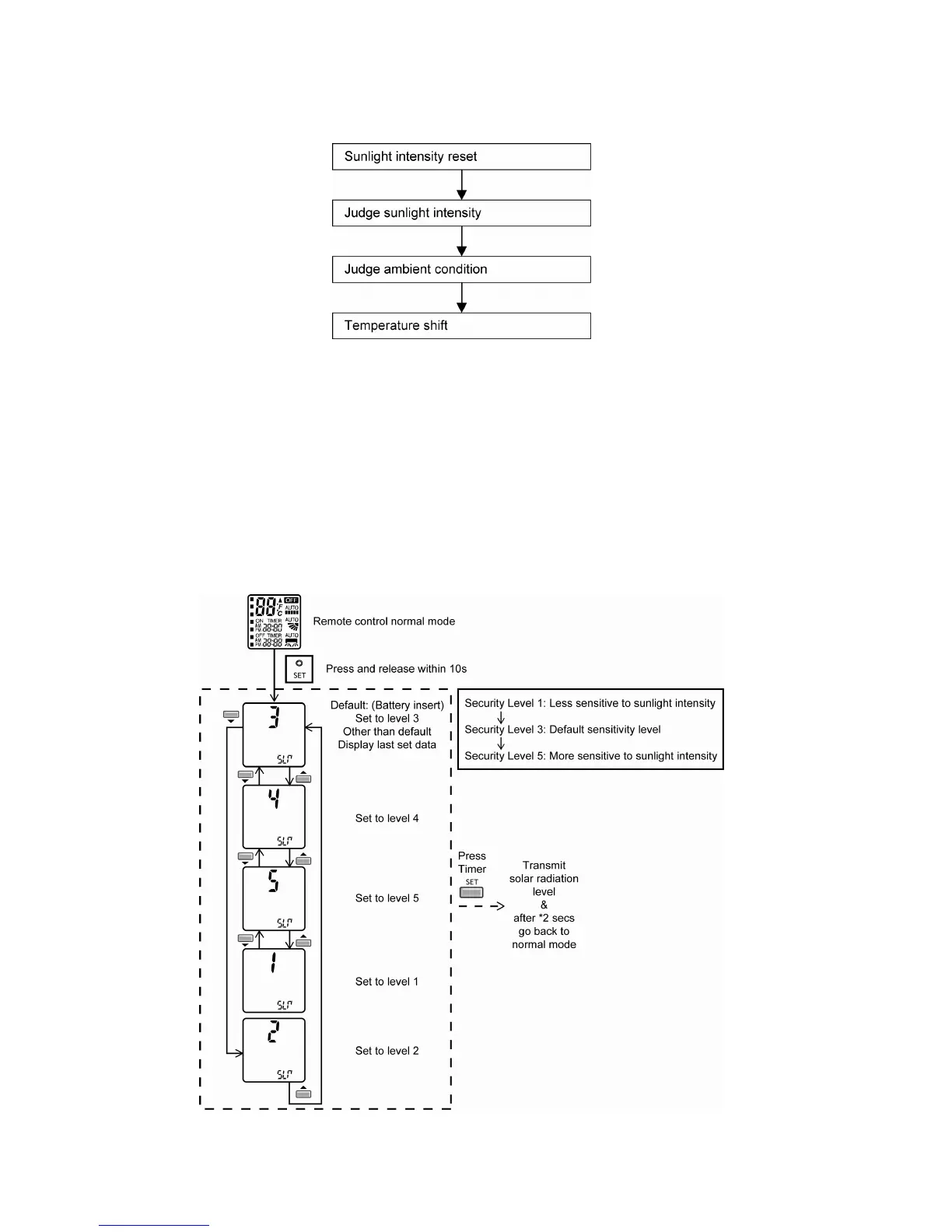

 Sunlight judgment is as following
12.13.3.1 Sunlight Intensity Reset
 The sunlight intensity will to reset to zero (no sunlight condition) when
o Each time ECONAVI is activated.
o Setting temperature is changed.
o Operation mode is changed.
12.13.3.2 Judge Sunlight Intensity
 Based on sunlight sensor output voltage, the sunlight intensity value will be computed and logged to sunlight
intensity database.
 The sunlight sensor sensitivity could be adjusted:

Panasonic CS-E7NKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	870 x 214 x 290 mm
Timer	Yes
Built-in display	No
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	2050 W
Heating capacity in watts (max)	2800 W
Cooling energy efficiency (EER, W/W)	4.36
Heating energy efficiency (COP, W/W)	4.41
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	37 dB
Noise level (medium speed)	24 dB
Power requirements	AC 230 V
