3.4. How to Define the Model Suffix (NTSC or PAL model)
There are eight kinds of DMC-GX1 (Camera body unit), regardless of the colours.
• a) DMC-GX1 (Japan domestic model)
• b) DMC-GX1PP/PC
• c) DMC-GX1EB/EC/EF/EG/GH/GN
• d) DMC-GX1EE
• e) DMC-GX1GK
• f) DMC-GX1GT
• g) DMC-GX1GD
• h) DMC-GX1GC
What is the difference is that the “INITIAL SETTINGS” data which is stored in Flash-ROM mounted on MAIN P.C.B..
3.4.1. Defining methods:

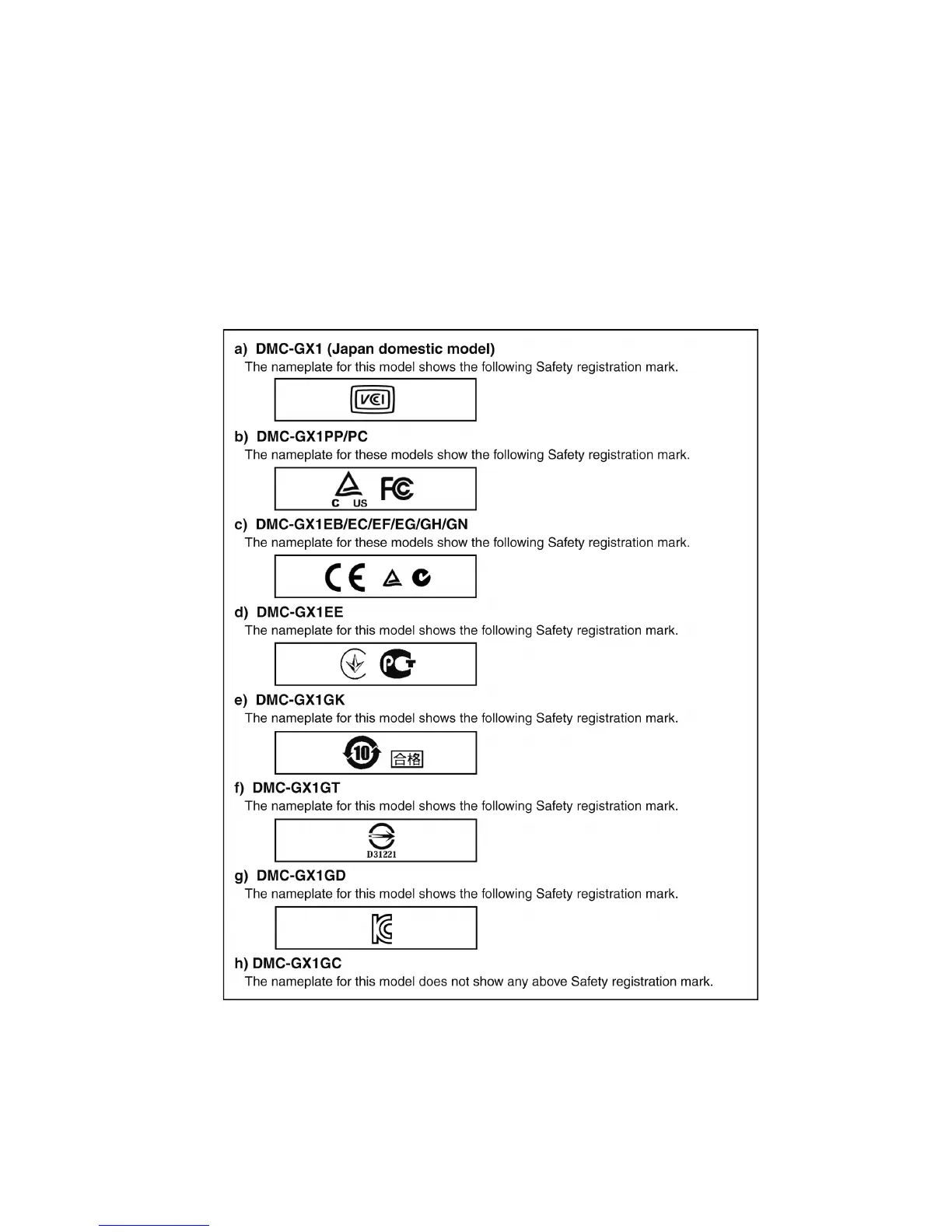

To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.
NOTE:
After replacing the MAIN P.C.B., be sure to achieve adjustment.
Refer to the adjustment instruction in the adjustment software for details.
