39

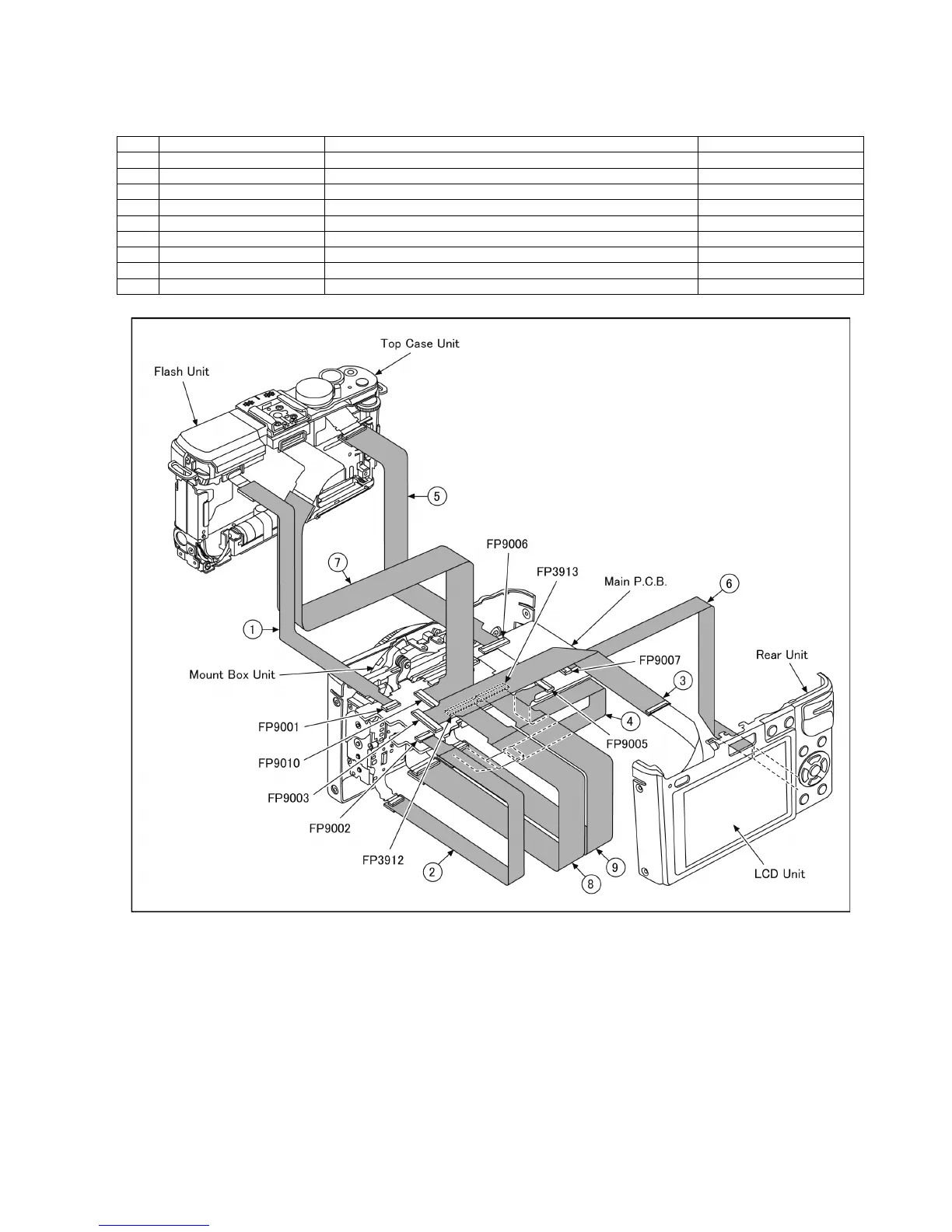

8.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List
CAUTION-1. (When servicing CAPACITOR P.C.B. UNIT)
1. Be sure to discharge the E.capacitor on CAPACITOR P.C.B. UNIT.
Refer to “HOW TO DISCHARGE THE E.CAPACITOR ON CAPACITOR P.C.B. UNIT”.
The capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on CAPACITOR P.C.B. UNIT.
3. DO NOT allow other parts to touch the high voltage circuit on CAPACITOR P.C.B. UNIT.
No. Parts No. Connection Form
1 RFKZ0583 FP9001(MAIN) <=> FT7801(MAIN-FLASH FPC) - FLASH P.C.B. 19pin 0.3 FFC
2 RFKZ0583 FP9002(MAIN) <=> MOUNT BOX UNIT(SHUTTER I/F) 19pin 0.3 FFC
3 VFK2024 FP9003(MAIN) <=> LCD UNIT 51PIN 0.3 FFC
4 RFKZ0564 FP9005(MAIN) <=> MOUNT BOX UNIT(LENS I/F) 23pin 0.3 FFC
5 RFKZ0477 FP9006(MAIN) <=> FT7701(MAIN-TOP FPC) - TOP P.C.B. 45pin 0.3 FFC
6 VFK1582A1225 FP9007(MAIN) <=> LCD UNIT 12pin 0.5 FFC
7 RFKZ0416 FP9010(MAIN) <=> FT7841(MAIN-LVF FPC) - EXT LVF P.C.B. 41pin 0.3 FFC
8 RFKZ0477 FP3912(MAIN) <=> MOUNT BOX UNIT 45pin 0.3 FFC
9 RFKZ0477 FP3913(MAIN) <=> MOUNT BOX UNIT 45pin 0.3 FFC
To Next Page
