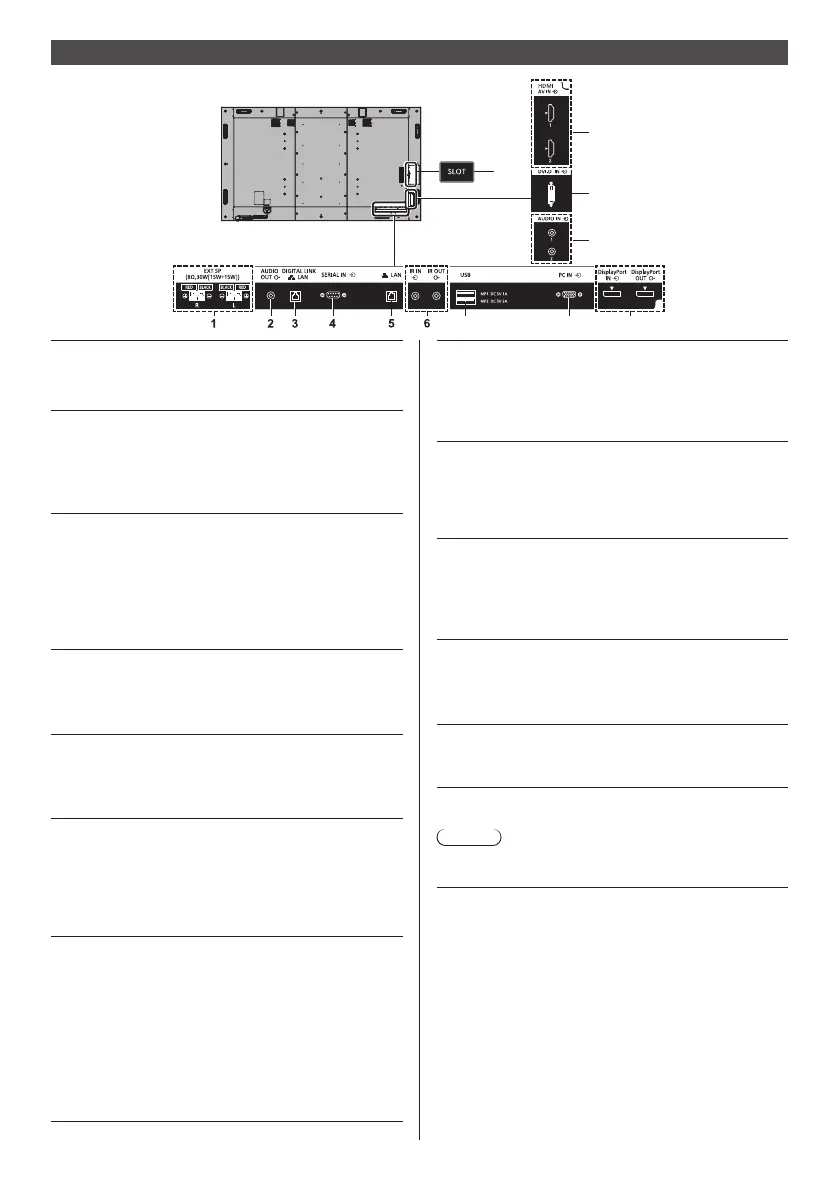

Video equipment connection
Q40G1000-037-79A
10
13
11
12
7 8 9
1 EXT SP: Speaker Terminal
Connect to external speaker.
(see page 31)
2 AUDIO OUT: Analogue Audio Output
Terminal
Connect to audio equipment with
analogue audio input terminal.
(see page 30)
3 DIGITAL LINK /
LAN:
DIGITAL LINK / LAN Terminal
Control the Display by connecting
to Network. Alternatively, connect
to a device that sends video and
audio signals via the DIGITAL
LINK terminal.
(see page 27, 91)
4 SERIAL IN: SERIAL Input Terminal
Control the Display by connecting
to PC.
(see page 28)
5 LAN: LAN Terminal
Control the Display by connecting
to Network.
(see page 91)
6 IR IN,
IR OUT:
Infrared Signal Input / Output
Terminal
Use this when operating more
than one display with one remote
control.
(see page 29)
7 USB: USB Terminal (2 systems)
Connect the USB memory to use
“USB media player” or “Memory
viewer”. Also, this can be used
to supply power of up to 5V/1A
(front side terminal) or 5V/2A
(far side terminal) to an external
device when the picture is
displayed.
(see page 30)
8 PC IN: PC Input Terminal
Connect to video terminal of PC,
video equipment with “YP
BPR /
YCBCR” or “RGB” output.
(see page 24)
9 DisplayPort IN,
DisplayPort OUT:
DisplayPort Input / Output
Terminal (Supports 4K picture)
Connect to PC or video
equipment with DisplayPort
terminal. (see page 25)
10 AV IN
(HDMI 1,
HDMI 2):
HDMI Input Terminal
(2 systems)
Connect to video equipment with
HDMI output.
(see page 22)
11 DVI-D IN: DVI-D Input Terminal
Connect to video equipment with
DVI-D output.
(see page 23)
12 AUDIO IN 1,
AUDIO IN 2:
Analogue Audio Input Terminal
(2 systems)
(see page 23, 24)
13 SLOT: Expansion slot
(see page 15)
Note
●
For the compatible function board, consult the dealer
where you purchased the product.
