VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1

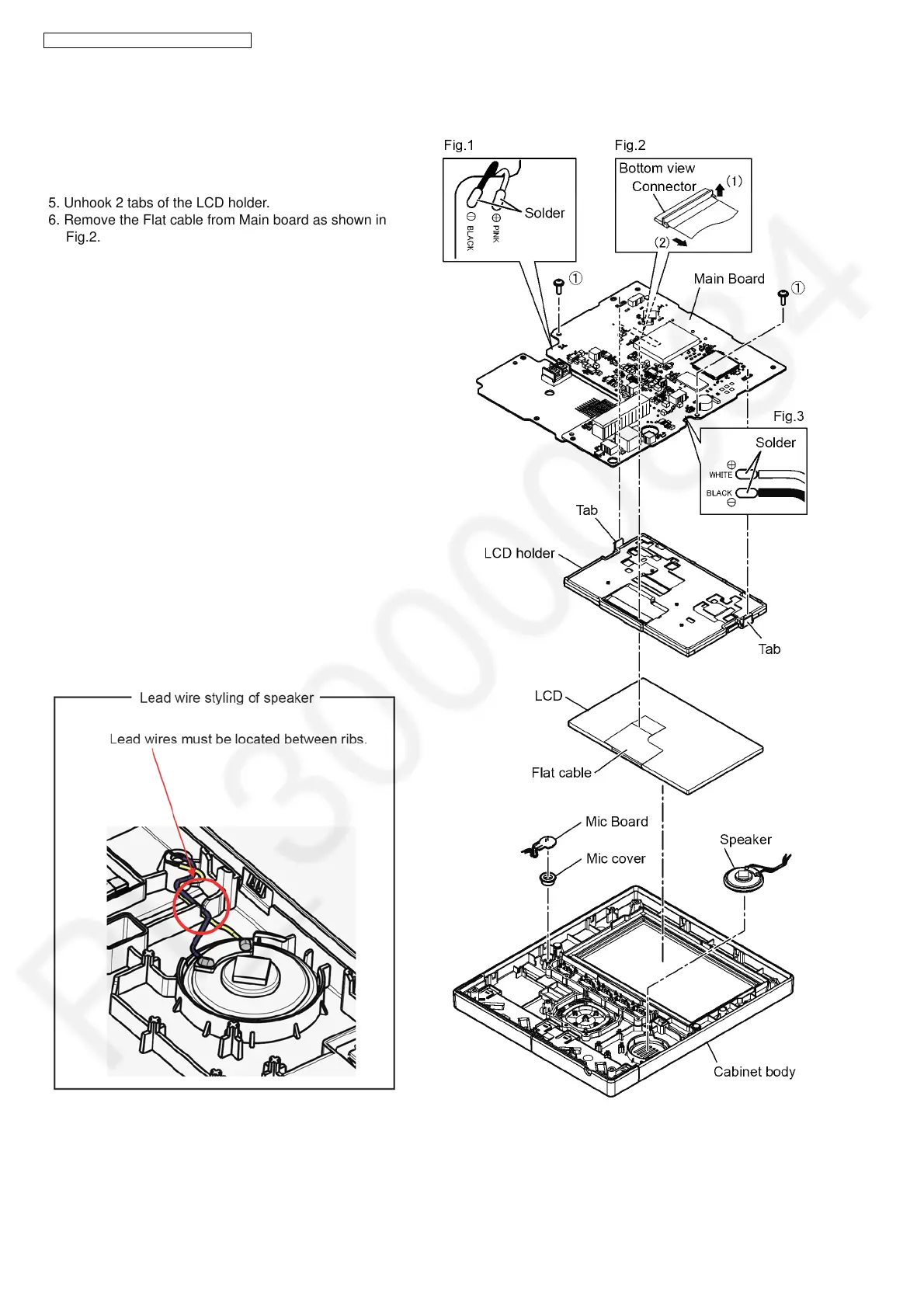

9.1.3. How to Remove the Main Board, Mic Board, Speaker and LCD [No.3]
 Procedure No.1No.2No.3
1. Remove 2 screws ① .
2. Remove the solder of the Mic Board lead wire (Fig.1).
3. Remove the solder of the Speaker lead wire (Fig.3).
4. Remove the Main Board from Cabinet.
5. Unhook 2 tabs of the LCD holder.
6. Remove the Flat cable from Main board as shown in
Fig.2.
