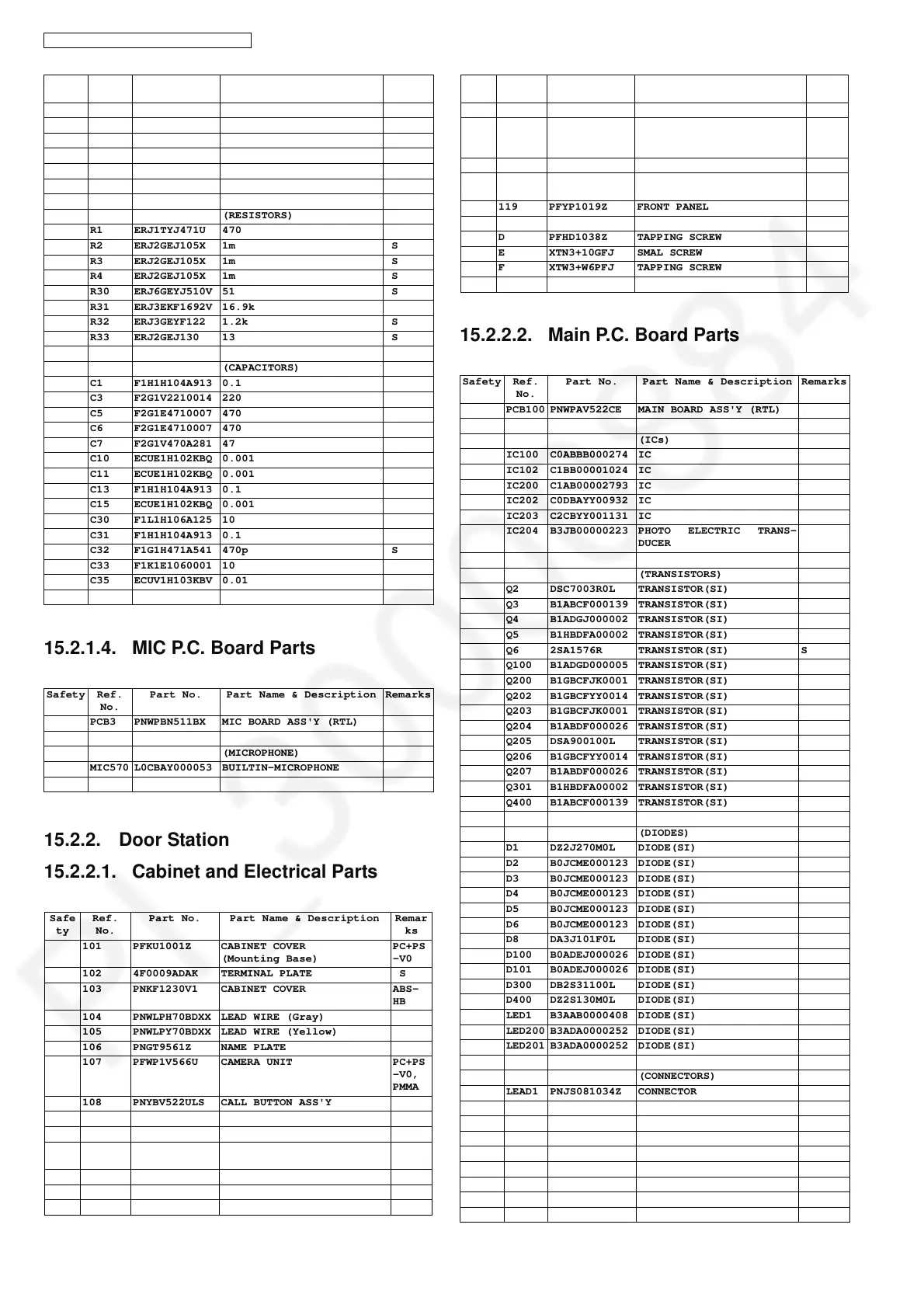

VL-SVN511BX/VL-SVN511CX/VL-SVN511CX1
15.2.1.4. MIC P.C. Board Parts
15.2.2. Door Station
15.2.2.1. Cabinet and Electrical Parts
15.2.2.2. Main P.C. Board Parts
(SWITCHES)
SW7 K0H1BA000361 SPECIAL SWITCH
SW8 K0H1BA000594 PUSH SWITCH
SW9 K0H1BA000594 PUSH SWITCH
SW10 K0H1BA000594 PUSH SWITCH
SW11 K0H1BA000594 PUSH SWITCH
(RESISTORS)
R1 ERJ1TYJ471U 470
R2 ERJ2GEJ105X 1m S
R3 ERJ2GEJ105X 1m S
R4 ERJ2GEJ105X 1m S
R30 ERJ6GEYJ510V 51 S
R31 ERJ3EKF1692V 16.9k
R32 ERJ3GEYF122 1.2k S
R33 ERJ2GEJ130 13 S
(CAPACITORS)
C1 F1H1H104A913 0.1
C3 F2G1V2210014 220
C5 F2G1E4710007 470
C6 F2G1E4710007 470
C7 F2G1V470A281 47
C10 ECUE1H102KBQ 0.001
C11 ECUE1H102KBQ 0.001
C13 F1H1H104A913 0.1
C15 ECUE1H102KBQ 0.001
C30 F1L1H106A125 10
C31 F1H1H104A913 0.1
C32 F1G1H471A541 470p S
C33 F1K1E1060001 10
C35 ECUV1H103KBV 0.01
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB3 PNWPBN511BX MIC BOARD ASS'Y (RTL)
(MICROPHONE)
MIC570 L0CBAY000053 BUILTIN-MICROPHONE
Safe
ty
Ref.
No.
Part No. Part Name & Description Remar
ks
101 PFKU1001Z CABINET COVER
(Mounting Base)
PC+PS
-V0
102 4F0009ADAK TERMINAL PLATE S
103 PNKF1230V1 CABINET COVER ABS-
HB
104 PNWLPH70BDXX LEAD WIRE (Gray)
105 PNWLPY70BDXX LEAD WIRE (Yellow)
106 PNGT9561Z NAME PLATE
107 PFWP1V566U CAMERA UNIT PC+PS
-V0,
PMMA
108 PNYBV522ULS CALL BUTTON ASS'Y
109 PNWHV522UL SPEAKER ASS'Y
110 L0AD02A00010 SPEAKER
111 PNHX1545Z DOUBLE FACED TAPE
for SPEAKER
112 PNHX1023Z SHEET COVER for SPEAKER
113 PFHG1221X RUBBER, SPEAKER
114 PNWLSB40KKXX SPEAKER LEAD WIRE (Black)
Safety Ref.
No.
Part No. Part Name & Description Remarks
115 PNWLSW40KKXX SPEAKER LEAD WIRE (White)
116 PNHX1199Z SHEET COVER for MIC PC+PS
-V0,
PMMA
117 PNYMV522ULS UPPER CABINET ASS'Y PMMA
118 PNHR1537Z LENS, SENSOR ABS-
V0
119 PFYP1019Z FRONT PANEL
D PFHD1038Z TAPPING SCREW
E XTN3+10GFJ SMAL SCREW
F XTW3+W6PFJ TAPPING SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB100 PNWPAV522CE MAIN BOARD ASS'Y (RTL)
(ICs)
IC100 C0ABBB000274 IC
IC102 C1BB00001024 IC
IC200 C1AB00002793 IC
IC202 C0DBAYY00932 IC
IC203 C2CBYY001131 IC
IC204 B3JB00000223 PHOTO ELECTRIC TRANS-
DUCER
(TRANSISTORS)
Q2 DSC7003R0L TRANSISTOR(SI)
Q3 B1ABCF000139 TRANSISTOR(SI)
Q4 B1ADGJ000002 TRANSISTOR(SI)
Q5 B1HBDFA00002 TRANSISTOR(SI)
Q6 2SA1576R TRANSISTOR(SI) S
Q100 B1ADGD000005 TRANSISTOR(SI)
Q200 B1GBCFJK0001 TRANSISTOR(SI)
Q202 B1GBCFYY0014 TRANSISTOR(SI)
Q203 B1GBCFJK0001 TRANSISTOR(SI)
Q204 B1ABDF000026 TRANSISTOR(SI)
Q205 DSA900100L TRANSISTOR(SI)
Q206 B1GBCFYY0014 TRANSISTOR(SI)
Q207 B1ABDF000026 TRANSISTOR(SI)
Q301 B1HBDFA00002 TRANSISTOR(SI)
Q400 B1ABCF000139 TRANSISTOR(SI)
(DIODES)
D1 DZ2J270M0L DIODE(SI)
D2 B0JCME000123 DIODE(SI)
D3 B0JCME000123 DIODE(SI)
D4 B0JCME000123 DIODE(SI)
D5 B0JCME000123 DIODE(SI)
D6 B0JCME000123 DIODE(SI)
D8 DA3J101F0L DIODE(SI)
D100 B0ADEJ000026 DIODE(SI)
D101 B0ADEJ000026 DIODE(SI)
D300 DB2S31100L DIODE(SI)
D400 DZ2S130M0L DIODE(SI)
LED1 B3AAB0000408 DIODE(SI)
LED200 B3ADA0000252 DIODE(SI)
LED201 B3ADA0000252 DIODE(SI)
(CONNECTORS)
LEAD1 PNJS081034Z CONNECTOR
(COILS & IC FILTERS)
L2 G1C101MA0291 COIL
L3 G1C101MA0291 COIL
L4 G1C330KA0100 COIL
L5 G1C2R2MA0395 COIL
L6 PQLQR2KA113 COIL S
L7 G1C330MA0203 COIL
Safe
ty
Ref.
No.
Part No. Part Name & Description Remar
ks
