Panduit PTR3E User Manual

LOADING LABELS
Follow these steps to properly load labels into
the PTR3E:

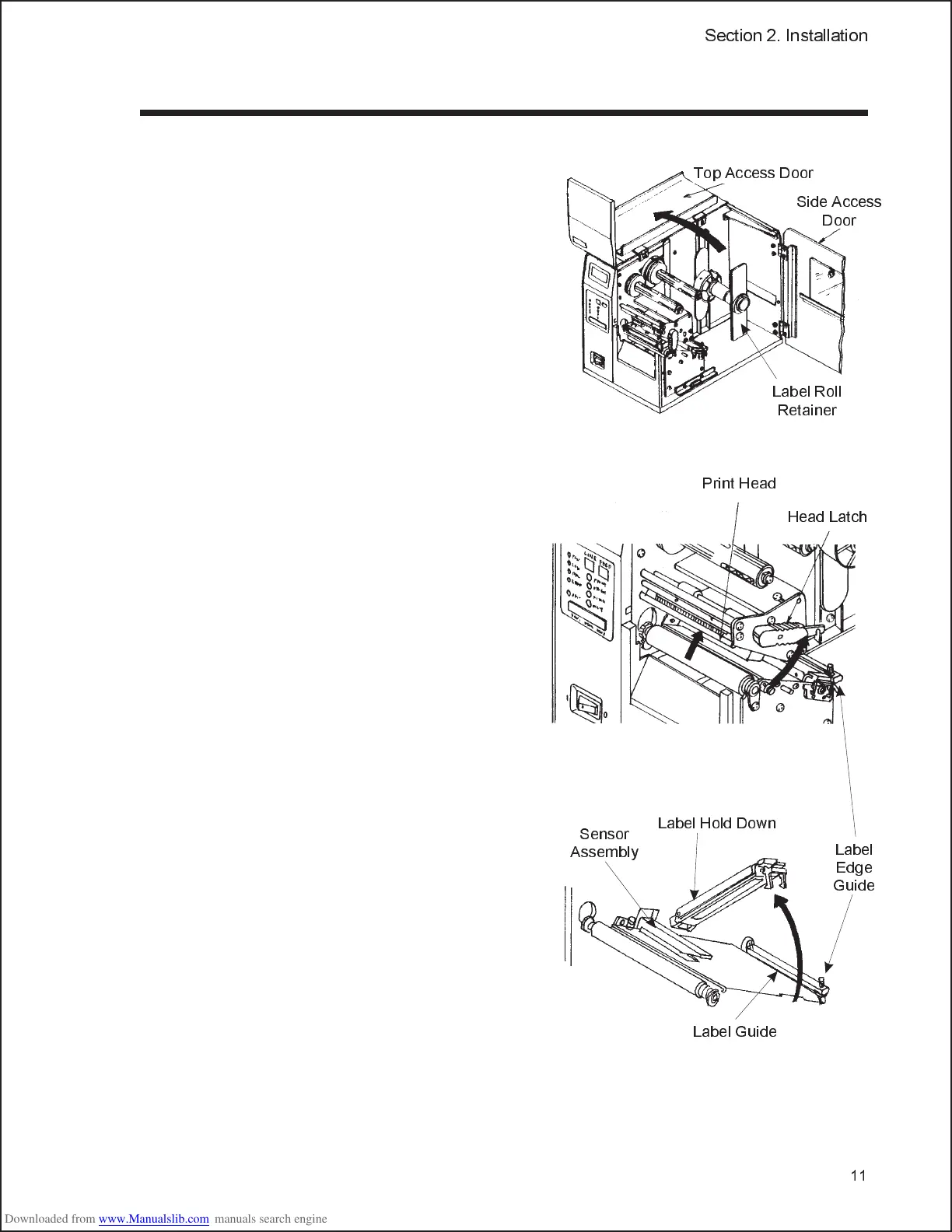

1. Open the Top Access Door by
swinging it up and to the left. Open
the Side Access Door by
swinging it to the rear of the
printer.
2. Open the Print Head Assembly
by pushing the Head Latch
toward the rear of the printer. The
Print Head Assembly is
spring-loaded and will
automatically open as soon as the
Head Latch is disengaged.
3. Loosen the Label Edge Guide
and push it to the outside of the
printer to give the maximum label
width.
4. Remove the Label Roll
Retainer.
11
Section 2. Installation
Top Access Door
Side Access
Door
Label Roll
Retainer
Label Hold Down
Label Guide
Sensor
Assembly
Label
Edge
Guide
Print Head
Head Latch
