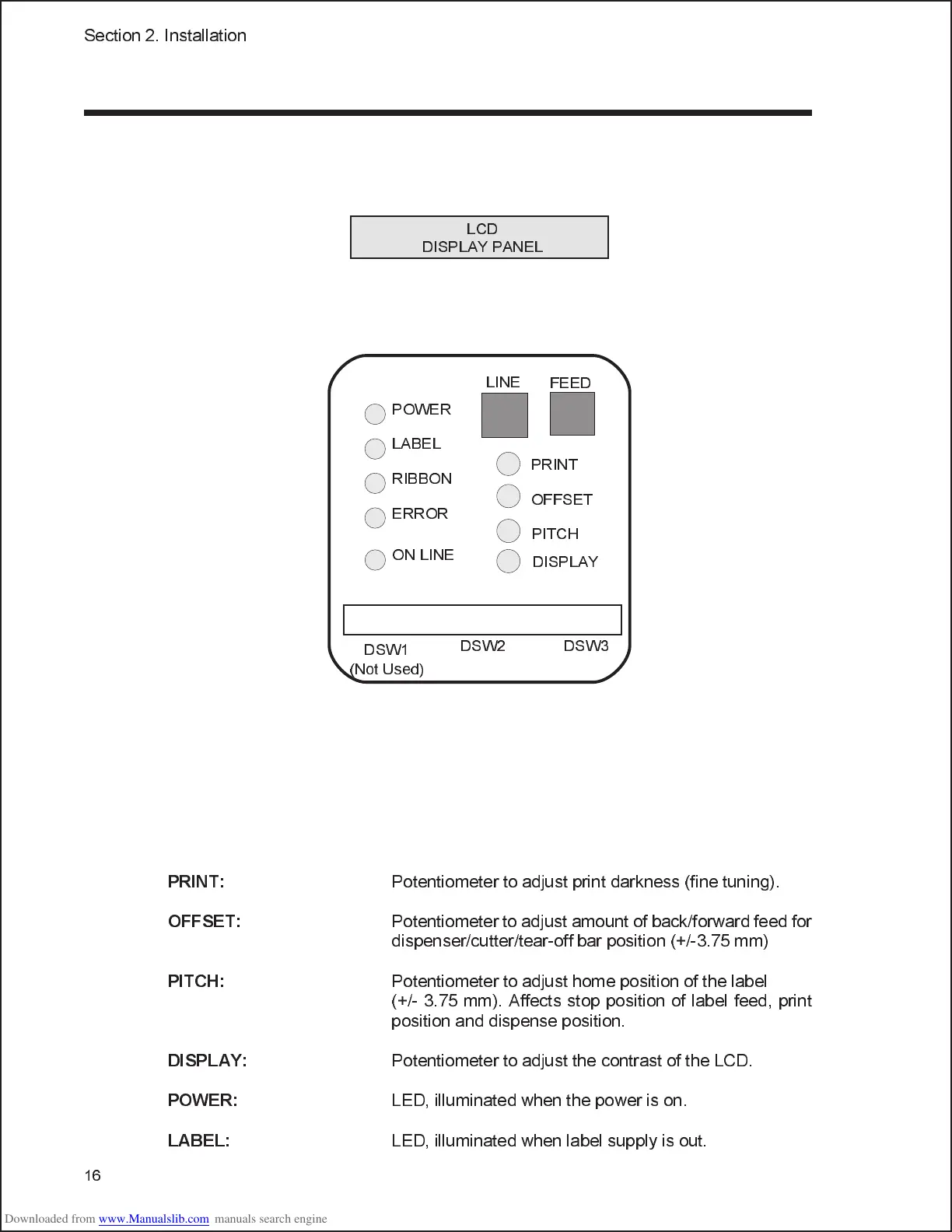

OPERATOR PANEL
The PTR3E Operator Panel consists of five LED indicators, two momentary
contact switches, two DIP switches, four adjustment potentiometers and one LCD
Display. All of these are accessible from the front of the printer. They are used to set
the printer operating parameters and to indicate the status of the printer to the
operator. After you power on the printer, familiarize yourself with the keys and
indicators as it will help you understand the configuration process.
PRINT:
Potentiometer to adjust print darkness (fine tuning).
OFFSET:
Potentiometer to adjust amount of back/forward feed for
dispenser/cutter/tear-off bar position (+/-3.75 mm)
PITCH:
Potentiometer to adjust home position of the label
(+/- 3.75 mm). Affects stop position of label feed, print
position and dispense position.
DISPLAY:
Potentiometer to adjust the contrast of the LCD.
POWER:
LED, illuminated when the power is on.
LABEL:
LED, illuminated when label supply is out.
16
Section 2. Installation
DSW2
DSW1
(Not Used)
DSW3
LINE
FEED
PITCH
PRINT
OFFSET
DISPLAY
LCD
DISPLAY PANEL
ERROR
RIBBON
LABEL
POWER
ON LINE
To Next Page
