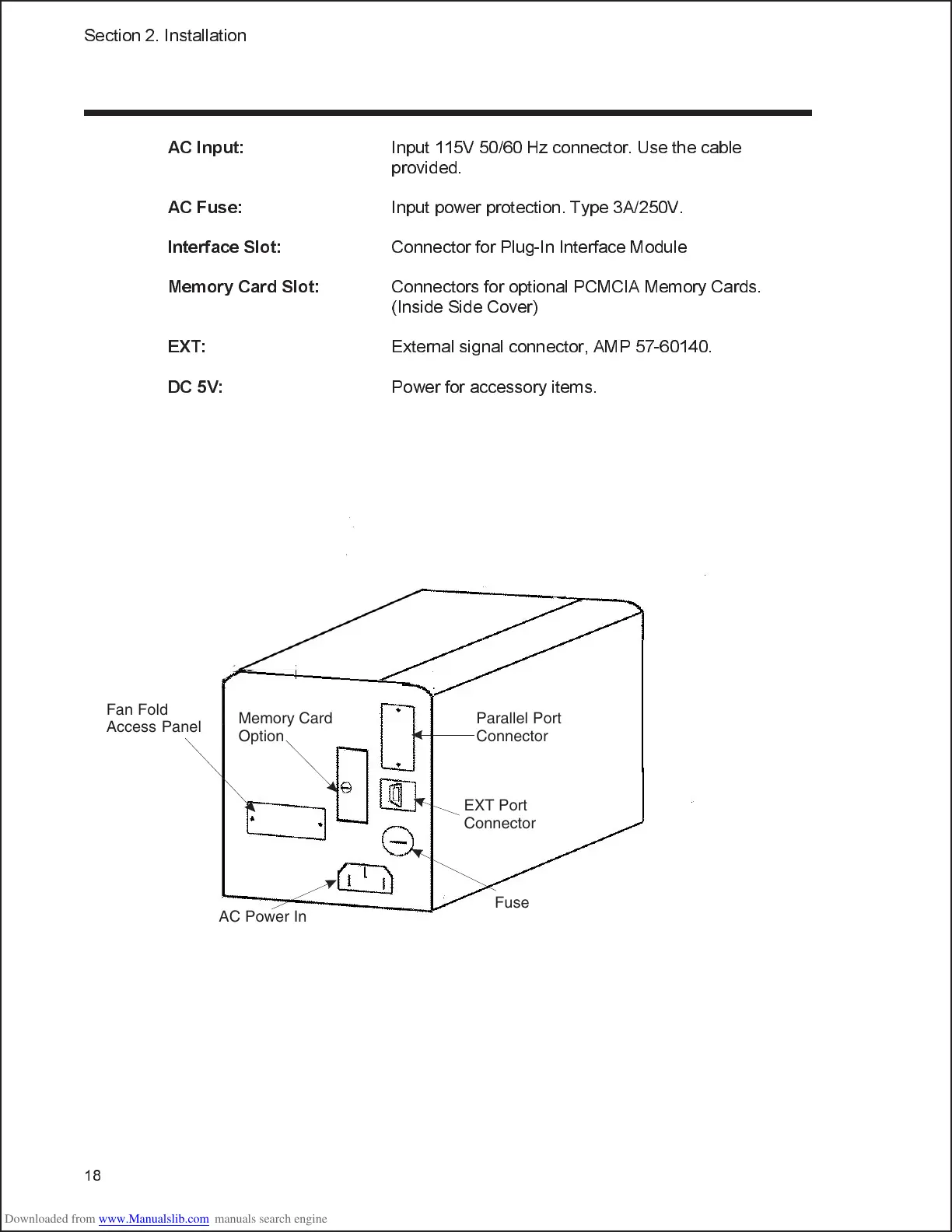

REAR PANEL
AC Input:
Input 115V 50/60 Hz connector. Use the cable
provided.
AC Fuse:
Input power protection. Type 3A/250V.
Interface Slot:
Connector for Plug-In Interface Module
Memory Card Slot:
Connectors for optional PCMCIA Memory Cards.
(Inside Side Cover)
EXT:
External signal connector, AMP 57-60140.
DC 5V:
Power for accessory items.
18
Section 2. Installation
Fuse
EXT Port
Connector
Parallel Port
Connector
Memory Card
Option
Fan Fold
Access Panel
AC Power In
