Pantum P3000 Series Maintenance Manual

3-2

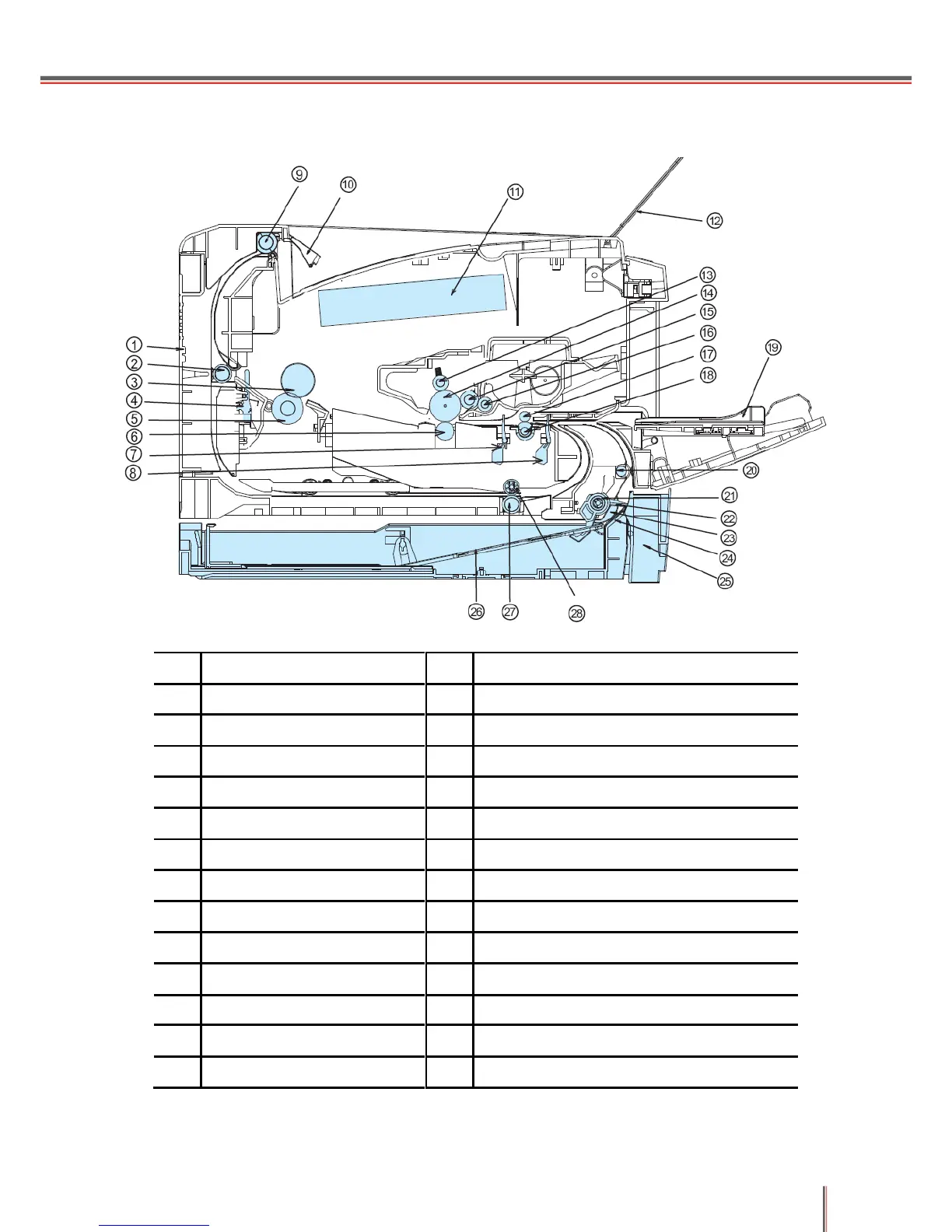

3.2 Mechanical Structural Diagram
1
Rear Cover
15
Developing Roller
2
Output Roller Component 1
16
Toner-feed Roller
3
Heating Roller
17
Correction Axis
4
Delivery Sensor
18
Correction Roller
5
Pressure Roller
19
Manual Feeder Tray
6
Transfer Roller
20
Transporter Roller
7
Paper Feed Sensor
21
Paper-end Sensor
8
Correction Sensor
22
Paper Presence Sensor
9
Output Roller Component 2
23
Pickup Roller
10
Platen
24
Separator
11
Laser
25
Feeder Tray
12
Delivery Tray
26
Paper-raising Board
13
Primary Charge Roller
27
Duplex Unit Transporter Roller
14
OPC
28
Duplex Unit Transporter Guide Roller
