Pantum P3000 Series Maintenance Manual

7-5

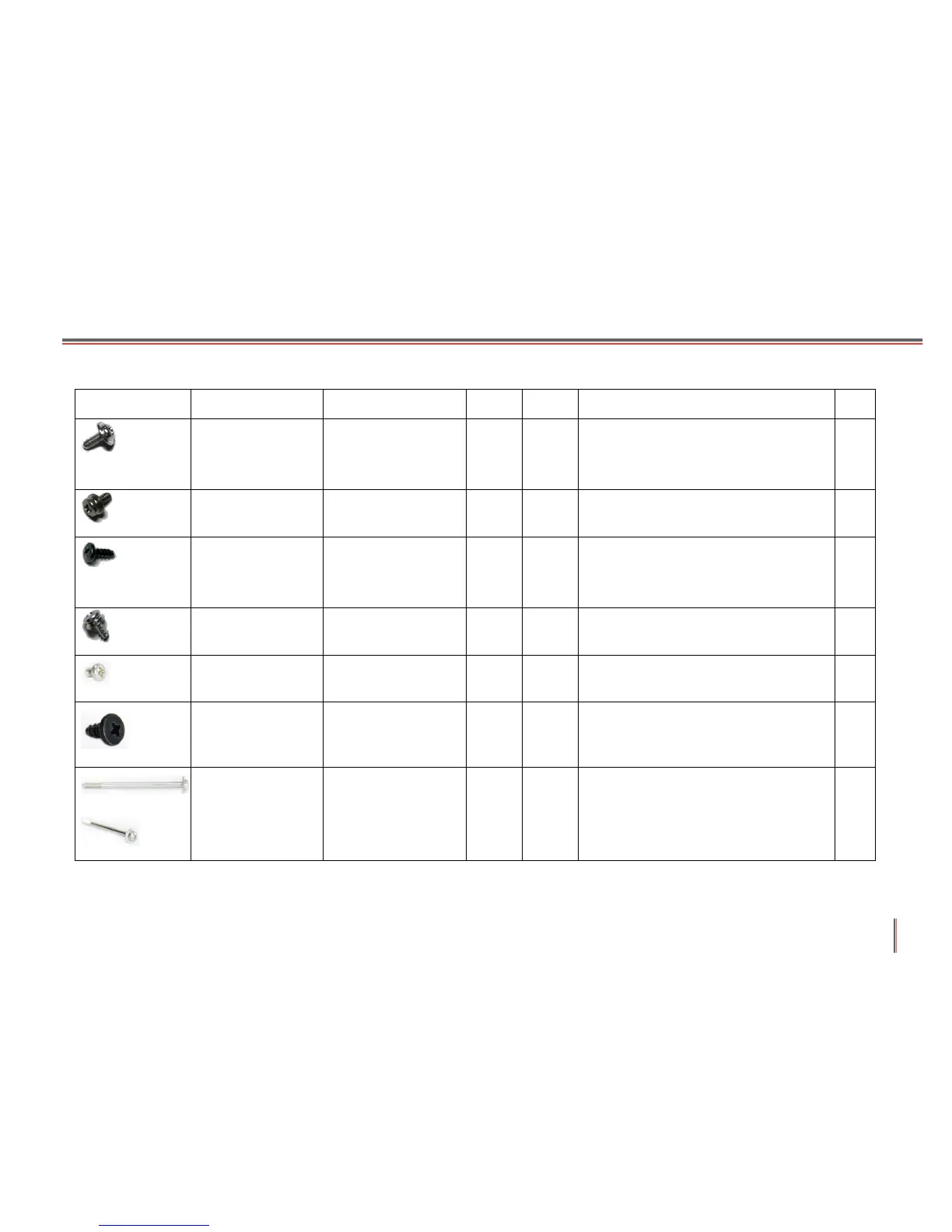

Appendix 5 The screw
P/N
Type
Colour
Size
Location (quantity)
Total
YX0M-0006-PG0
Tapped, plain
Silver
M3x8
Top cover (4). Right side cover (1). Left side
cover (1). LSU (3).Fixing unit(4).Delivery
component
（
2
）
.Paper feed solenoid (1). Engine
side panel (5). Power board(1)
21
YX0M-0010-PG0
Tapped,integral spring
washer & washer
Silver
M3x8
Data board (4). Engine board (4).Power board(3)
11
YX0M-0002-PG0
Self-tapping
Black
M3x8
Operator panel (1).Duplex unit
（
3
）
Fixing paper
guide
（
2
）
Delivery Sensor base board
（
1
）
Bottom
Board
（
5
）
Transfer Sensor base board
（
1
）
.Paper
Feed Senser base board
（
1
）
14
YX0M-0004-PG0
Self-tapping,integral
spring washer & washer
Silver
M3x8
Fuser heater (2)
2
YXOM-0016-PG0
Tapped, plain
Silver
M3x3.5
Main motor(3). Duplex Electromagnet Fixing
Plate
（
2
）
5
YX0M-0029-PG0
Self-tapping
Black
M4x8
Paper transport unit (12).Paper tray（2）
14
YX0M-0037-PG0
Tapped, plain
Silver
M3x48
Fan(3)
3
