Parker GVM Series User Manual

- 50 –
18-06-08 PVD3668_GB_GVM_June_2018

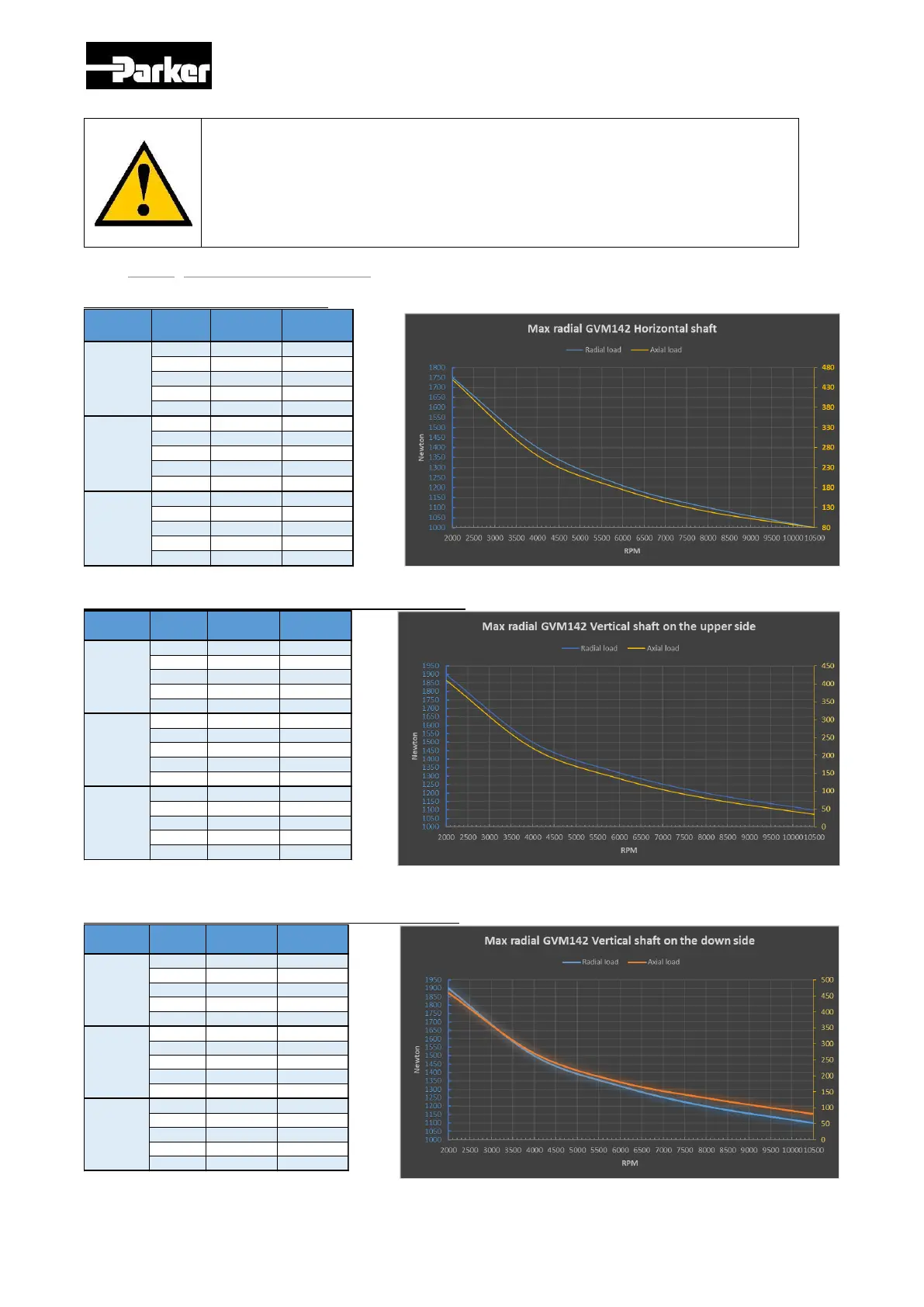

3.5.1. Axial and Radial load
GVM142 Horizontal mounting
GVM142 Vertical Mounting – Shaft Upper side
GVM142 Vertical Mounting – Shaft down side
Lenght rpm
Max radial
Load Pump (N)
Max axial load
(N)
10500 1000 80
8000 1100 120
6000 1210 175
4000 1400 260
2000 1750 450
10500 1000 80
8000 1100 120
6000 1210 175
4000 1400 260
2000 1750 450
10500 1000 80
8000 1100 120
6000 1210 175
4000 1400 260
2000 1750 450
GVM142-100
GVM142-75
GVM142-50
Lenght rpm
Max radial
Load Pump (N)
Max axial load
(N)
10500 1100 35
8000 1200 80
6000 1320 135
4000 1500 220
2000 1900 410
10500 1100 45
8000 1200 90
6000 1320 140
4000 1500 230
2000 1900 410
10500 1075 55
8000 1175 100
6000 1300 150
4000 1475 240
2000 1850 430
GVM142-100
GVM142-75
GVM142-50
Lenght rpm
Max radial
Load Pump (N)
Max axial load
(N)
10500 1100 80
8000 1200 130
6000 1320 180
4000 1500 270
2000 1900 460
10500 1100 80
8000 1200 130
6000 1320 180
4000 1500 270
2000 1900 460
10500 1075 80
8000 1175 130
6000 1300 180
4000 1475 270
2000 1850 460
GVM142-50
GVM142-100
GVM142-75
The bearing arrangement is made with 2 ball bearings (one on the
shaft end + another on the rear). The rear bearing is blocked in axial
translation and the front one is free in translation to avoid any stress
from the shaft thermal expansion during the running.
So, it is important not to block in translation the shaft expansion by any
extra bearing or similar device.
