Connecting External Devices to IntelliChem Controller
External Devices such as pumps, CO2 devices and alarms can be connected to either
of the dry contact relays (EX_RELAY 1 and EX_RELAY 2). Relay contact ratings: 5
AMPS, 250VAC/30VDC located on the IntelliChem
®
Controller circuit board. See wiring
diagram below and “Plumbing the Flow Cell” on page 35.

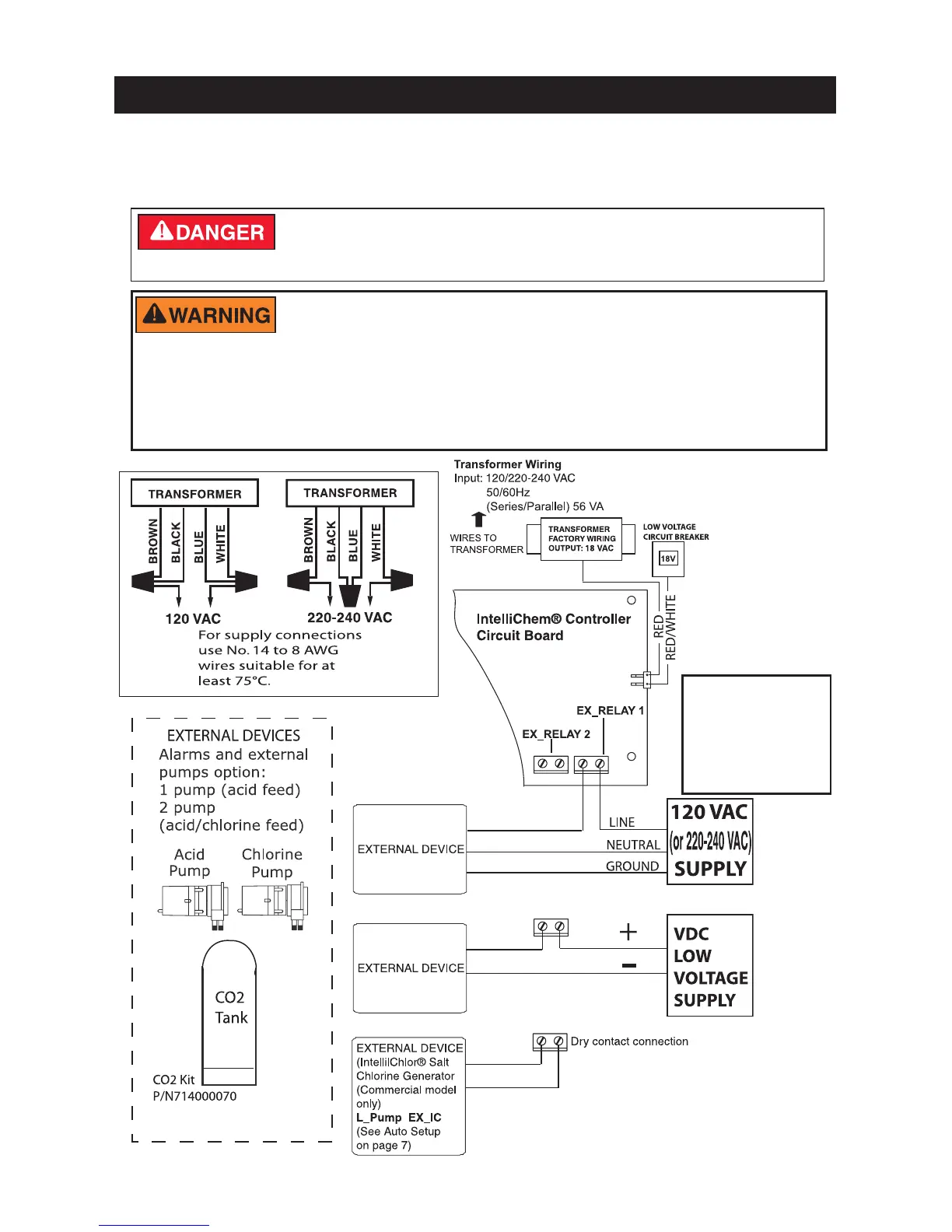

External Device Wiring Diagram
Wiring external devices must be performed by a licensed
certified electrician or a qualified pool professional in accordance with the
current National Electrical Code (NEC), NFPA 70 or the Canadian Electrical Code
(CEC), CSA C22.1. All applicable local installation codes and ordinances must
also be adhered to. Improper installation will create an electrical hazard which
could result in death or serious injury to pool users, installers or others due to
electrical shock, and may also cause damage to property.
BE SURE TO DISCONNECT ALL SUPPLY CONNECTIONS BEFORE
SERVICING THE INTELLICHEM
®
CONTROLLER. AC Power may be
supplied to the relay terminals Ex_Relay1 and Ex_Relay2 from other sources.
External Devices:
EX_RELAY 1 and
EX_RELAY 2,
contact ratings:
5 AMPS,
250 VAC/30 VDC
