DISPLAY ICONS 700 CONTROLLER 27
Rev E

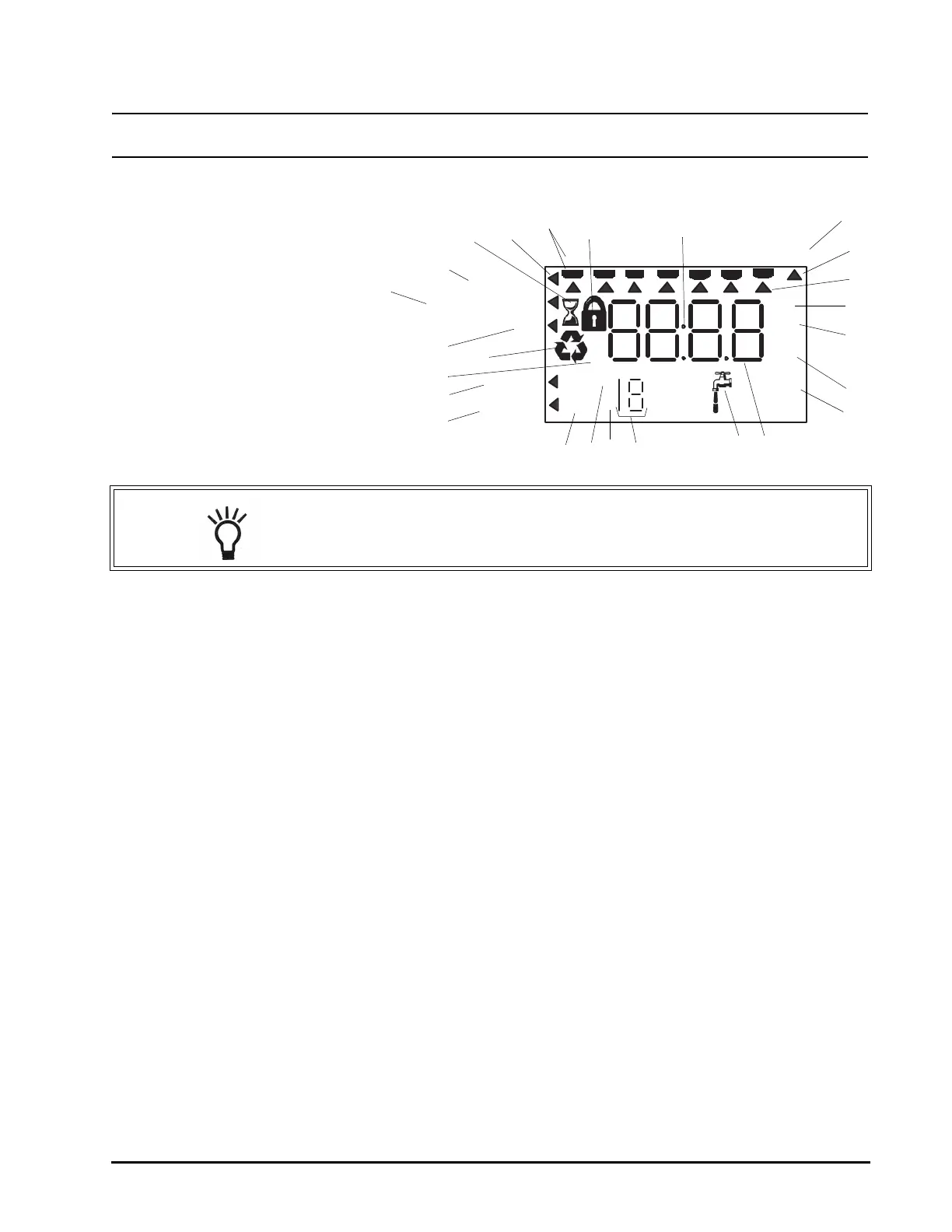

DISPLAY ICONS 700 CONTROLLER
Figure 17
1. Days of the week. The flag immediately below the day will appear when
that day has been programmed as a day the system should regenerate
(used with 7-day timer programming).
2. See #3
3. This cursor is displayed when the days between regeneration are being
programmed (used with .5 to 99 day regeneration programming).
4. One of these cursors will be displayed to indicate which day will be
programmed into the controller.
5. "PM" indicates that the time displayed is between 12:00 noon and 12:00
midnight (there is no AM indicator). PM indicator is not used if clock mode
is set to 24-hour.
6. When "MIN" is displayed, the value entered is in minute increments.
7. When "Kg" is displayed, the value entered is in kilograms or kilograins.
8. Four digits used to display the time or program value. Also used for error
codes.
9. Colon flashes as part of the time display. Indicates normal operation.
10. Locked/unlocked indicator. In Level I programming this is displayed when
the current parameter is locked-out. It is also used in Level II
programming to indicate if the displayed parameter will be locked (icon
will flash) when controller is in Level I.
11. When "x2" is displayed, a second regeneration has been called for.
12. The recycle sign is displayed (flashing) when a regeneration at the next
time of regeneration has been called for. Also displayed (continuous)
when in regeneration.
13. The display cursor is next to "SALT" when programming the amount of
regenerant. If the controller is on a 3-cycle filter then backwash time is
programmed.
PM
MIN
KGx2
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
x100P
H
C
Capacity
Hardness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2021
22
23
24
25
NOTE: In normal operation and during programming, only a few of the
icons will actually be displayed.
