Distance Sensors
Settings
7.2 Menu Structure

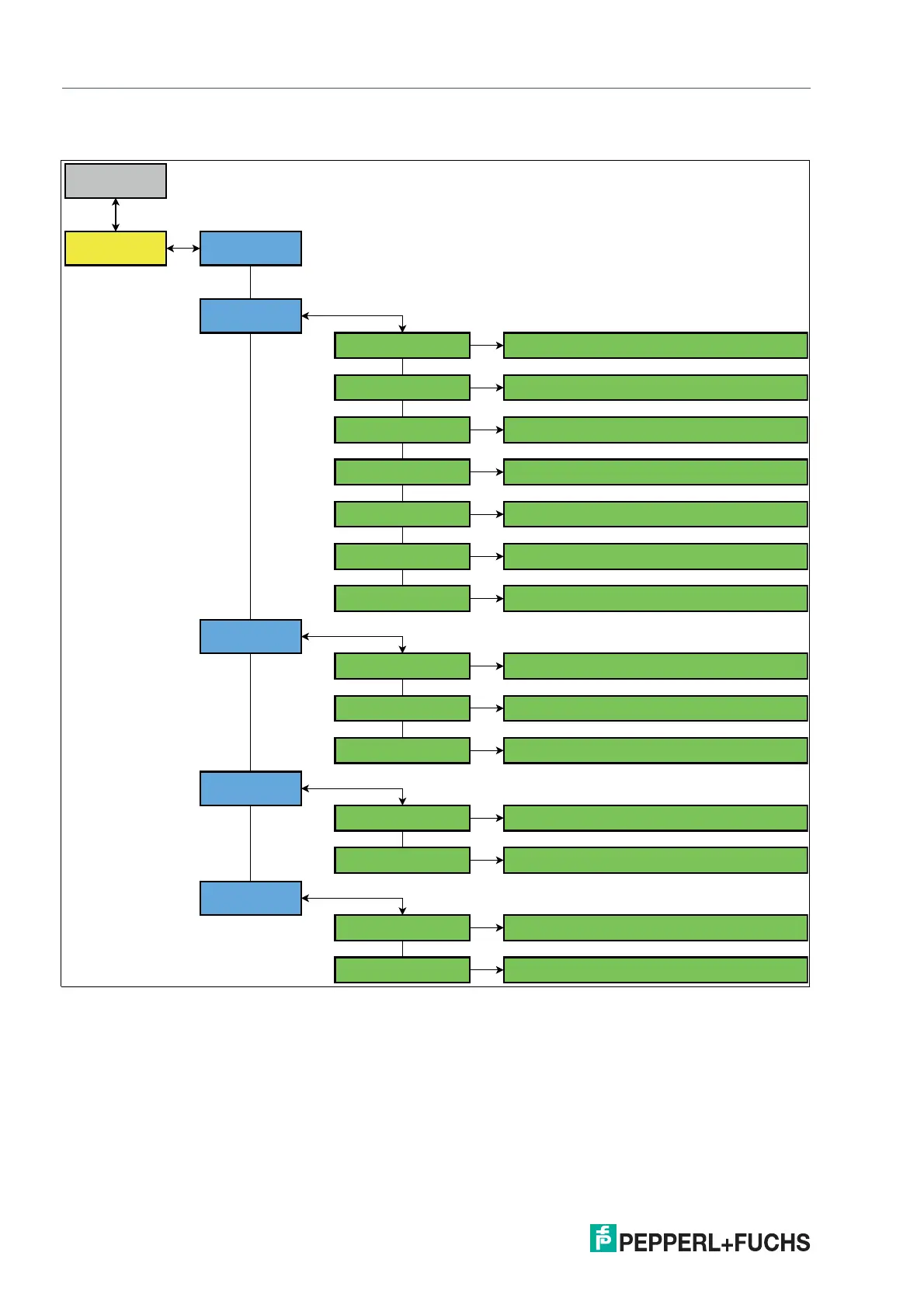

Figure 7.2 Menu Structure in English
Status view
Display off
Main menu
Measurement
Measurement delay List: 25 ms / 12 ms / 6 ms / 3 ms
Offset
Counting direction
Error subst. value
Error delay
Serial
Display
Miscellaneous
Input field: Value [mm] (0 mm)
List: Forward / Reverse
List: Last valid value / Predefined: 0 mm / Predefined: -1 mm
Input field: 0 ... 9999 [ms] (50 ms)
Language
Orientation
Resolution List: 1 mm / 0.1 mm
List: Normal / Upside down
Output mode List: Deactivated / SSI: Binary code / SSI: Gray code
Factory settings Dialog: Restore factory settings?
Versions Info: Firmware / Hardware / Interface
Display timeout List: 5 min / 30 min / 60 min
Smart Hold List: Enabled / Disabled
SSI Error Bit List: Substitution value / Subst. value|Error / Subst.|Error|Warning
Liste: English / Deutsch
