WCS* Read Head Position Encoding System
SSI Interface (LS3xx*)
5.2 Hardware Configuration
You can change the hardware and software configuration of the read head in the read head.
The changes to the read head type are made with a DIP switch or with two if you have a read
head with the "Display" option: S1 (1) is a DIP switch with four switch positions and S1D (2) is a
DIP switch with two switch positions.

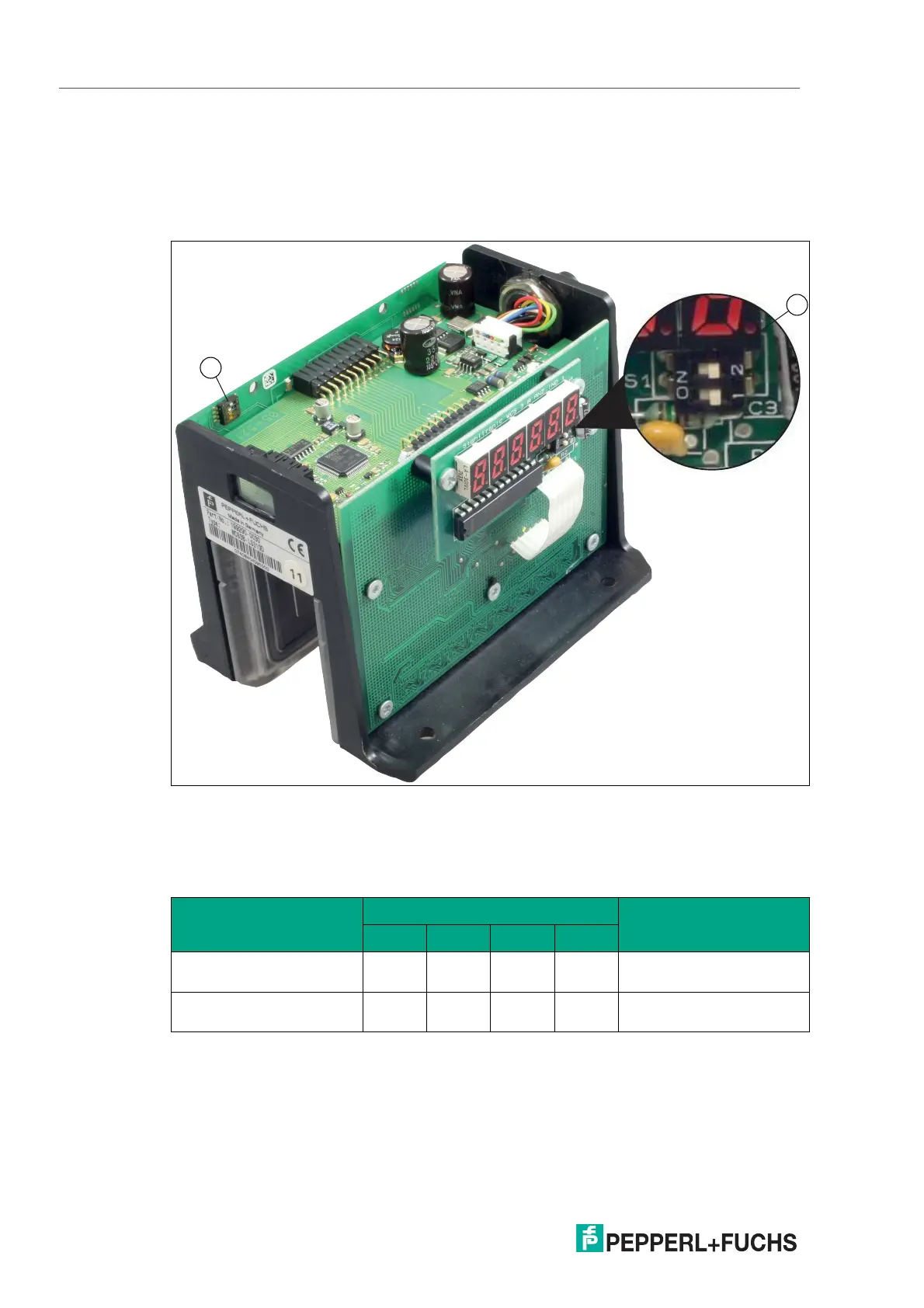

Figure 5.3 Configuration switch positions
1. Configuration switch S1, 4-way (data format, contamination detection)
2. Configuration switch S1D, 2-way (display)
Changing the data format
Read head type
Configuration switch "S1"
Code1 2 3 4
WCS2B-LS310
WCS3B-LS310
ON OFF X X Binary
WCS2B-LS311
WCS3B-LS311
OFF OFF X X Gray
1
2
