Pepperl+Fuchs WCS Series User Manual

2020-01
42
WCS* Read Head Position Encoding System
CANopen Interface (LS4xx*)

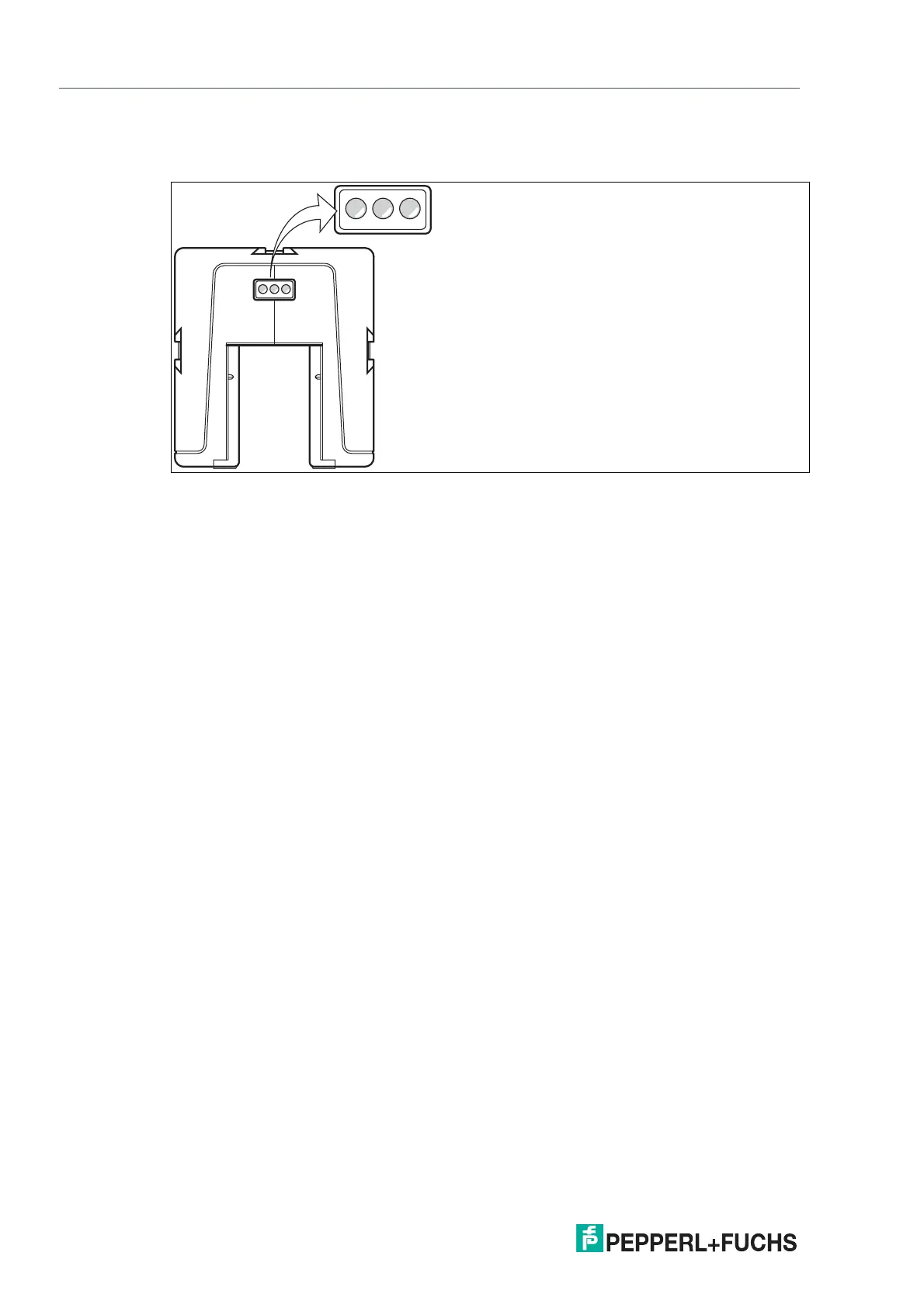

6.5 LED Status Indication
WCS3B-LS4xx*
1 Green LED
2 Yellow LED
3 Red LED
Display Meaning
Operating indicator Green LED: Power on
Data flow indicator Yellow LED: Data transfer active
Fault indicator Red LED
Flashing: Read head outside the code rail
Permanently lit: Internal diagnostic error
Contamination indicator Yellow LED and red LED flashing alternately: Read
head lens dirty (f=1.5 Hz)
Function indicator Yellow LED and red LED light up for 2 seconds after
power on or reset
1 2 3
