Pepperl+Fuchs WCS Series User Manual

WCS* Read Head Position Encoding System
EtherNet/IP Interface (LS5xx*)
2020-01
53

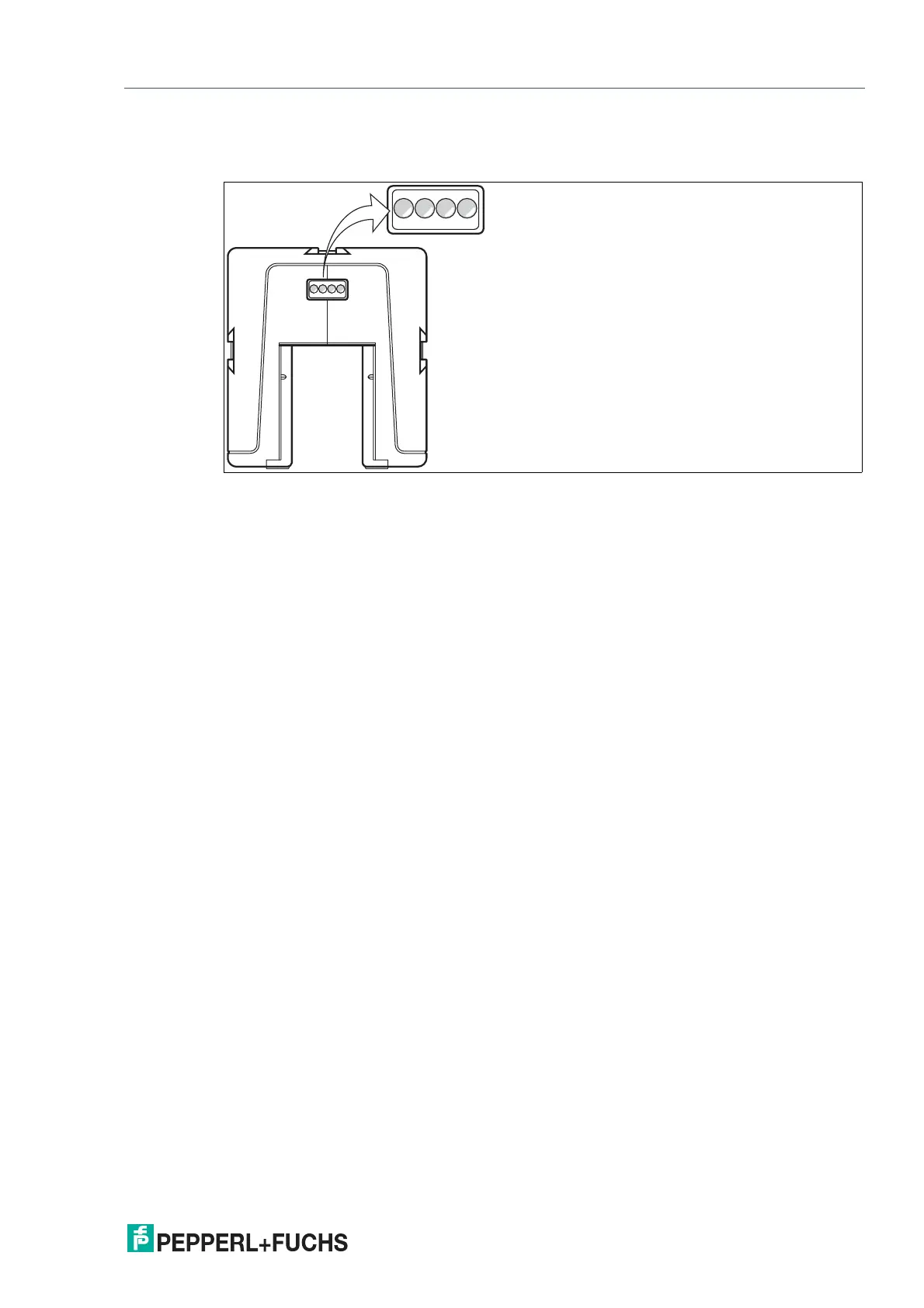

7.5 LED Status Indication
WCS3B-LS5xx*
1 Dual red/green LED
2 Green LED
3 Yellow LED
4 Red LED
Display Meaning
Status indicator Dual red/green LED
Green: Code rail detected, normal function
Red: System error
Flashing red: No code rail detected
Ethernet link Green LED
On: Fieldbus connection OK
Ethernet RX/TX Yellow LED
Flashing: Data transfer
Ethernet communication Red LED
On: Communication error
21 3 4
