020331Y Digital multimeter
HT coil

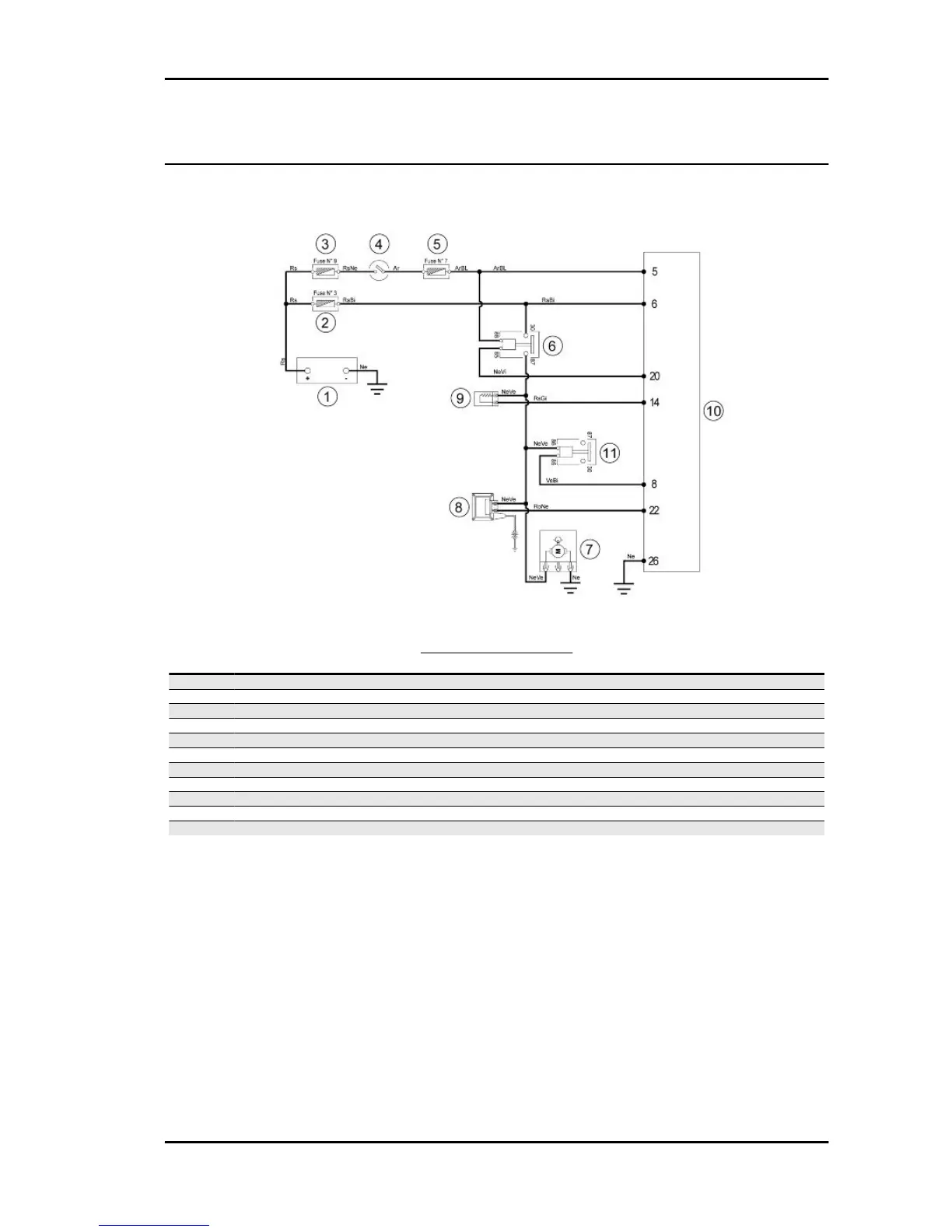

CARICHI INIEZIONE
Specification
Desc./Quantity
1 Battery 12V - 12 Ah
2 Fusibile N° 3 10 A
3 Fuse No. 9 30A
4 Ignition switch contacts
5 Fuse No. 7 5A
6 Injection load solenoid
7 Fuel pump
8 HV coil
9 Fuel injector
10 Injection ECU
11 Electric fan solenoid
The ignition system is integrated with the injection and it is a high-efficiency inductive type ignition.
The control unit controls two important parameters:
- Ignition advance
This is optimised from moment to moment in accordance with the engine revs, engine load, temperature
and environmental pressure.
With idle engine, it is optimised to obtain the stabilisation of the speed at 1450 ± 50 R/1'.
- Magnetisation time
The coil magnetisation time is controlled by the control unit. The ignition power is increased during the
engine start-up phase.
The injection system recognises the four-stroke cycle so the ignition is only commanded in the com-
pression phase.
MSS X10 500ie Executive Injection
INJEC - 135

PIAGGIO MSS X10 500ie Executive Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Cooling System	Liquid cooled
Fuel System	Electronic fuel injection
Seat Height	760 mm
Fuel Capacity	15.5 liters
ABS	Yes
Front Tire	120/70-15
Width	800 mm
Torque	46 Nm @ 5, 250 rpm
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual hydraulic shock absorbers
Front Brake	Double disc
Rear Brake	Single disc
Rear Tire	150/70-13
