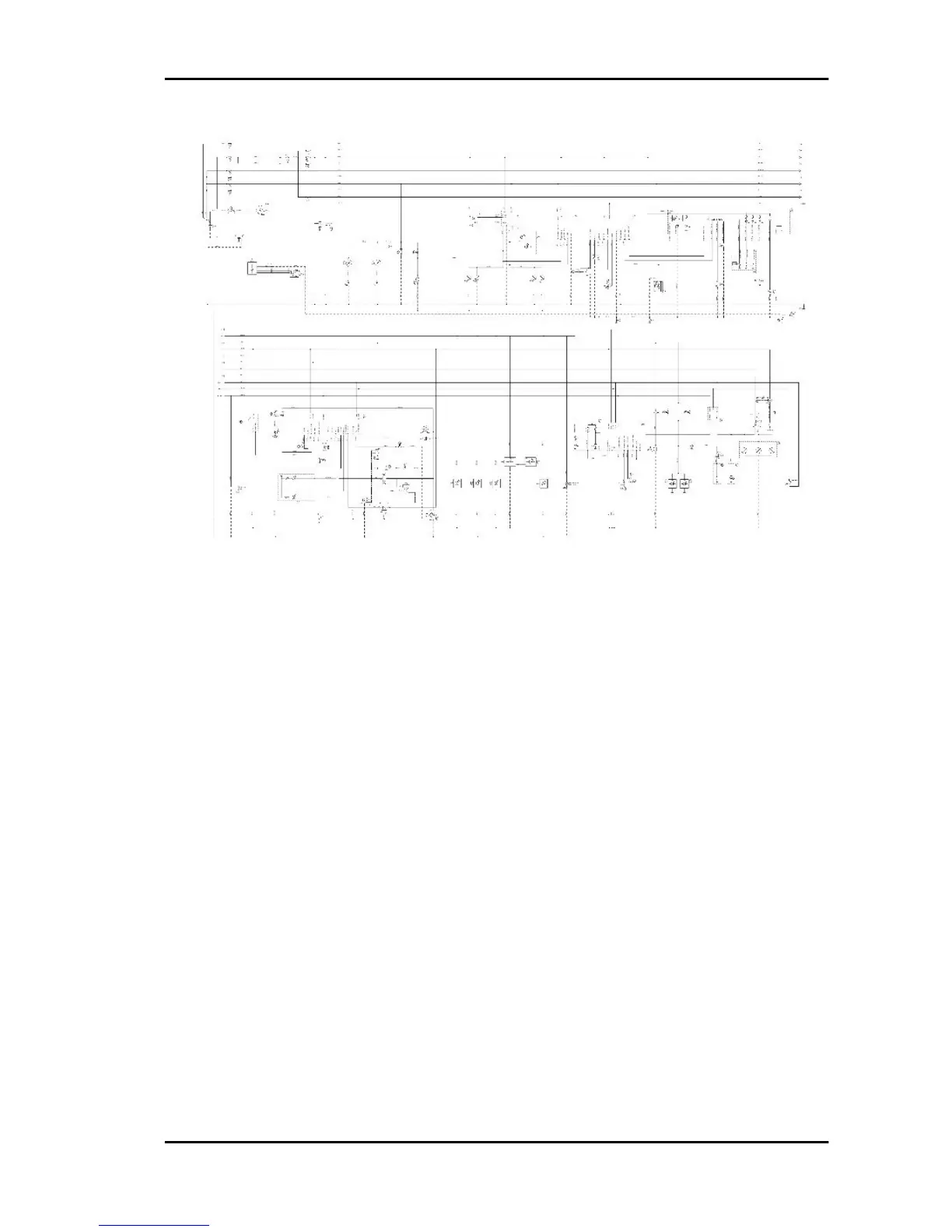

KEY
1. 12v-10Ah battery
2. Starter motor
3. Starter relay contact
4. Starter relay coil
5. Regulator
6. Flywheel
7. Chassis ground
8. Chassis engine-ground
9. Ignition switch
10. Fuse No. 1 - 15A
11. Fuse No. 2 - 10A
12. Fuse No. 3 - 7.5A
13. Fuse No. 4 - 7.5A
14. Fuse No. 5 - 7.5A
15. Fuses No. 6 - 7.5A
16. Fuse No. 7 - 5A
17. Fuse No. 8 - 3A
18. Fuse No. 9 - 30A
19. USB socket
MSS X10 500ie Executive Electrical system
ELE SYS - 39
