PIAGGIO MSS X10 500ie Executive User Manual

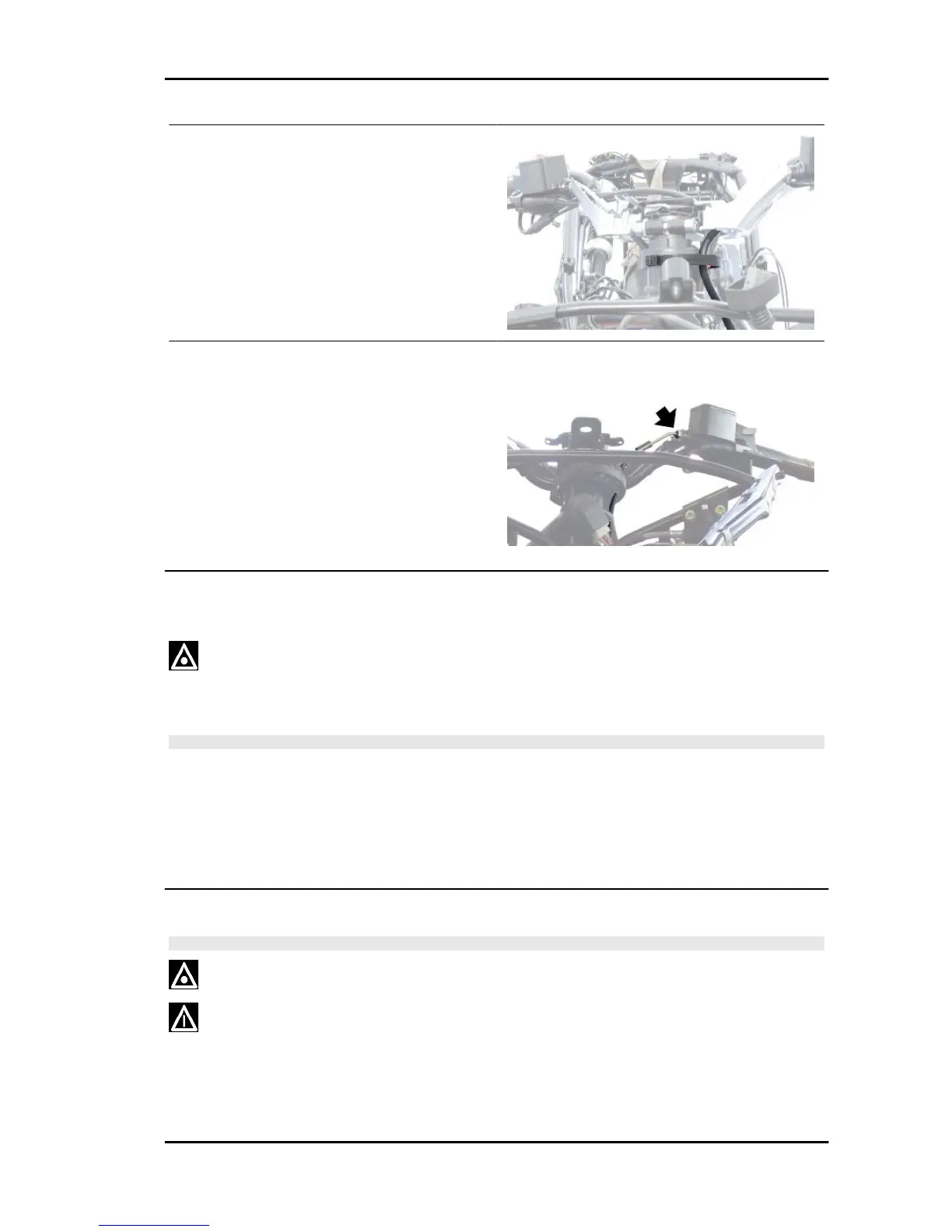

- Release the pipes from the collar.
- Disconnect the pipes from the left brake pump.
INSTALLAZIONE TUBAZIONI FRENO
- Per il montaggio eseguire le operazioni di smontaggio in senso inverso.
THE CONTROL UNIT, SUPPLIED AS A SPARE, IS SEALED AND COMES WITH BRAKE FLUID.
ANY LOSS OF FLUID DUE TO INSTALLATION OPERATIONS CAN BE RESET BY TOPPING UP
THE SYSTEM.
CAUTION
ONCE REFITTING IS FINISHED, BLEED THE SYSTEM.
Locking torques (N*m)
Raccordo olio pompa-tubo 13÷18 Brake fluid pipe-calliper fitting 20 ÷ 25 Front calliper pipe
tightening - distribution mechanism 20 ÷ 25 Brake pipes fixing screw at the distribution mech-
anism 20 ÷ 25 Pump pipe grommet screw - clamp 6 - 10 Pipe fittings - ABS control unit 13 - 18
Rear brake calliper-pipe fitting 20 ÷ 25
Parking brake
CAUTION
LOWERING THE SIDE STAND SIMULTANEOUSLY MOVES THE PARKING BRAKE. BEFORE
LEAVING BE SURE TO HAVE STORED IT.
MSS X10 500ie Executive Braking system
BRAK SYS - 187

PIAGGIO MSS X10 500ie Executive Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Cooling System	Liquid cooled
Fuel System	Electronic fuel injection
Seat Height	760 mm
Fuel Capacity	15.5 liters
ABS	Yes
Front Tire	120/70-15
Width	800 mm
Torque	46 Nm @ 5, 250 rpm
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual hydraulic shock absorbers
Front Brake	Double disc
Rear Brake	Single disc
Rear Tire	150/70-13
