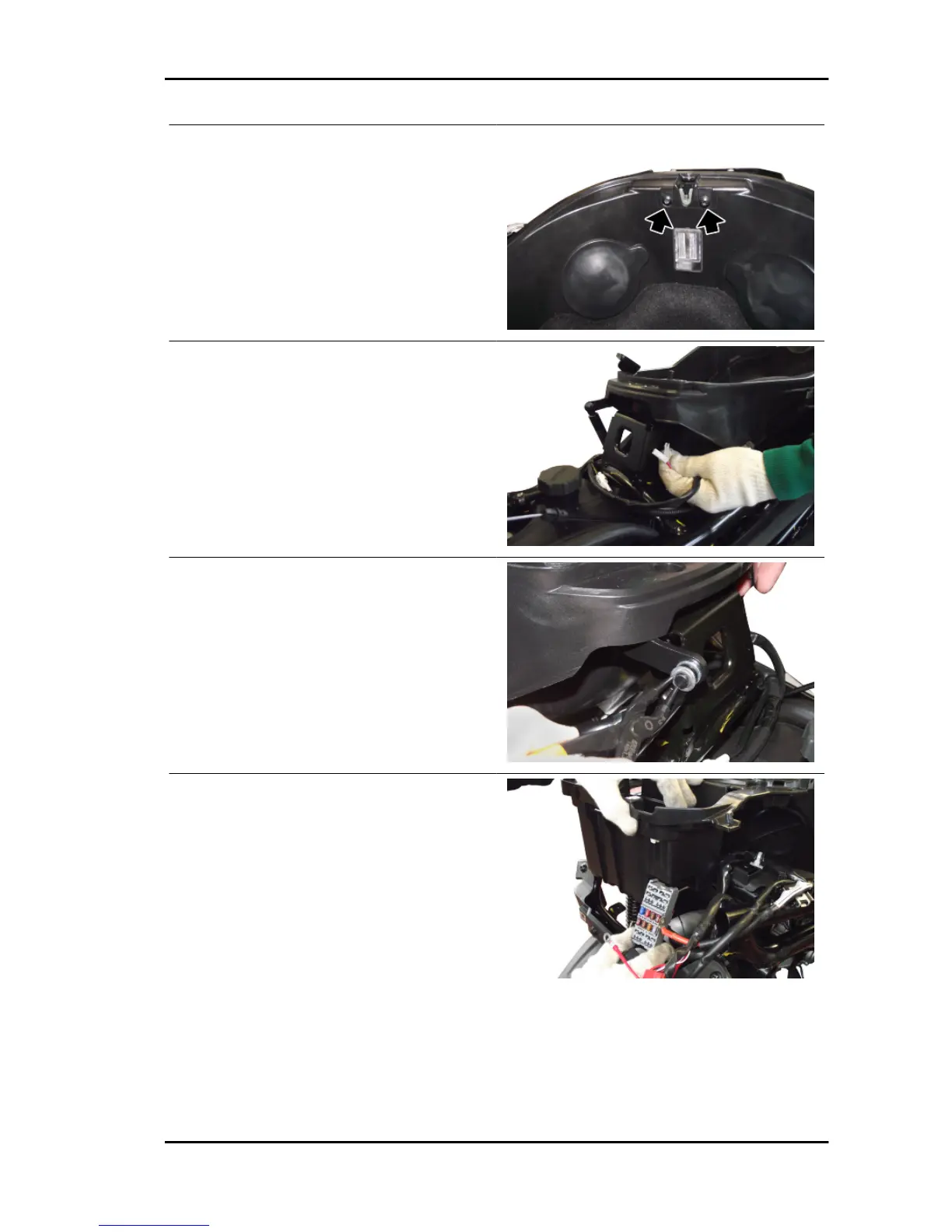

- Undo and remove the two screws from inside the
helmet compartment and release the saddle lock.
- Disconnect the two connectors of the helmet
compartment light bulb switch.
- Remove the Seeger ring and, retrieving the
washer, remove the saddle lifting piston from the
linkage.
- Remove the three relays and remove the fuse
box from below.
MSS X10 500ie Executive Chassis
CHAS - 215

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the PIAGGIO MSS X10 500ie Executive and is the answer not in the manual?

PIAGGIO MSS X10 500ie Executive Specifications

General IconGeneral
Engine TypeSingle cylinder, 4-stroke
Displacement493 cc
Cooling SystemLiquid cooled
Fuel SystemElectronic fuel injection
Seat Height760 mm
Fuel Capacity15.5 liters
ABSYes
Front Tire120/70-15
Width800 mm
Torque46 Nm @ 5, 250 rpm
TransmissionCVT
Front SuspensionTelescopic fork
Rear SuspensionDual hydraulic shock absorbers
Front BrakeDouble disc
Rear BrakeSingle disc
Rear Tire150/70-13
