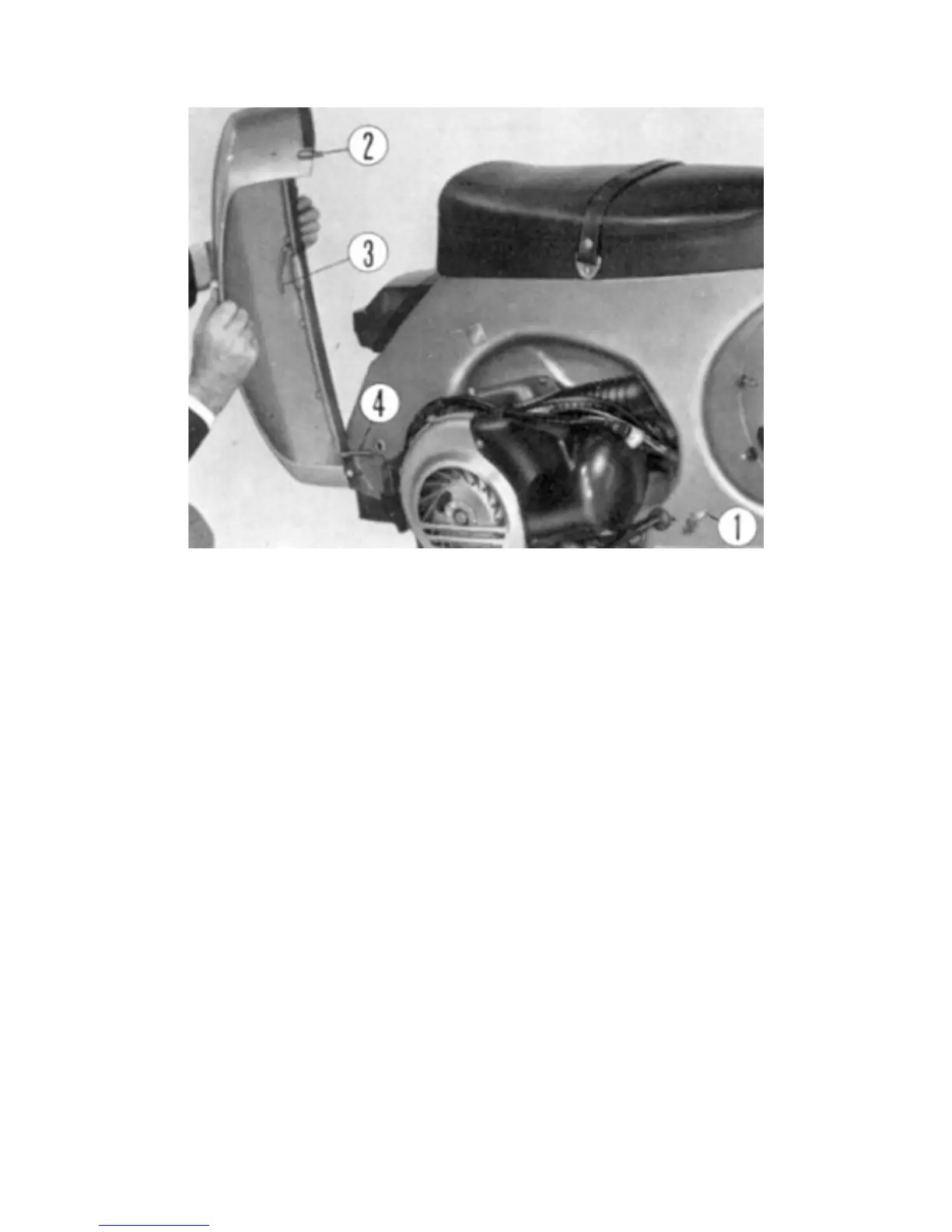

Fig. 10 - Removing engine cowl.
1. Lever for locking cowl - 2. Front locating pin - 3. Clasp securing cowl to chassis - 4.
Rear hooked pivot pin.
SPARK PLUG REMOVAL
For removing the spark plug disconnect the H. T. lead and extract the spark plug using the
box wrench (fig. 10).
CHANGING OIL IN GEAR CASE
Drain off the crankcase through hole (see fig. 11).
Introduce a small quantity of flushing oil, run the engine a few seconds and drain off
again.
Refill gear box with about 250 gr. of new oil (up to level of filling hole). This operation of
changing oil should be carried out with warm engine.
