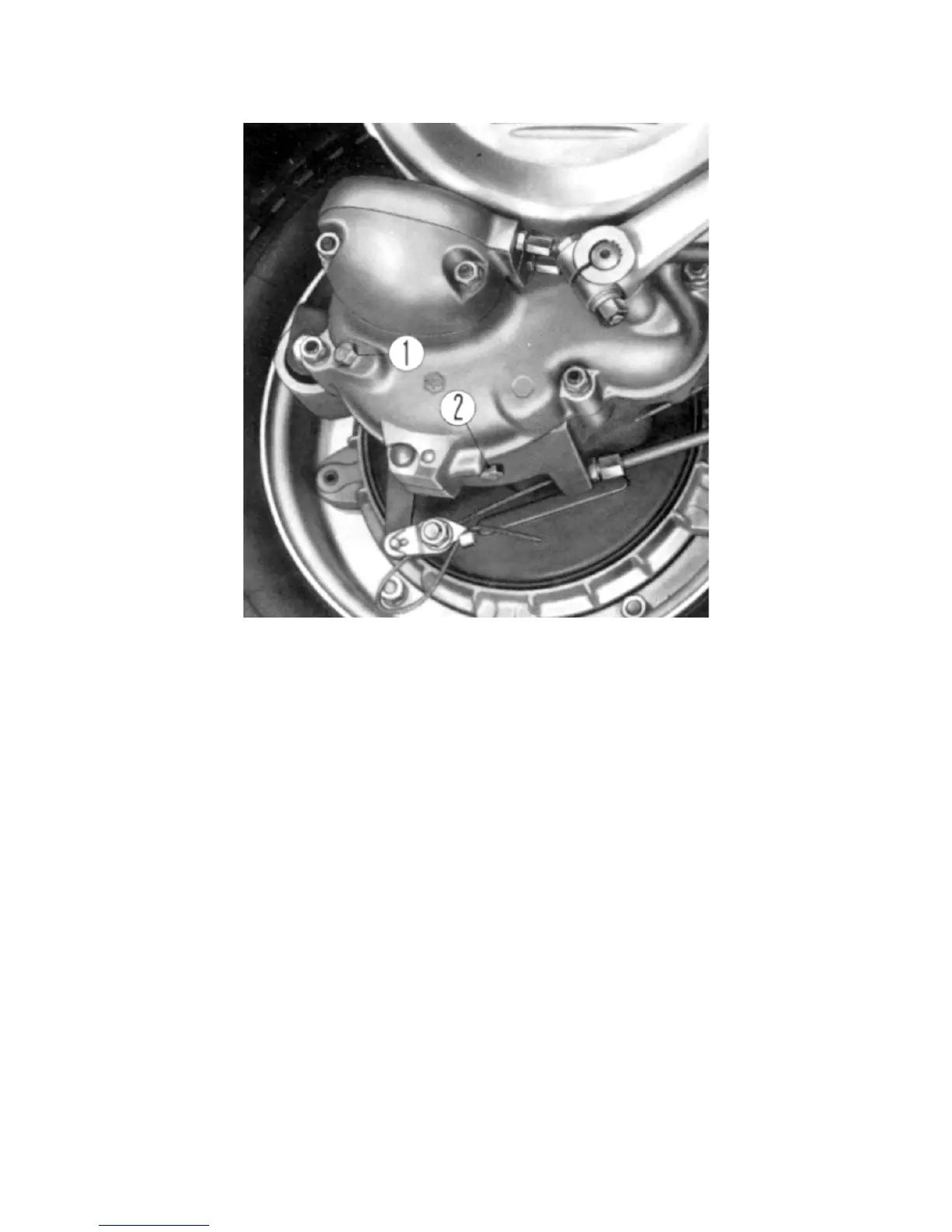

Fig. 11 Oil filler hole (1); oil draining hole (2).
DISMANTLING AIR FILTER
For extracting the air filter «A» (fig. 12) remove the engine cowl (fig. 10) and air cleaner
case cap. Unscrew the two screws « B » and extract the filter.
Note: When the air cleaner case is taken off, the carburettor is accessible.
DISMANTLING COOLING HOOD AND CYLINDER HEAD
Strip off engine cowl, (Fig. 10), disconnect H. T. lead, dismantle - cooling hood-
(fastenings «A» - «B» - «C», fig. 13) and unscrew the 4 nuts by means of a box wrench.
For remounting tighten retaining nuts alternately.
CHANGING WHEELS AND TYRES
For dismantling the wheels remove the securing nuts (fig. 15). On reassembly tighten
them alternately and progressively.
For removing the tyres, first deflate them and then remove the nuts jointing the two wheel
rims (fig. 17).
Notice - The front and rear wheel are interchangeable ones with another on condition that
the tyre pressures is regulated accordingly (pag. 26).
