BODY AND TRIM Rear Seat Support
Page 4-8 2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual
4
Rear Seat Support Installation, Continued:
4. Install arm rests (10 and 11) in reverse order of removal. Tighten hardware to 65 in-lb (7.345 N·m).
5. Install seat back (16) and seat back cap (17) in reverse order of removal. Tighten hardware to 6 ft-lb
(8.136 N·m).
6. Install bottom bench seat, aligning the front edge of the seat against the inside edge of the front trim, and
push down into place.

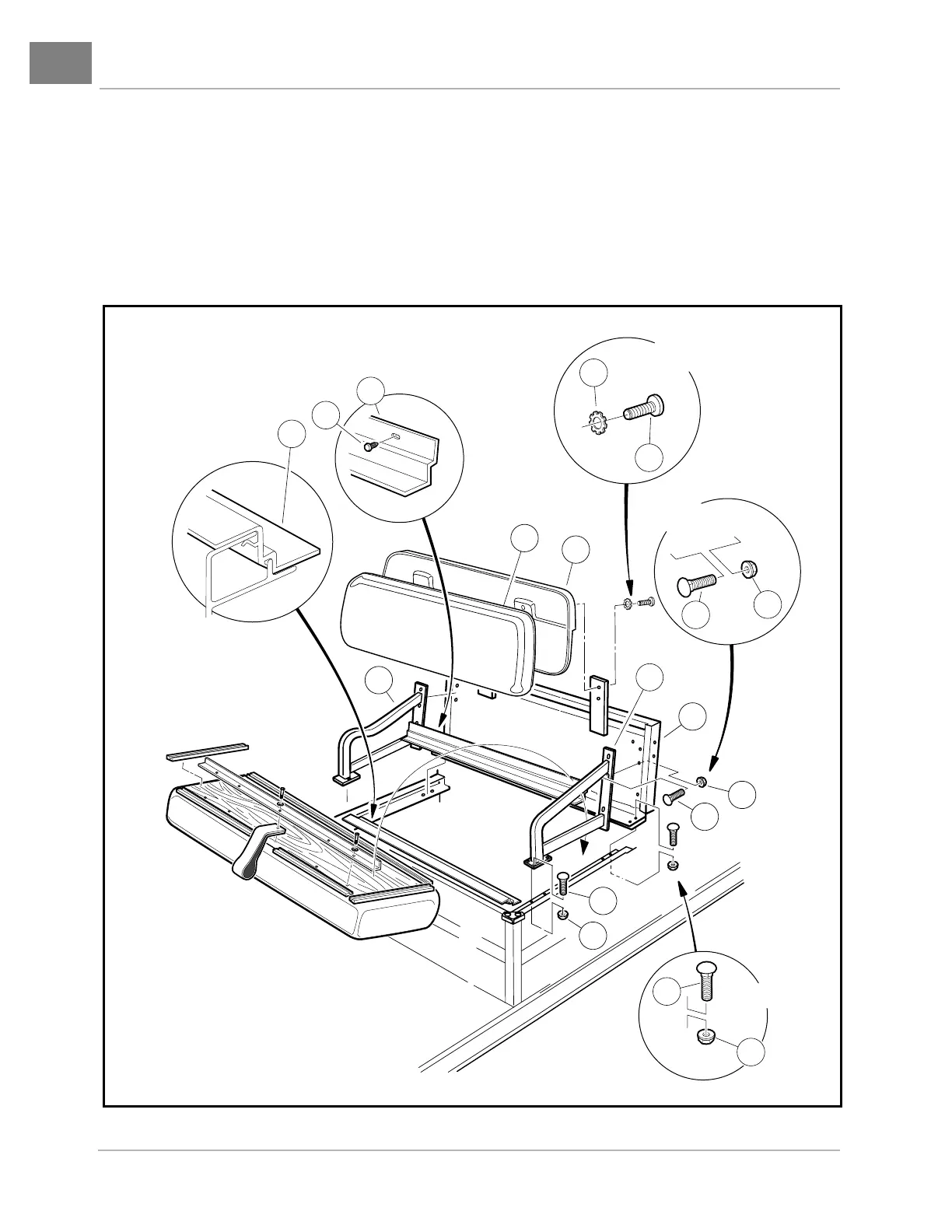

Figure 4-4 Pioneer 1200SE Rear Seat Support
14
12
13
17
10
16
TYPICAL 4
PLACES
18
19
11
22
TYPICAL 10
PLACES
20
21
TYPICAL 4
PLACES
23
24
20
21
21
20
