MC012C-AS00 TRANSAXLE: HYDRAULIC AND PARK BRAKE SYSTEMS Hydraulic Line and Hose Replacement
2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual Page 6-25
6
1.5. Use a 3/8-inch flare nut wrench to remove the same brake line (10 or 11) from the rear brake hose
at the I-beam of the vehicle frame.
1.6. Repeat steps 1.4 and 1.5 for the opposite rear brake line if necessary.
2. Pioneer 1200SE:
2.1. Chock the front wheels, release the park brake, and lift the rear of the vehicle with a chain hoist or
floor jack. See WARNING "Lift only one end..." in General Warning, Section 1, Page 1-1.
2.2. Place jack stands under the rear axle tubes and lower onto stands. See Figure 5-2, Section 5,
Page 5-3.

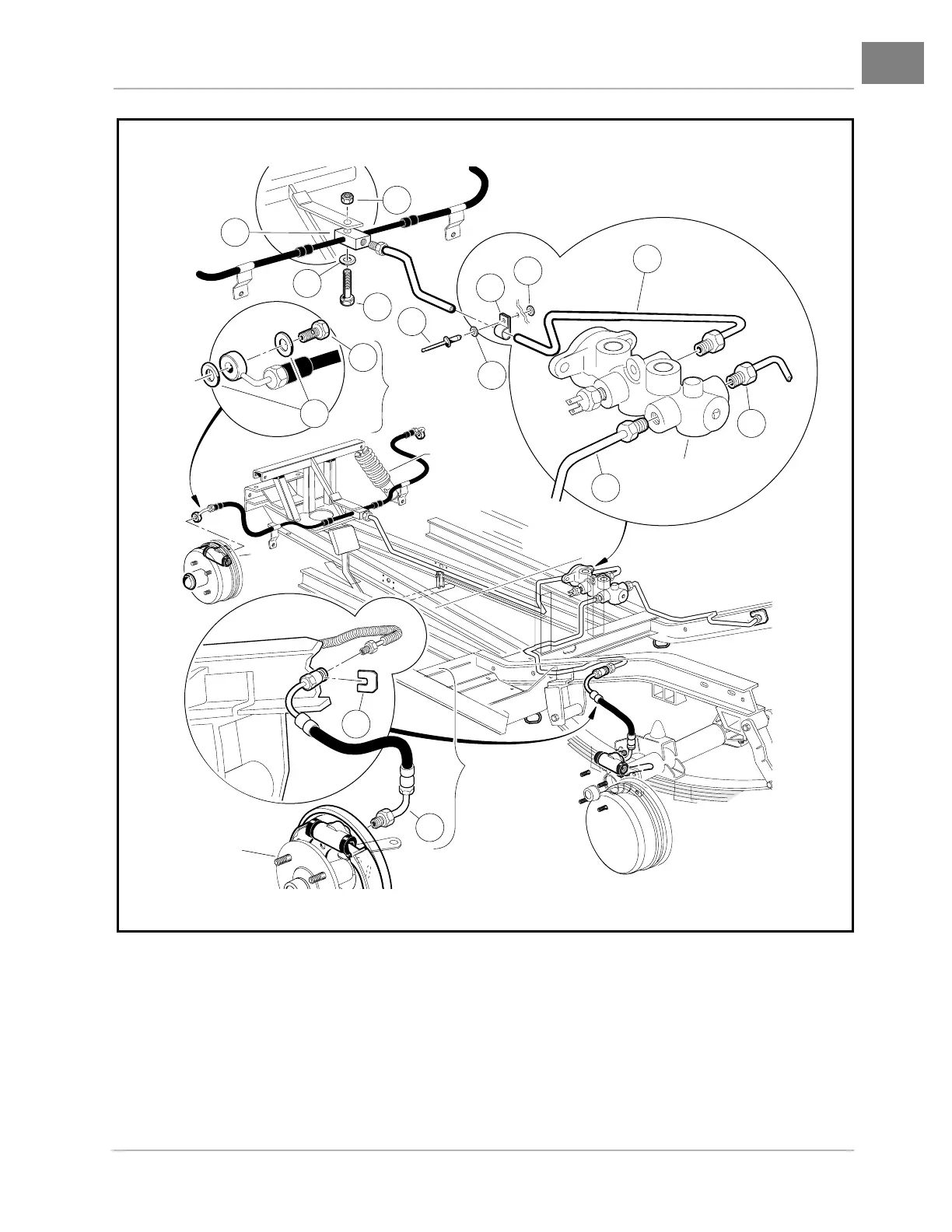

Figure 6-20 Pioneer 1200 Four-Wheel Hydraulic Brake System
TYPICAL
2 PLACES
TYPICAL
BOTH SIDES
TYPICAL
BOTH SIDES
5
7
8
14
14
9
2
1
3
6
12
REFERENCE
MASTER CYLINDER
4
10
11
REFERENCE
FRONT SUSPENSION
REFERENCE
REAR BRAKE
ASSEMBLY
REFERENCE
FRONT BRAKE
ASSEMBLY
13
