Pixsys ATR 236 User Manual

11 EN

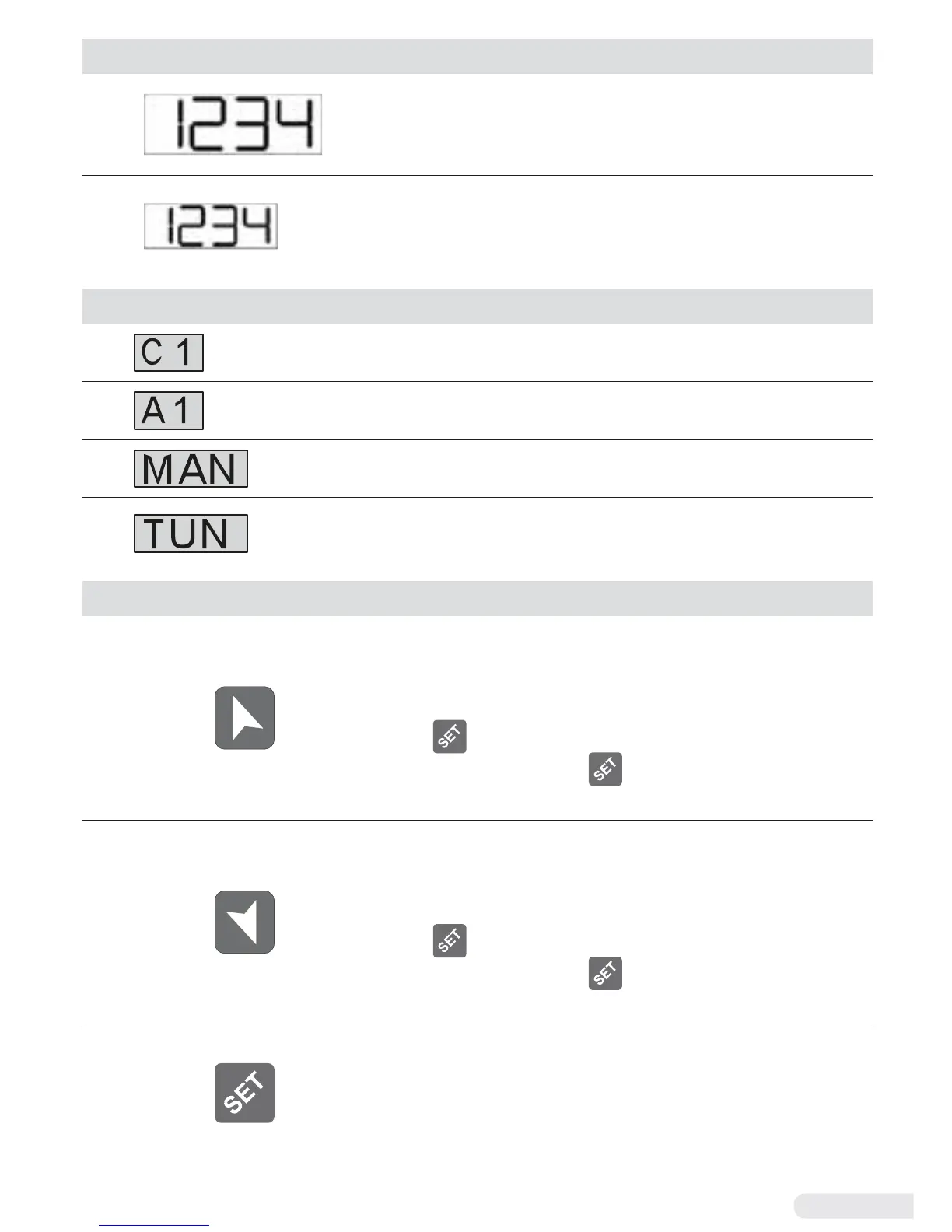

6.1 Numeric Indicators (Display)
1
Normally displays the process.
During the confi guration phase, it displays
the parameter being inserted.
2
Normally displays the setpoint.
During the confi guration phase, it displays
the parameter value being inserted.
6.2 Meaning of Status Lights (Led)
3 ON when the output command is on.
4
ON when the corresponding alarm is on.
5
ON when the “Manual” function is on.
6
ON when the controller is running an
“Autotune” cycle.
6.3 Keys
8
• Allows to increase the main setpoint.
• During the confi guration phase, allows to
slide through parameters. Together with
the
key it modifi es them.
• Pressed after the
key it allows to
increase the alarm setpoint.
9
• Allows to decrease the main setpoint.
• During the confi guration phase, allows to
slide through parameters. Together with
the
key it modifi es them.
• Pressed after the
key it allows to
decrease the alarm setpoint.
10
• Allows to display the alarm setpoint and
runs the autotuning function.
• Allows to vary the confi guration
parameters.
