Pixsys ATR 236 User Manual

17 EN
9

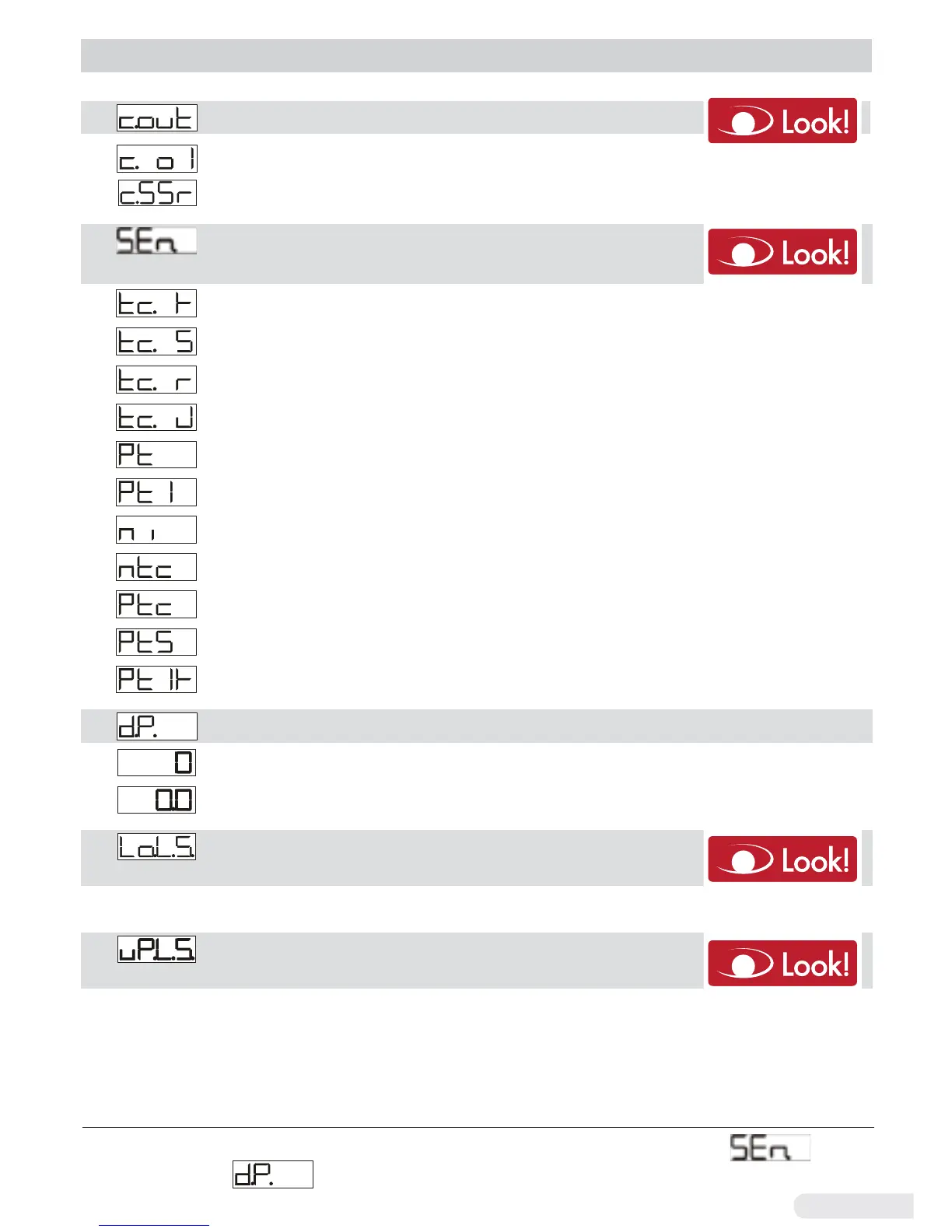

Table of Confi guration Parameters
1 Command Output: Command output type selection
Command Q1, alarm SSR (Default)
Command SSR, alarm Q1
2 Sensor: Analog input confi guration /
sensor selection
Tc-K (Default) -260…1360 °C
Tc-S -40…1760 °C
Tc-R -40…1760 °C
Tc-J -200…1200 °C
PT100 -200…600 °C
PT100 -200…140 °C
NI100 -60…180 °C
NTC10K -40…125 °C
PTC1K -50…150 °C
PT500 -100…600 °C
PT1000 -100…600 °C
3 Decimal Point: Select type of visualized decimal point
Default
1 Decimal
4 Lower Limit Setpoint: Lower limit selectable
for setpoint
-999…+9999 digit* (degrees if temperature), Default: 0.
5 Upper Limit Setpoint: Upper limit selectable
for setpoint
-999…+9999 digit* (degrees if temperature), Default: 1750.
The display of the decimal point depends on the setting of parameter and
the parameter
.
*

Pixsys ATR 236 Specifications

General

Brand	Pixsys
Model	ATR 236
Category	Temperature Controller
Language	English
