9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
3.45

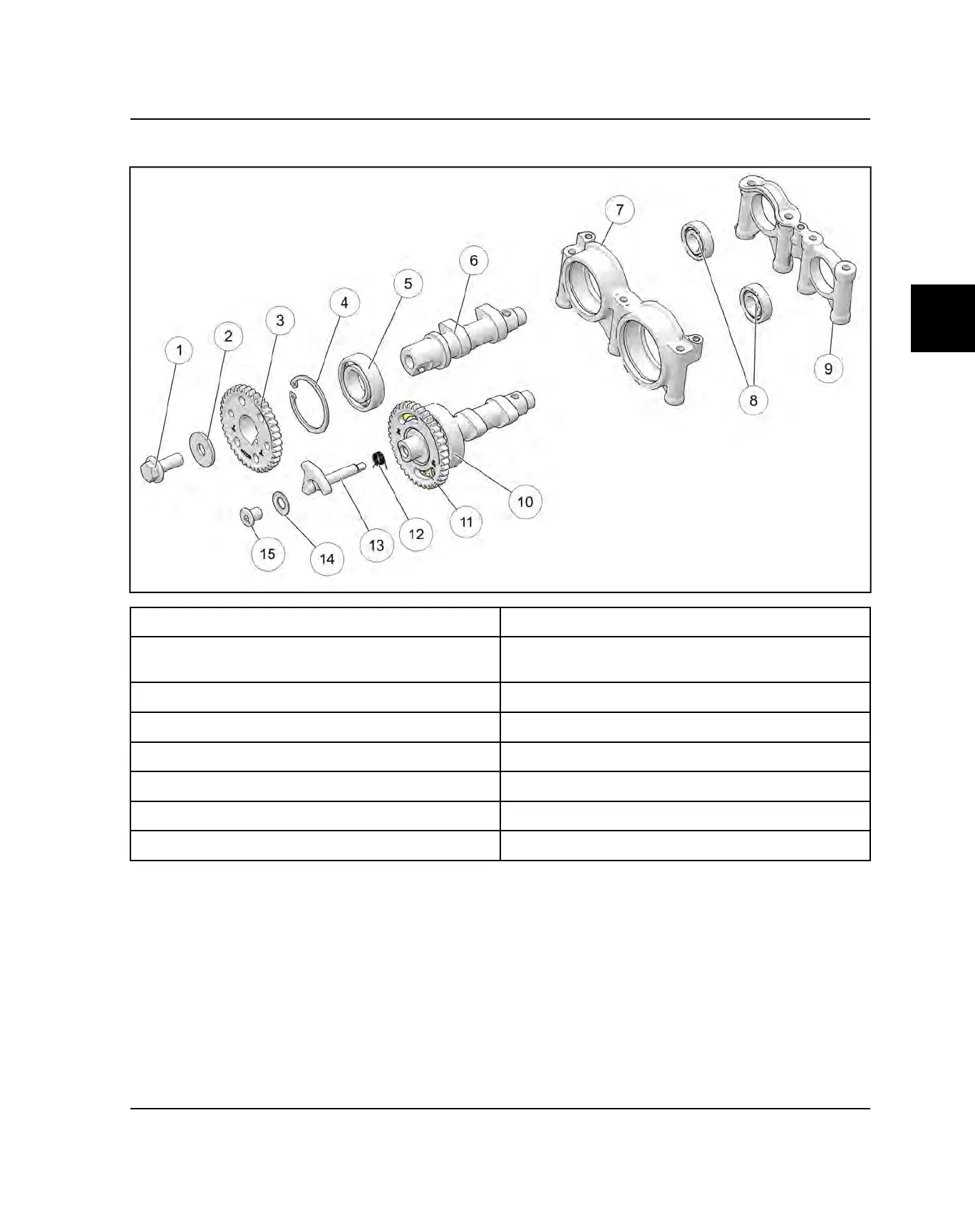

CAMSHAFT CARRIER DISASSEMBLY
q
Camshaft Sprocket Bolt
o
Bearing Support
w
Washer
a
Exhaust Camshaft (Sprocket, snap ring, and bearing
not serviceable.)
e
Intake Camshaft Sprocket
s
Snap Ring
r
Snap Ring
d
Decompression Spring
t
Bearing
f
Decompression Shaft
y
Intake Camshaft
g
Decompression Disc
u
Bearing Support
h
Screw
i
Bearing
