DISASSEMBLY / INSPECTION, FRONT GEAR-
CASE (ADC)

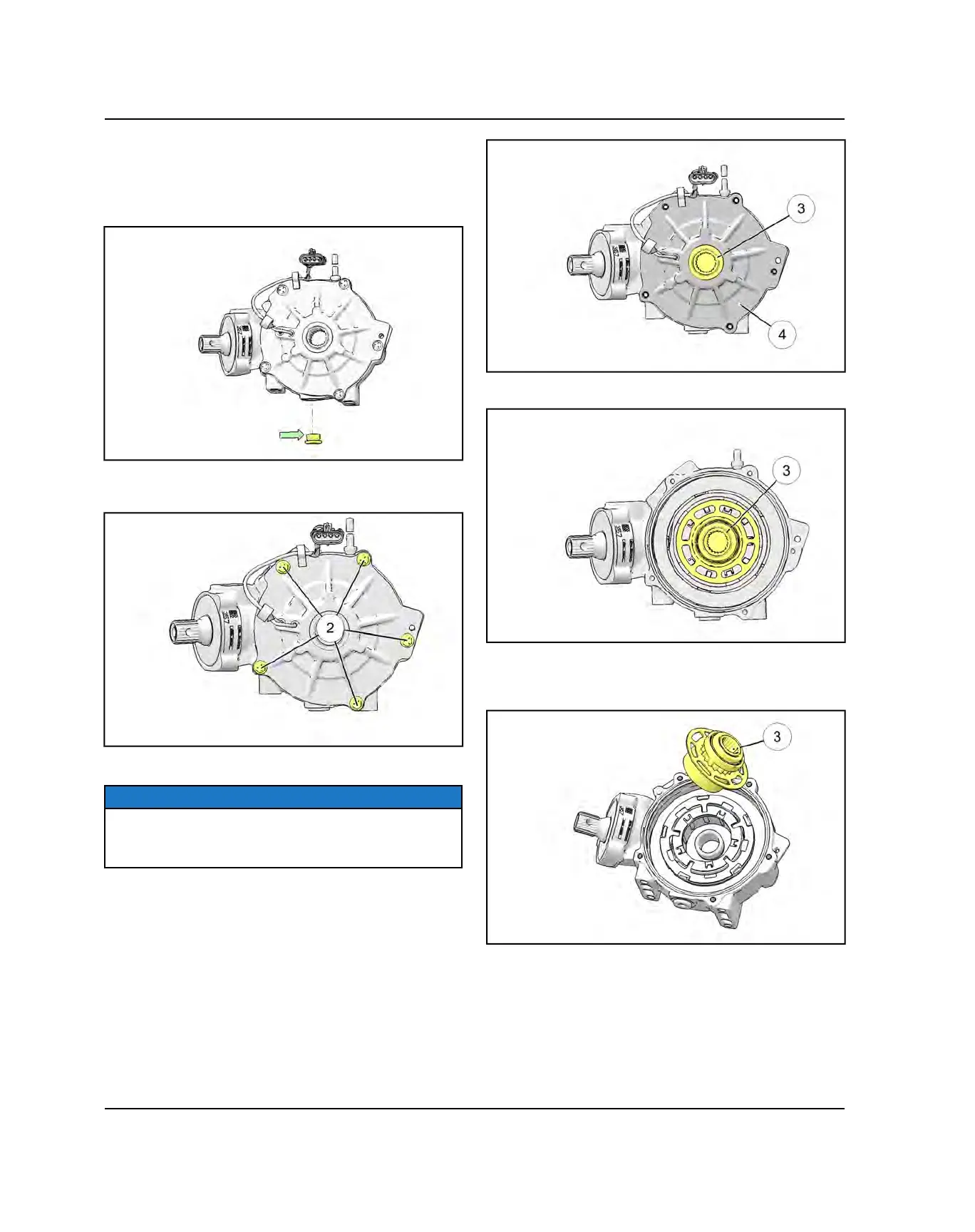

1. Drain and properly dispose of used oil. Remove any
metal particles from the drain plug magnet
q
.
2. Remove bolts
w
retaining the outer cover plate
assembly.
3. Remove the outer cover plate assembly.
NOTE
Press on the output hub assembly
e
while lifting up on
the outer cover plate(4) to prevent removing more than
the cover plate.
4. Remove the output hub assembly
e
.
5. Inspect the bearing and contact surfaces of the output
hub for signs of wear or damage. Replace component
if found to be worn or damaged.
6. Remove and inspect the armature plates
t
. Refer to
“AWD Diagnosis” for detailed inspection process.
