12 VOLT AUXILIARY POWER OUTLET
VOLTAGE LEVEL: 14.0 VDC
LOCATION: Dashboard

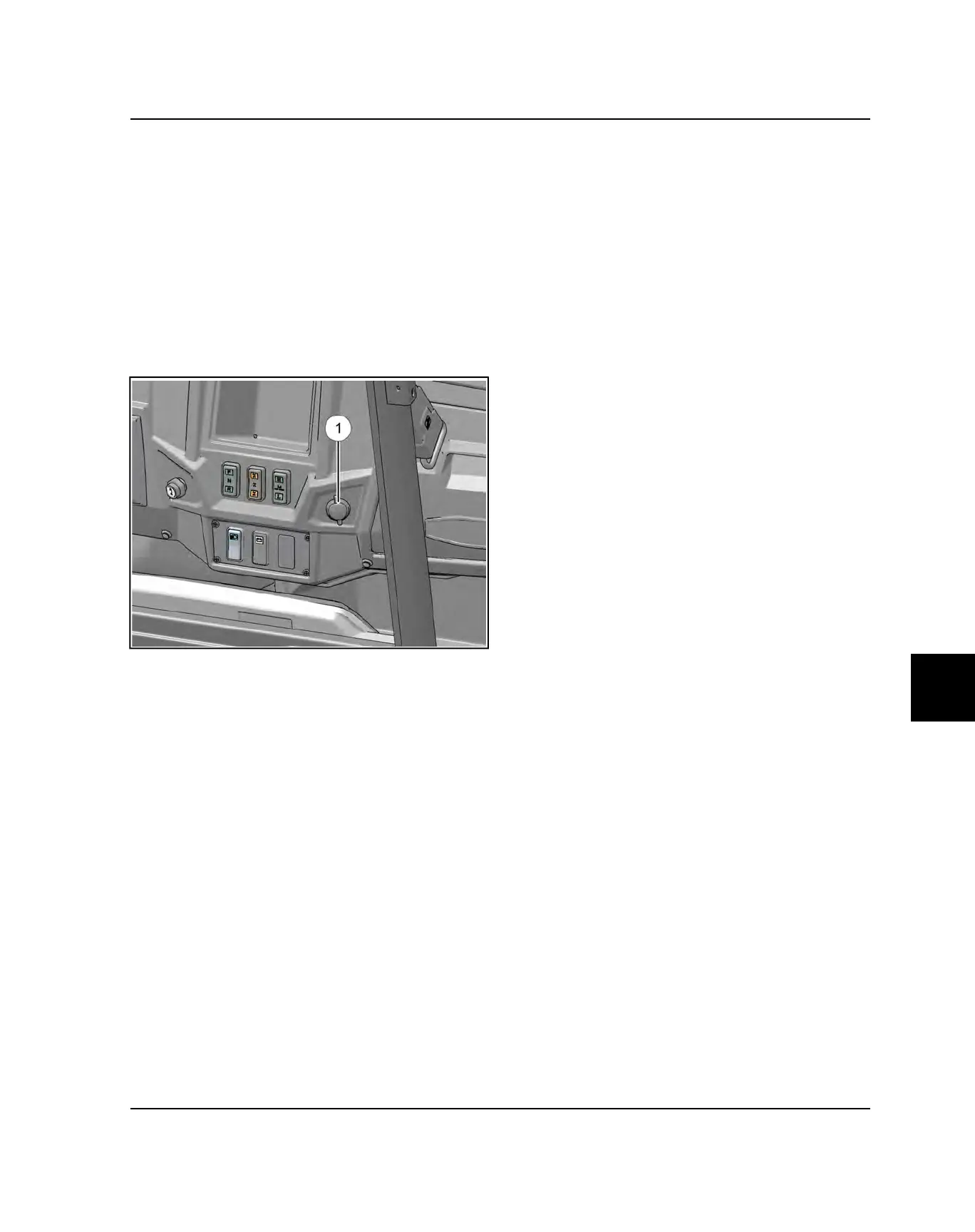

OVERVIEW: The 12-volt receptacle (1) is wired with the
accessory terminal board. The dash mounted receptacle
and the 12 volt terminal board are on the same (10A
ACCY) fuse in the fuse box (10 amps total current
capacity shared between switched accessory power
locations and constant power terminal). Terminal A4 in
fuse box is power to OR/WH ACCY switched power
wires leading to the terminal board and receptacle.
SYSTEM WIRING DIAGRAM REFERENCE: See14.0
Volt System Wiring Diagram, page 8.28 .
