4
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
4.11

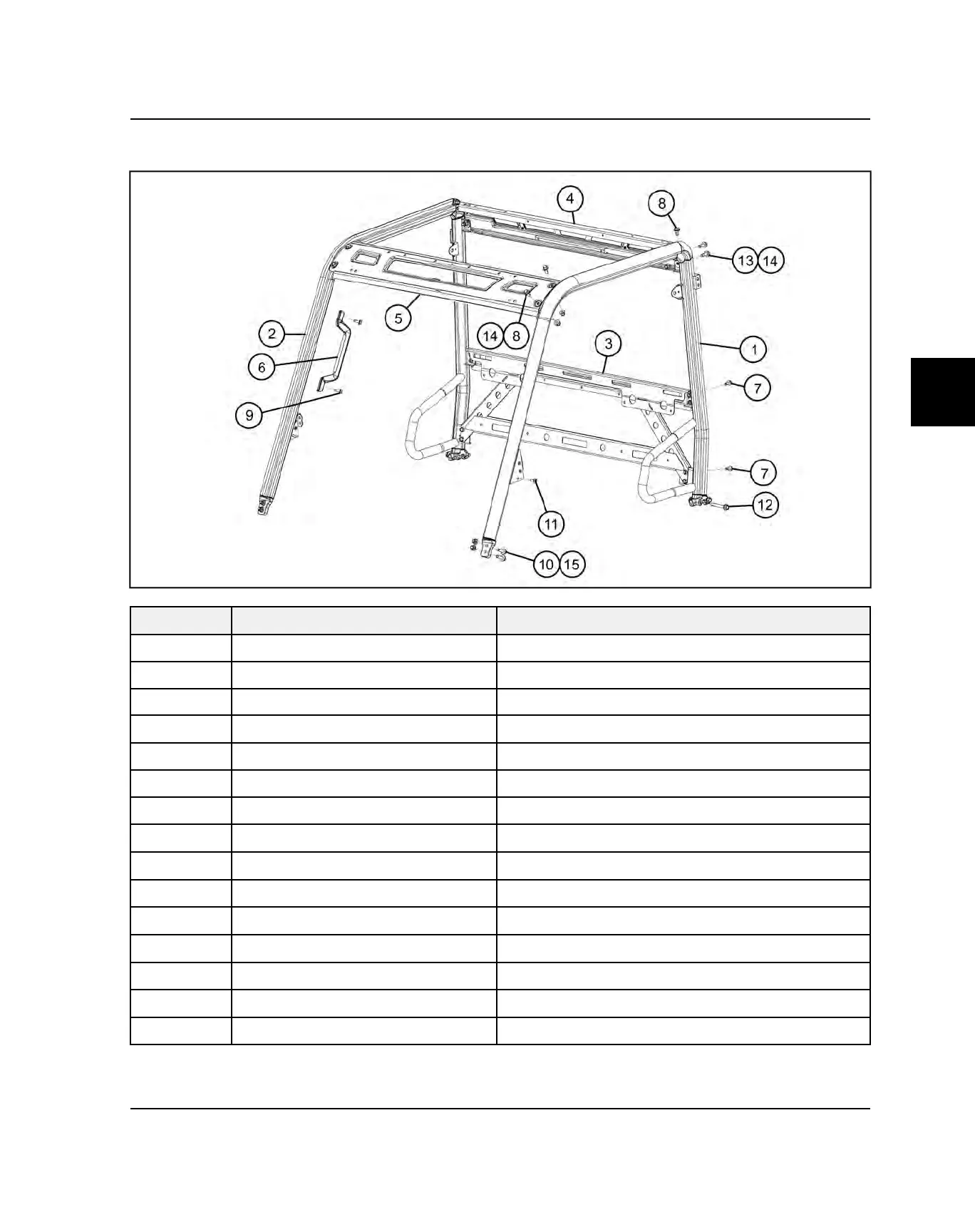

CAB FRAME EXPLODED VIEW
NUMBER PART DESCRIPTION
TORQUE (IF APPLICABLE)
q
Cab Frame, LH
-
w
Cab Frame, RH
-
e
Cab Frame, Lower / Rear
-
r
Cab Support, Rear -
t
Windshield Mount, Upper -
y
Grab Handle
-
u
Bolt - M8 x 1.25 x 20 (QTY.8) 18 ft-lb (24 Nm)
i
Bolt - M10 x 1.5 x 20 (QTY.6) 36 ft-lb (49 Nm)
o
Bolt - M8 x 1.25 x 20 (QTY.2) 18 ft-lb (24 Nm)
a
Screw - M10 x 1.25 x 30 (QTY.4) 36 ft-lb (49 Nm)
s
Screw - M6 x 1.0 x 25 (QTY.2) 8 ft-lb (11 Nm)
d
Screw - M10 x 1.5 x 75 (QTY.4) 36 ft-lb (49 Nm)
f
Screw - M10 x 1.5 x 30 (QTY.4) 36 ft-lb (49 Nm)
g
Nut - M10 x 1.5 (QTY.6) -
h
Nut - M10 x 1.25 (QTY.4) -
BODY / STEERING / SUSPENSION
