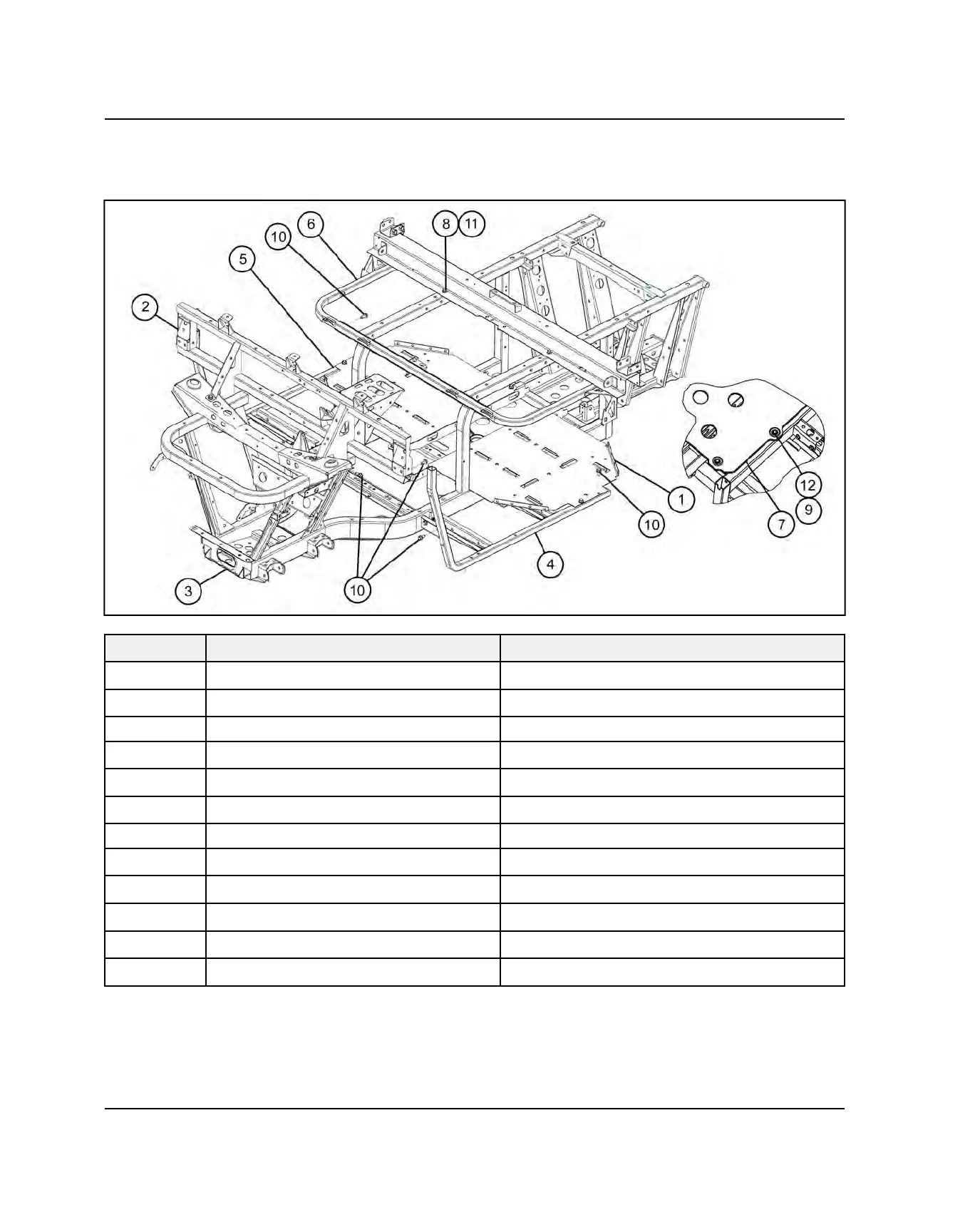

EXPLODED VIEWS
CHASSIS / MAIN FRAME / BUMPER
NUMBER PART DESCRIPTION
TORQUE (IF APPLICABLE)
1 Battery Tray
-
2 Cab Support
-
3 Main Frame
-
4
Floor Support, Left
-
5
Floor Support, Right
-
6 Seat Base, Cab Support
-
7
Skid Plate
-
8
Screw - M8 x 1.25 x 55 (QTY.4) 22 ft-lbs (29.8 Nm)
9
Screw - 1/4 - 20 x 5/8 (QTY.13) 8 ft-lbs (10.8 Nm)
10 Bolt - M8 x 1.25 x 20 (QTY.32) 8 ft-lbs (10.8 Nm)
11
Nut - M8 x 1.25 (QTY.4) 22 ft-lbs (29.8 Nm)
12
Washer, Skid Plate (QTY.13)
-
