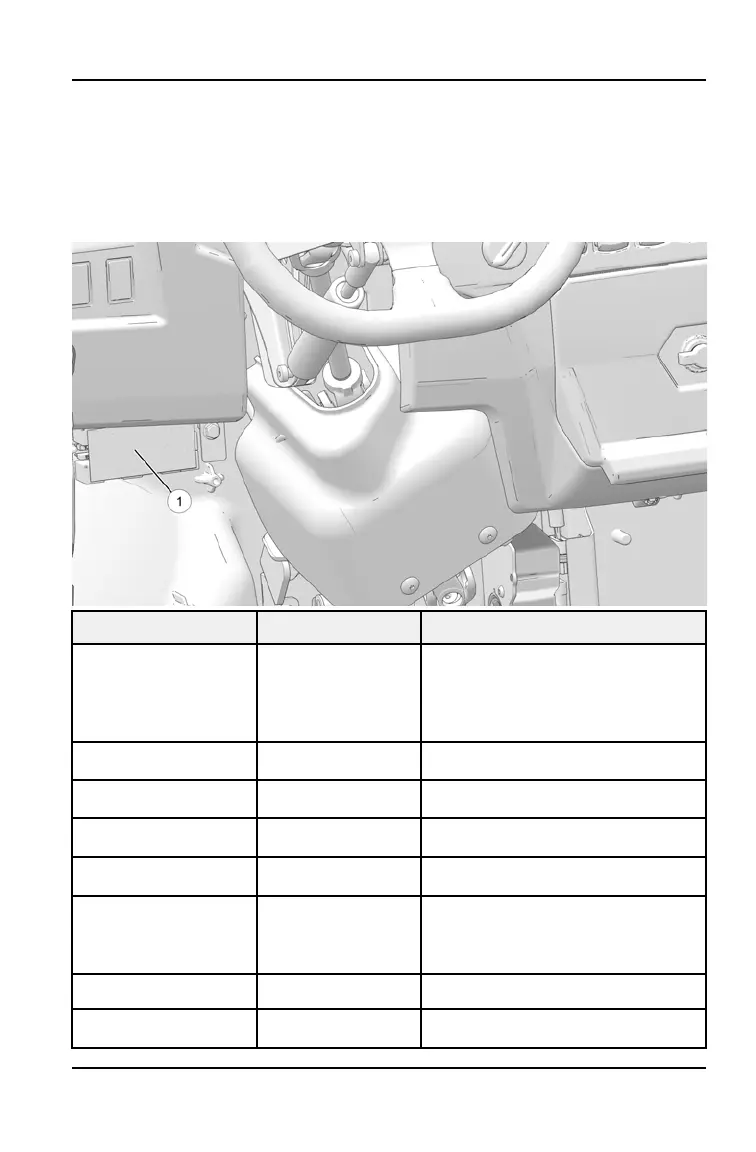

FUSE / RELAY CENTER
If the engine stops or will not start, if the power steering stops working (if
equipped), or if you experience other electrical failures, a fuse may need
replacement. Locate and correct any short circuits that may have caused the
blown fuse, then replace the fuse. The fuse/relay center
q
is located below and
to the left of the steering wheel. The fuse for the engine cooling fan is an
external fuse in a holder on top of the fuse box.
LABEL VALUE FUNCTION
FAN 50A Fuse
(separate fuse
holder, on top of
fuse box)
Engine Cooling Fan
WATER 7.5A Fuse Water Pump
FUEL 7.5A Fuse Fuel Pump
FUEL (EVAP ONLY) 10A Fuse Fuel Pump
TERM ACCY 10A Fuse Terminal Block Accessory
INST ACCY 7.5A Fuse Diagnostic Accessory, Interior
LED Light, Display Accessory
(optional)
SOCKET 10A Fuse Socket
EPS 30A Fuse Power Steering
153
MAINTENANCE
