HEADLIGHT BEAM ADJUSTMENT
The headlight beam can be adjusted slightly upward or downward and to the left
or right.

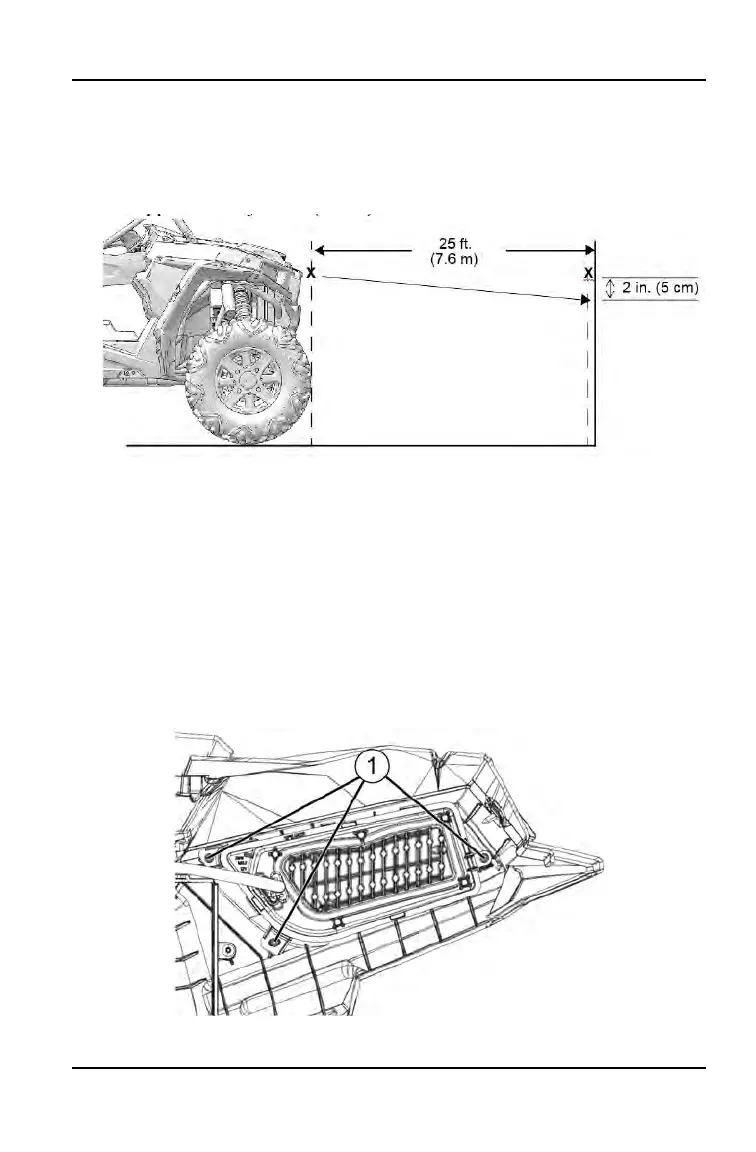

1. Position the vehicle on a level surface. The headlight should be
approximately 25 ft. (7.6 m) from a wall.
2. Place the transmission in PARK.
3. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
4. Apply the brakes. Start the engine. Turn the headlights to high beam.
5. Include the weight of a rider on the seat while performing this step. Observe
the headlight aim. As a starting point, the most intense part of the headlight
beam should be 2 inches (5 cm) below the mark on the wall. Adjust to
operator preference.
6. Tighten or loosen the three (3) headlight screws
q
on the rear of the
headlight to adjust the beam upward or downward or to the left or right.
177
MAINTENANCE
