BELT REPLACEMENT / DEBRIS REMOVAL
If a belt fails, always clean any debris from the outlet duct and from the clutch
and engine compartments when replacing the belt.
WARNING
Failure to remove ALL debris when replacing the belt could result in vehicle
damage, loss of control and severe injury or death.
1. Allow hot components to cool before performing this procedure.
2. Remove the engine access panel and thoroughly clean ALL debris from the
engine compartment.
NOTE
Removal of the left rear wheel or shock is not necessary for belt replacement.

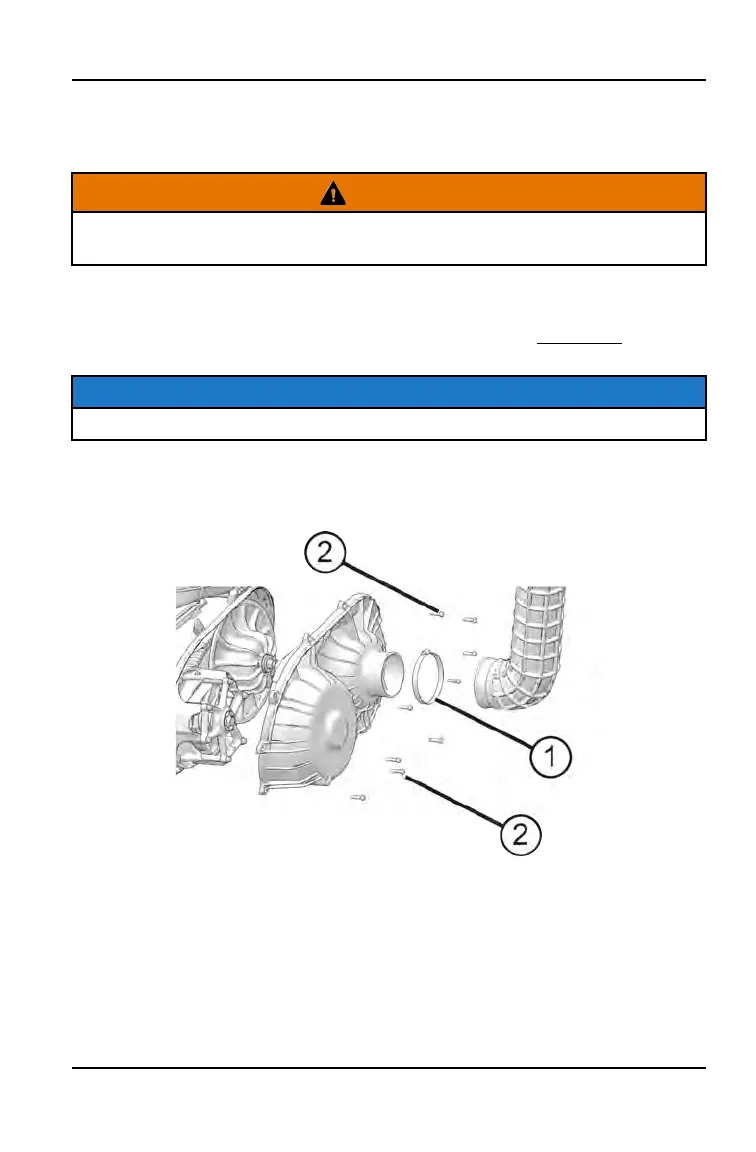

3. Loosen the clamp
q
retaining the PVT inlet duct to the outer clutch cover.
4. Remove the nine (9) clutch cover screws
w
.
5. Maneuver the outer clutch cover outward to access the drive belt.
6. Mark the drive belt direction of rotation so that it can be installed in the same
direction.
159
