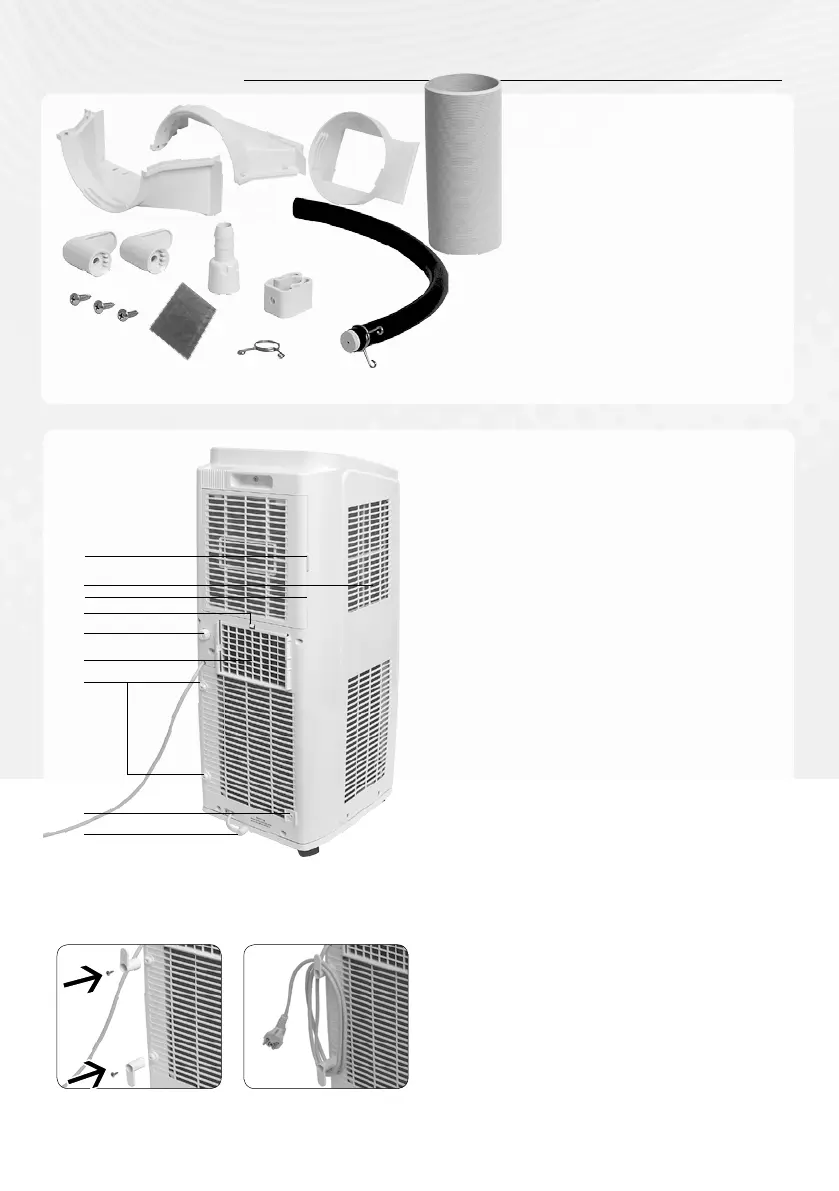

ACCESSORIES
Installation of cable hooks
Fix the cable hooks to the fixating points with
the screws as shown in picture 1.
Wind the power cable around the cable hooks
as shown in picture 2.
More accessories see „Window panel installation“
1
b
2
4
3
5
6
7
8
1 Filter cover
2 Air inlet
3 Middle drainage port
4 Fixing clasp
5 Groove for
heat discharge pipe
6 Fixing points for
cable fixing hooks
7 Fixing point for
drainage pipe clip
8 Lower drainage port
1 Joint parts a and b and c
2 2x Cable hooks
3 3x Screws
4 Carbon filter
5 Drain hose adapter
6 Pipe clip
7 Pipe hoop
8 Rubber stopper
9 Drainage pipe
10 Heat discharge pipe
a
1
2
3
5
4
6
7
8
9
10
c
2. 1.
