protech EVO COMPACT User Manual

Page | 20
CONTROL FUNCTIONS OF THE POST DRIVER
______________________________________________________________________

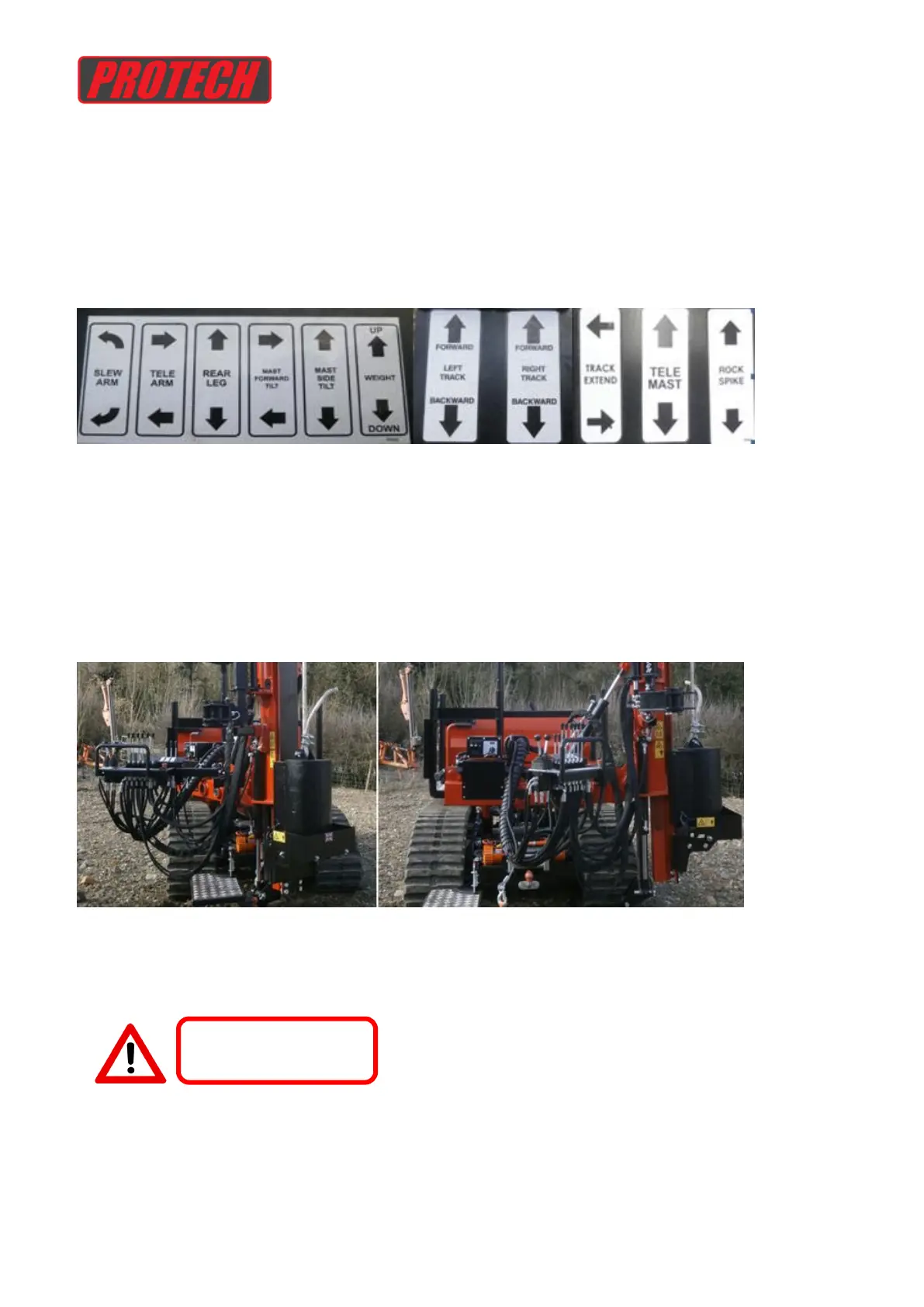

The photo below displays the layout of the control panel. Moving the control lever up or
down operates the function in the direction displayed of the Post Driver.
SLEW ARM
______________________________________________________________________
Operating the slew control lever pivots the slew arm from parallel to the main frame
through 120 degrees.
As the control is mounted to the slew arm, it will move with operation of the slew control.
The operator must work in the control area of the post driver to avoid all trapping zones.
TRAPPING ZONE
CRUSHING ZONE
