TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-24

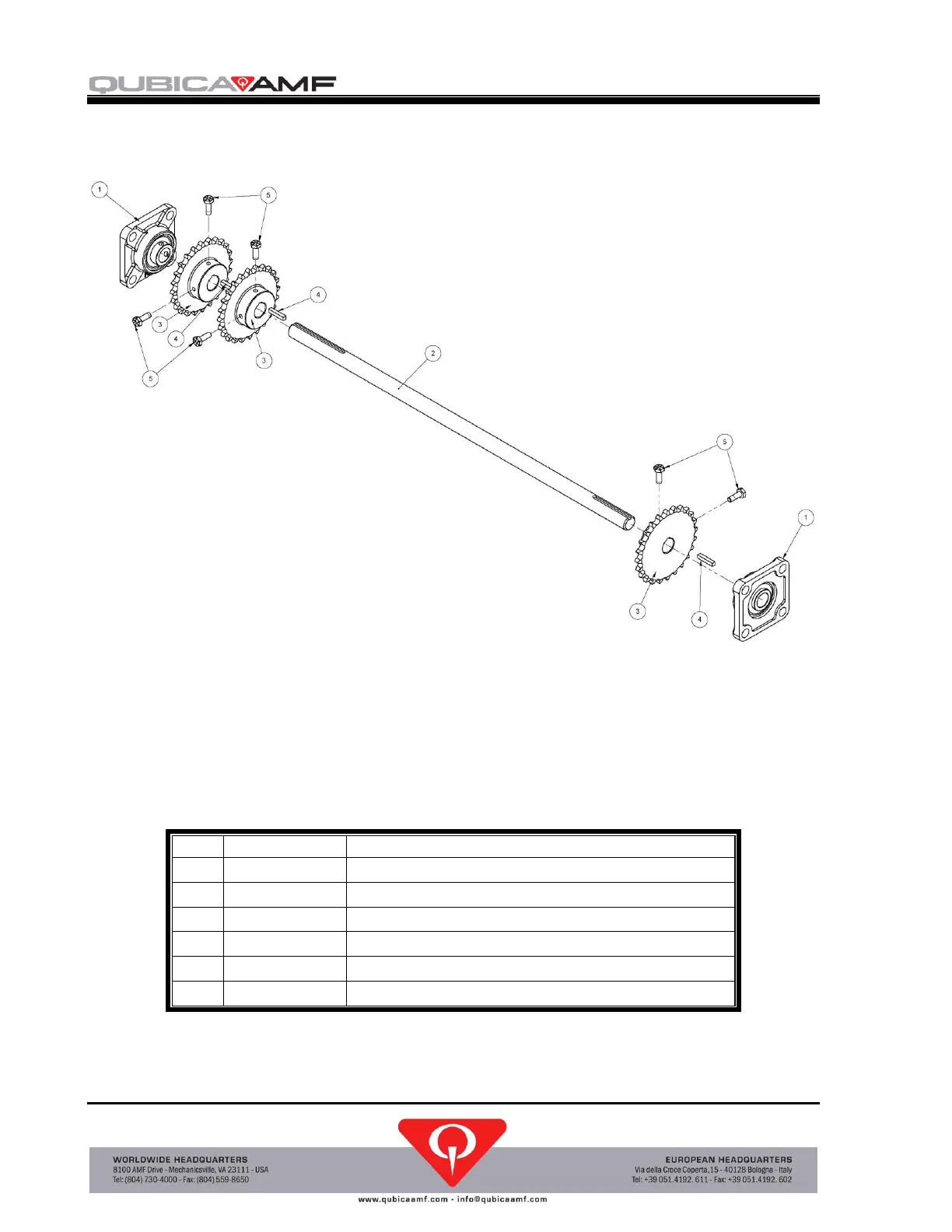

051-090-008 - Rear Shaft Assembly
Rear Shaft Assembly Parts List
Item
Part Number
Description
1
M-0690-21
FLANGE BEARING
2
051-030-008
REAR DRAWBAR SHAFT
3
9102092
3/4 BORE SPROCKET
4
302-2410-00
KEY SQ 0.19 X 1.00 Q
5
809-849-125
HHCS 1/4-20 X 0.75 GR8 BO
6
700-107-910
REMOVABLE THREAD LOCKER (BLUE 242)
