Quincy Compressor QCS Series User Manual

Section II - QCS100

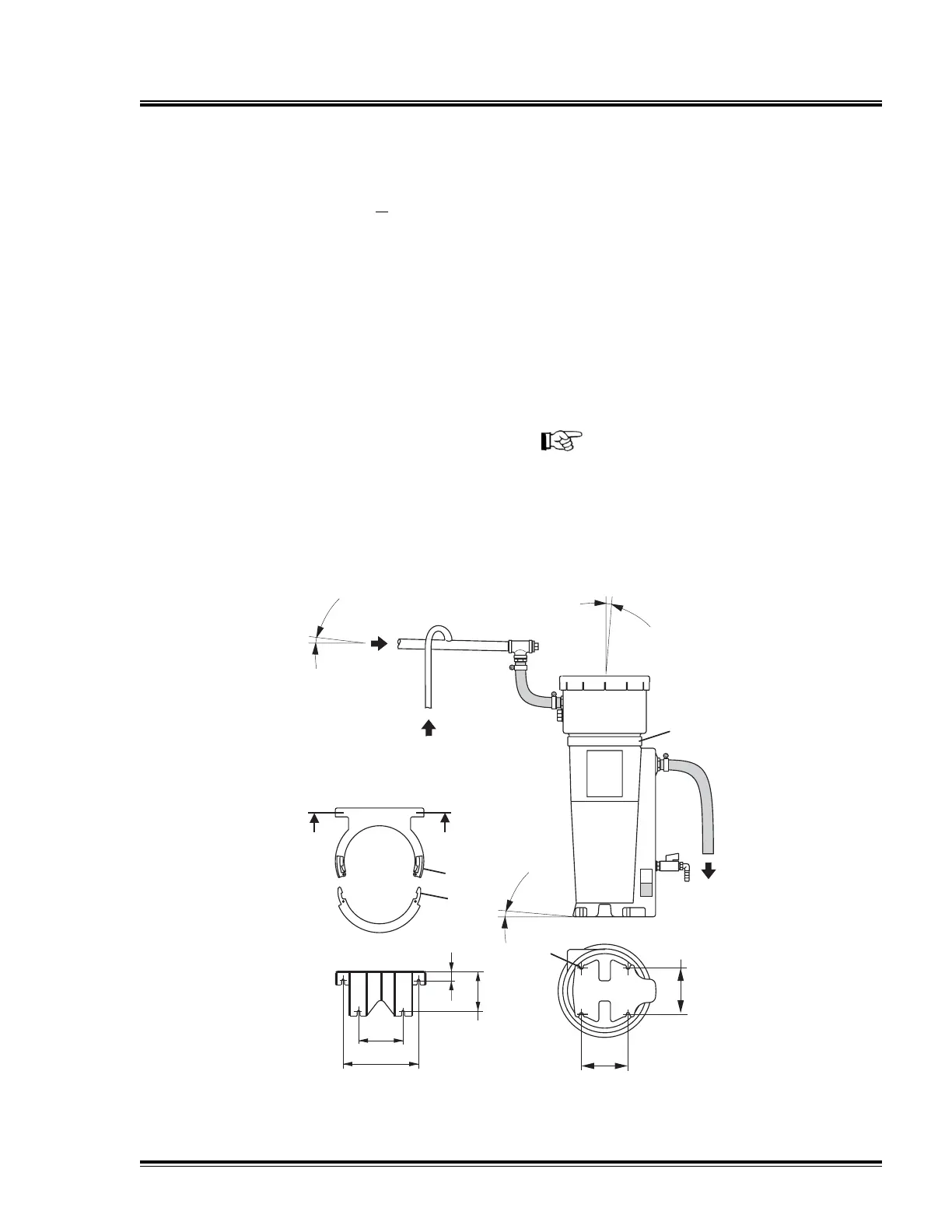

Installation Site
A sealed floor or spill basin (> 10L) is
required. It is crucial to ensure that
untreated condensate or oil cannot get
into the sewer system in the event of
damage.
The floor area must be stable and level
(maximum inclination 1°) to ensure reliable
functioning of the QCS.
Floor Mounted Installation
Use elongated holes of the 4 mounting (1)
feet. Screws and dowels supplied with unit.
Install the QCS unit true to plumb line (±
1°).
Wall Mounted Installation
Install mounting brackets (2)
perpendicularly on the wall. Push in QCS
with mounting area (3) and lock home
clamp (4).
Lay condensate feed line(s) along the wall
with a downward slope.
Lay water discharge line with a continuous
downward slope to the wastewater
discharge point. Install siphon to avoid
disagreeable smells.
notiCe
Shut off condensate drain outlet until
the oil/water separator has been
installed and is ready to be put into
service.
4.21
0.79
3.54
3.94
3.94
A A
3.94
A-A
2
4
±1°
±1°
3
1
>1°
Quincy Compressor-QCS High Efficiency Emulsion Separators 7
