Quincy Compressor QCS Series User Manual

Section IV - QCS900 & QCS1600

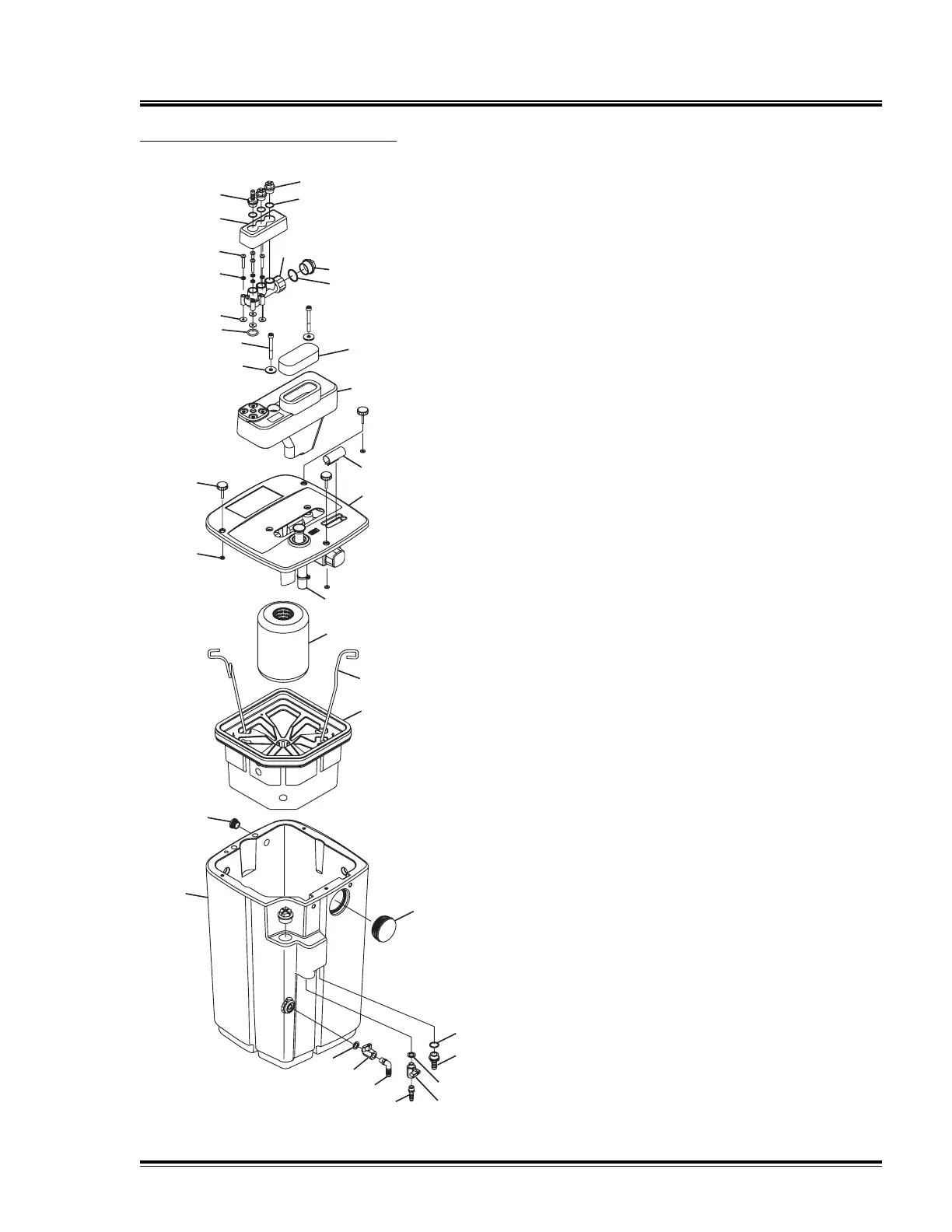

QCS900/1600 Components
1
2
3
4
5
6
7
8
9
10
13
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3031
33
32
29
1 HOSE CONNECTOR, G½"
2 COVER
3 PANHEAD SCREW, M6 X 35
4 WASHER, 18 X 5.8
5 WASHER
6 O-RING, 21.82 X 3.53
7 CHEESEHEAD SCREW, M10X110
8 WASHER
9 SCREW PLUG, G½"
10 O-RING, 18.77 X 1.78
11 SCREW PLUG, G1"
12 O-RING, 30 X 2
13 CONNECTING ADAPTOR
14 FILTERMAT
15 PRESSURE RELIEF CHAMBER
16 TEST TUBE
17 LID
18 STAR GRIP
19 WASHER
20 LEVEL INDICATOR
21 PREFILTER
22 HANDLE
23 MAIN FILTER
24 SCREW PLUG, G½
25 CONTAINER
26 PLUG, Ø70
27 O-RING, 30 X 2.5
28 HOSE CONNECTOR, G1"
29 FLAT GASKET, 13 X 20.5 X 2
30 SAMPLING VALVE
31 HOSE CONNECTOR, R¼"
32 SERVICE VALVE
33 HOSE CONNECTOR, G¼"
Quincy Compressor-QCS High Efficiency Emulsion Separators 17
