Instructions for assembling the male sealed RJ45 connector on an unterminated shielded CAT5e or CAT6
Ethernet cable are found in Appendix: Sealed RJ45 Assembly.
Note: Premade Ethernet Cables
Note: Premade Ethernet Cables
Ethernet cables prebuilt with this connector may be purchased from Rajant (P/N: 06-1000068-030, ES1
Ethernet cables prebuilt with this connector may be purchased from Rajant (P/N: 06-1000068-030, ES1
cable, Ethernet, Cat5e shielded, Outdoor gland, 30
).
cable, Ethernet, Cat5e shielded, Outdoor gland, 30).
2.5 M8 Connector
The BreadCrumb ES1 includes a 5-pin female M8 connector that provides pins to support one USB 2.0 in-
terface and a physical Reset button (e.g. an LED Configuration / Zeroize Keys and Restore Factory Defaults
Switch).
The ES1-5050CS M8 connector is normally covered by a plastic protective cap. To remove the protective
cap, turn the cap counter-clockwise. To replace the protective cap, turn the cap clockwise.
Important
Important
Do not lose plastic protective cap. The ES1-5050CS M8 connector is protected from water only if the pro-
Do not lose plastic protective cap. The ES1-5050CS M8 connector is protected from water only if the pro-
tective cap is closed or a Rajant ES1-5050CS M8 adapter cable is properly installed. The protective cap is
tective cap is closed or a Rajant ES1-5050CS M8 adapter cable is properly installed. The protective cap is
Finecables Enterprise Co. Ltd. part number PCNM8x1.0-2.
Finecables Enterprise Co. Ltd. part number PCNM8x1.0-2.

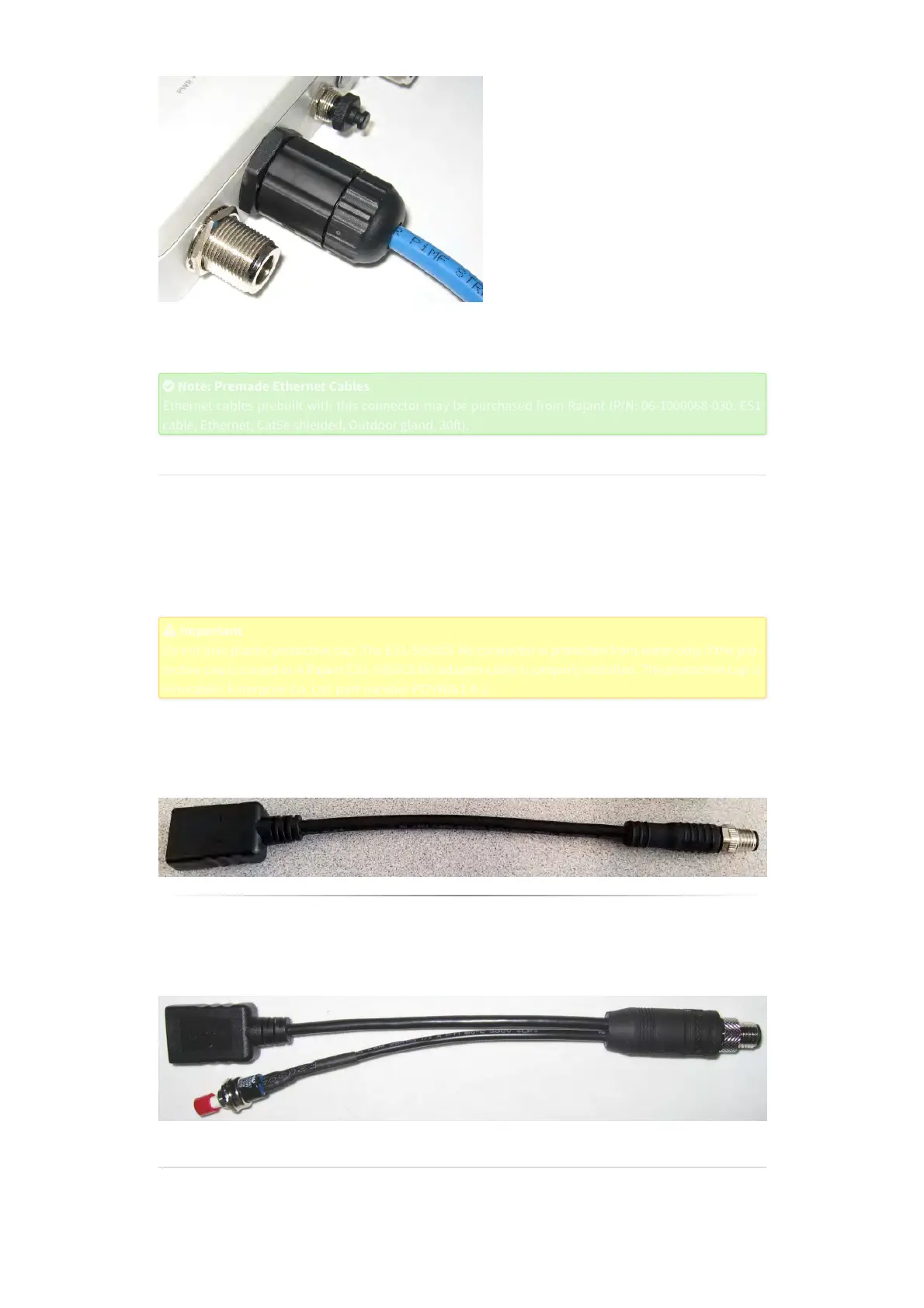

A custom ES1-5050CS M8 male to USB 2.0 female adapter cable (shown in the following figure) provides a
female USB A 2.0 port (Rajant p/n 06-100069-001).
Figure: ES1-5050CS M8 Male to USB 2.0 Female Adapter Cable
A custom ES1-5050CS adapter cable (shown in the following figure) from the M8 male to both a female
USB A 2.0 port and a Reset button is also available from Rajant (Rajant p/n 06-100069-002).
Figure: ES1-5050CS M8 Male to USB 2.0 Female and Reset Button Adapter Cable
2.5.1 M8 Connector Diagrams
In the following three diagrams, the M8 connector on the bottom of the BreadCrumb ES1 enclosure is
viewed with the front of the ES1-5050CS facing up and the bottom of the ES1-5050CS facing the user.
